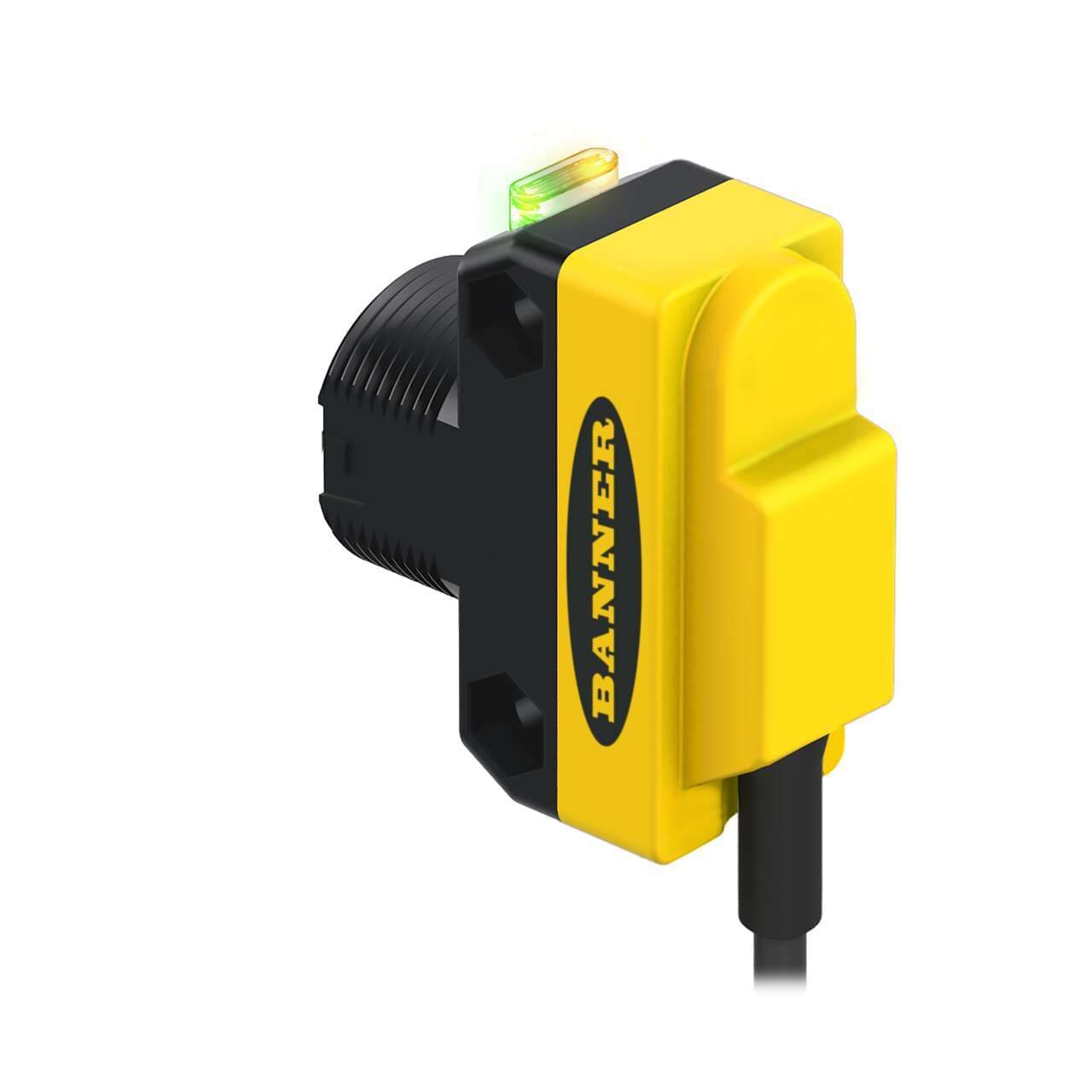

QS186LE12
Banner
Product Lifecycle: Active
Banner Engineering QS186LE12 is a Class 1 laser photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is part of the QS186LE series and is characterized by its opposed (horizontal) system design. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy connection. The QS186LE12 offers a high degree of protection with an IP67 NEMA 6 rating, ensuring durability in various environmental conditions. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, and it is capable of sensing distances up to 15m. It emits a visible red light with a wavelength of 650 nm for efficient detection.

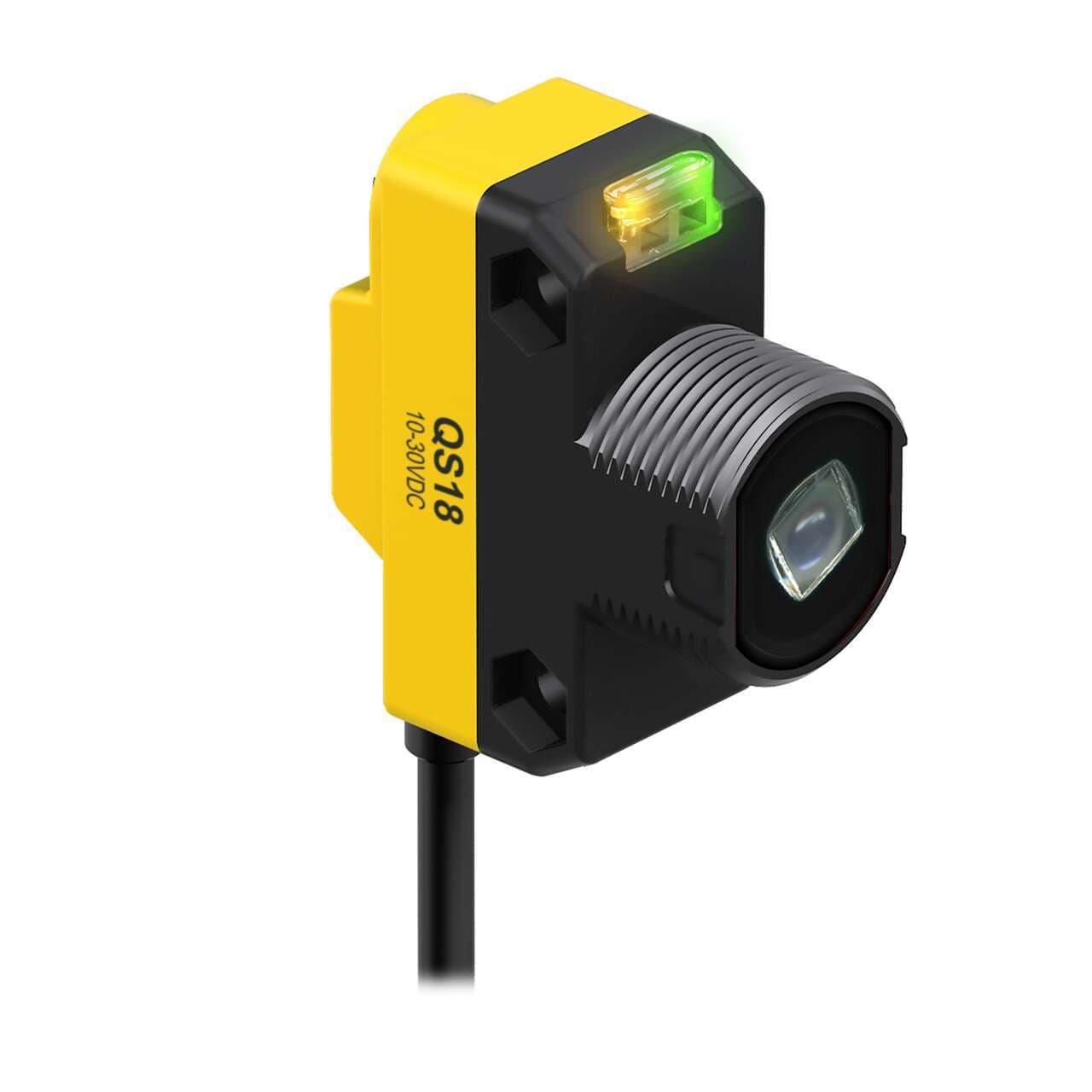

![QS186LE12](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F67d91a1e-1d6e-4fb2-bf39-1166710cc969.jpeg&w=3840&q=75)
Banner Engineering QS186LE12 is a Class 1 laser photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is part of the QS186LE series and is characterized by its opposed (horizontal) system design. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy connection. The QS186LE12 offers a high degree of protection with an IP67 NEMA 6 rating, ensuring durability in various environmental conditions. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, and it is capable of sensing distances up to 15m. It emits a visible red light with a wavelength of 650 nm for efficient detection.
Product details
- Feature: EncapsulatedNo
- Feature: Hazardous AreaNo
- IndicatorLEDs
- Number of Pins4
- DeviceNetNo
- IO LinkNo
- Feature: Quick DisconnectNo
- Feature: Chemical ResistantNo
- Feature: AudibleNo
- Opposed Mode Emitter/ReceiverEmitter
- Feature: Timing (Hold/Delay)No
- Barrel Diameter (mm)18
- AdjustmentsN/A
- Lens MaterialPMMA
- Max Op. Relative Humidity [%]95% @ 50°C
- IP RatingIP67
- NEMA RatingNEMA 6
- Delay at Power-up (ms)250
- Sensing Beam Wavelength650
- Special Feature: Intrinsically SafeNo
- Special Feature: Water DetectionNo
- Repeatability (µs)N/A
- Special Feature: Remote TeachNo
- Output response time (ms)N/A
- Quick Disconnect TypeNo QD
- Max Op. Temp. (°C)50
- Min Op. Temp. (°C)-10
- OperationN/A
- ConnectionCable
- OutputsN/A
- Max Sensing Distance (mm)15000
- Power Supply/Supply Voltage10-30 V dc
- Sensing Mode (General)Opposed
- Primary Housing MaterialABS
- Laser ClassificationClass 1
- Small Visible SpotLaser
- Housing StyleRectangular w/M18 Mount
- PowerDC
- Sensing Mode (Detailed)Laser Emitter
- Sensing BeamVisible Red Laser
- Cable Length (m)2
- Sub-range nameQS186LE series
- Primary brandBanner Engineering
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength650 nm
- Mounting modeThreaded mount
- Ambient air temperature for operation-10...+50 °C
- Product series / family nameWORLD-BEAM series
- Light ColorVisible red
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Materialthermoplastic housing PMMA lns.
- Main functionSensor (Photo-electric)
- FunctionsClass 1 Laser photo-electric emitter green LED (power ON) yellow LED (light sensed)
- Thread sizeM18
- Order code / Manufacturer SKU02758
- Designopposed (horizontal) system
- Degree of protectionIP67 NEMA 6
- ShapeRectangular
- Compliant with standard(s)cURus CE
