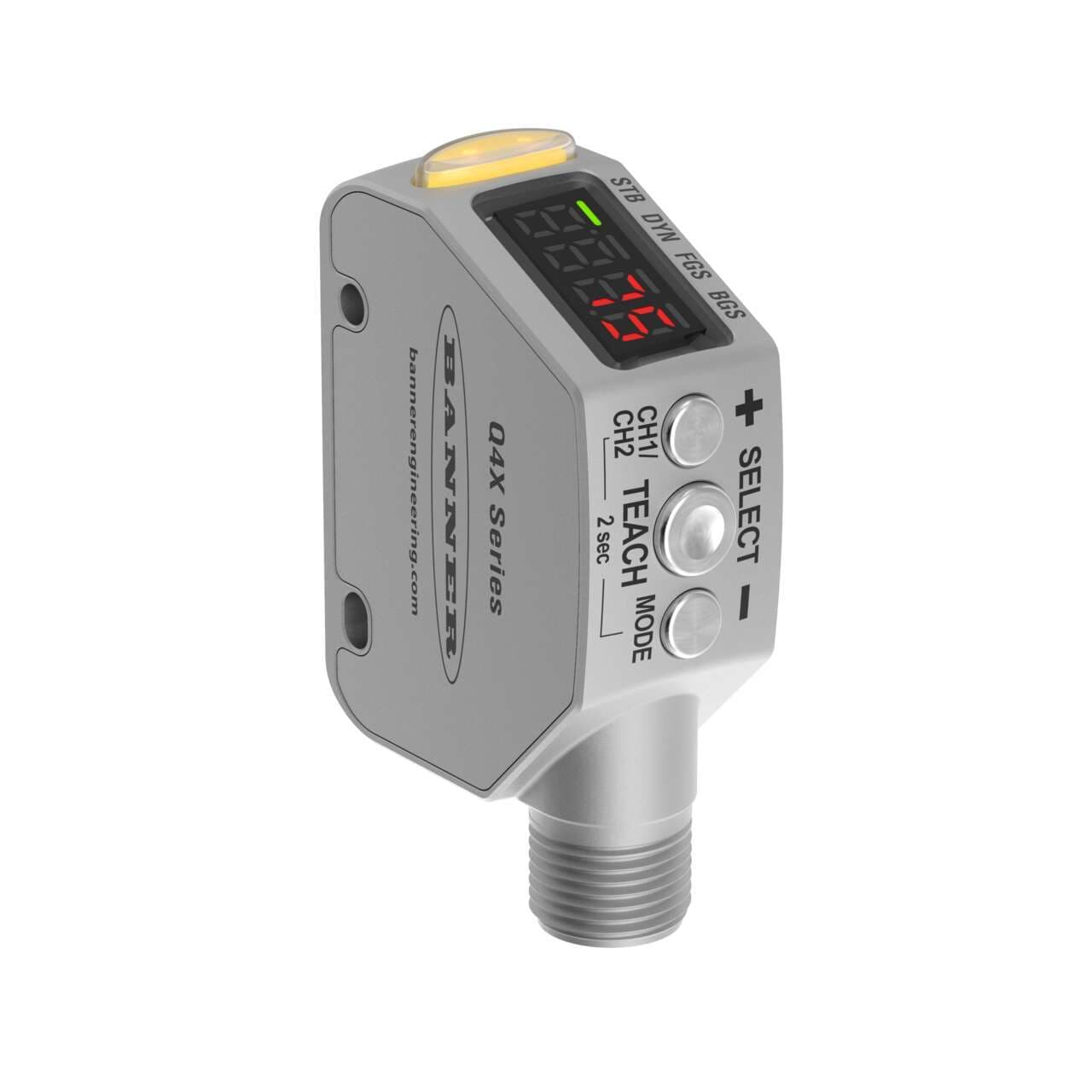

Q4XFKLAF610-Q8 Banner Transformers

Product Details

• Weight
  136.0776 g
• Country Of Origin
  US
• Profibus
  No
• SSI
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• RS-485
  No
• RS-232
  No
• IO Link
  Yes
• PROFINET
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Feature: Clear Object Detection
  Yes
• Feature: Chemical Resistant
  Yes
• Common Ethernet Protocol
  No
• Feature: Ecolab Certified
  Yes
• Feature: Remote Teach
  Yes
• Power/Current Consumption (exclusive of load)
  < 700 mW
• Feature: Washdown Rated
  Yes
• Max Off-state Leakage Current (µA)
  PNP: <50 @ 30 V dc; Push/Pull: N/A
• Laser Control
  Yes
Minimum Response Time (ms)
2
Alarm Output (mA)
100
Discrete Output Hysteresis (mm)
Automatically adjusted
Spot Size (@ Reference Distance)
1.9 mm x 1.0 mm @ 610 mm
Minimum Window Size (mm)
0.4
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Min Operating Temperature (°C)
-10
Discrete (Switched) Outputs
1 NPN/PNP Configurable; 1 PNP
Max Operating Temperature (°C)
50
RS-422
No
Feature: Timing (Hold/Delay)
Yes
Max Ambient Light (Lux)
5000
Warm-up Time (minutes)
10
Window Material
Acrylic
Storage Temperature (°C)
-25 to 75
IP Rating
IP67; IP68; IP69
Max Discrete (Switched) Output (mA)
100
Output Protection
Protected against continuous overload and short circuit
Number of Pins
4
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Output Saturation Voltage PNP Outputs
<2 V
Temperature Effect (mm/°C)
+/- 0.05 mm/°C from 35 to 135 mm, +/- 0.35 mm/°C at 310 mm, +/- 0.85 mm/°C at 610 mm
Adjustments
Push Button; Remote Teach
Sensing Beam Wavelength (nm)
655
Delay at Power-up (ms)
1500
Power Supply
10-30 V dc
Minimum Sensing Distance (mm)
35
Quick Disconnect Type
M12 (Euro)
Analog Resolution/Discrete Repeatability
35 mm to 110 mm: +/-0.5; 110 mm to 610 mm: +/- 0.5% of range
Connection
Integral QD
Max Sensing Distance (mm)
610
Primary Housing Material
Stainless Steel
Indicator
Display; LED(s)
Input/Output
Discrete
Laser Classification
Class 1
Sensing Mode (Detailed)
Background/Foreground Suppression
Sensing Mode (General)
Proximity
Max Measurement Range
>500 mm - <=1000 mm
Power
DC
Device Type
Sensor
PC Configurable
No
Housing Style
Rectangular
PFM Output
Yes
Sensing Beam
Visible Red Laser
Sub-range name
Q4X
Shape
Rectangular
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Wavelength
655 nm
Digital outputs
1 x digital output (PNP/NPN transistor) (with IO-Link Communication) 1 x digital output (PNP transistor)
Degree of protection
IP67 IP68 IP69K
Compliant with standard(s)
CE
Main function
Sensor (Photo-electric)
Design
background / foreground suppression system dual discrete output and IO Link
Connection type
Pre-equipped with 4-pin Euro-style M12 connector
Equivalent to
Q4XFKLAF610Q8
Product series / family name
Q series
Functions
Class 1 Laser adjustable-field photo-electric sensor TEACH mode
Light Color
Visible class 1 red Laser
Communication protocol
IO-Link
Ambient air temperature for operation
-10...+50 °C
Display
LED 4 digits display
Sensing distance
35...610mm
Thread size
M18
Material
Stainless steel housing Acrylic LED window
Order code / Manufacturer SKU
801424
Mounting mode
Flush face housing
Protection functions
Overload Short-circuit
Chemical resistance
chemical-resistant

Related documents Q4XFKLAF610-Q8 Specs
