Q45AD9FQ
Banner
Product Lifecycle: Active

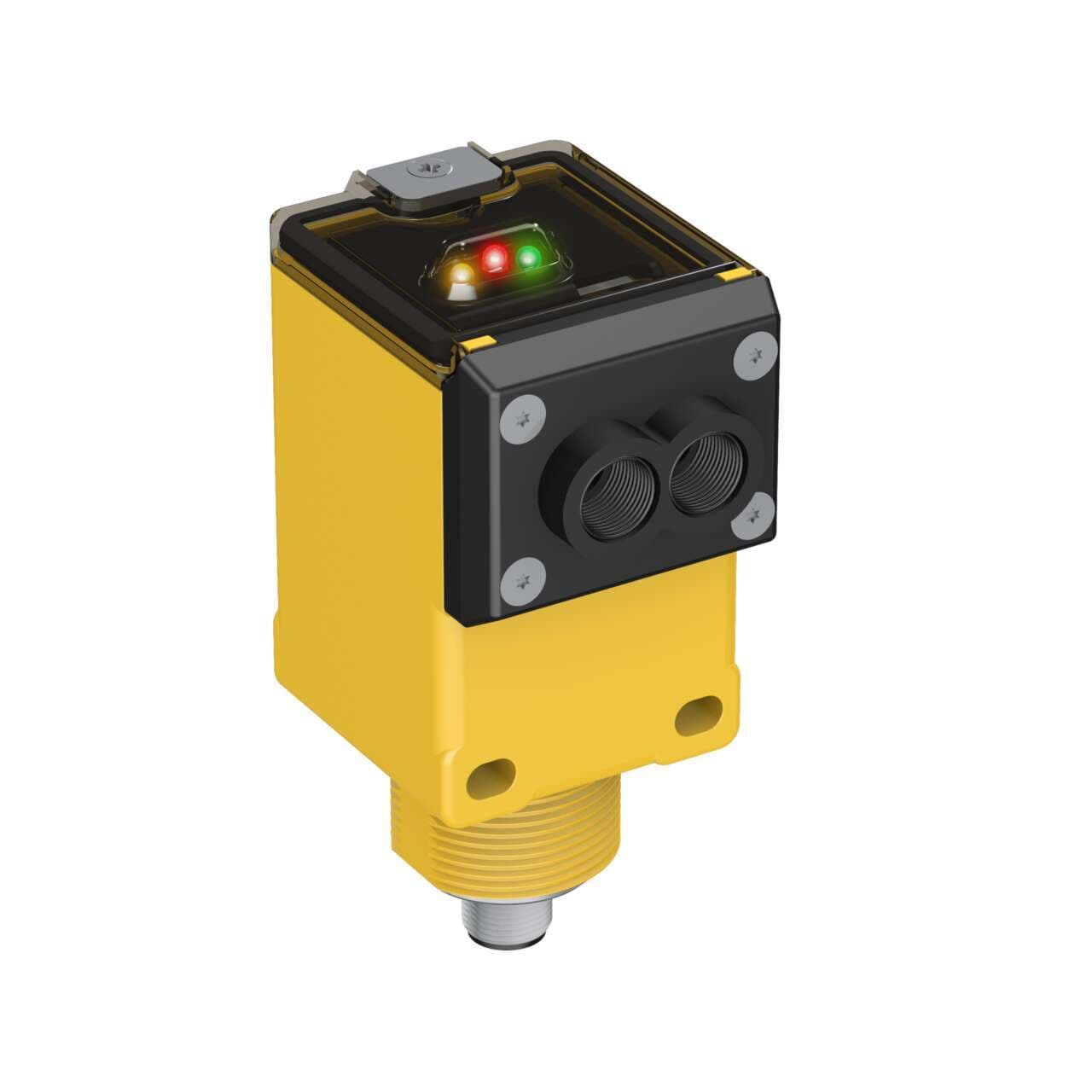

Banner Engineering Q45AD9FQ is an intrinsically-safe photo-electric fiber optic sensor designed for precision detection tasks. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. The sensor is equipped with a potentiometer for easy adjustment and connects via a pre-equipped 4-pin Euro-style M12 connector. Part of the Q45AD9 series, it boasts a high degree of protection rated at IP67 NEMA 6P, ensuring durability in harsh environments. The Q45AD9FQ operates on a supply voltage of 5Vdc to 15Vdc, with a nominal voltage of 12Vdc. Its rectangular shape is constructed from a thermoplastic housing with glass fiber, and it utilizes infrared light with a wavelength of 880 nm for detection. The sensor provides one digital output (NAMUR) and has a rapid response time of 5ms.
![Q45AD9FQ](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fd7adc2d9-97e2-452f-93f6-4c1a7380296e.jpeg&w=3840&q=75)
Banner Engineering Q45AD9FQ is an intrinsically-safe photo-electric fiber optic sensor designed for precision detection tasks. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. The sensor is equipped with a potentiometer for easy adjustment and connects via a pre-equipped 4-pin Euro-style M12 connector. Part of the Q45AD9 series, it boasts a high degree of protection rated at IP67 NEMA 6P, ensuring durability in harsh environments. The Q45AD9FQ operates on a supply voltage of 5Vdc to 15Vdc, with a nominal voltage of 12Vdc. Its rectangular shape is constructed from a thermoplastic housing with glass fiber, and it utilizes infrared light with a wavelength of 880 nm for detection. The sensor provides one digital output (NAMUR) and has a rapid response time of 5ms.
Product details
- Feature: Hazardous AreaYes
- Housing MaterialThermoplastic
- IO LinkNo
- Feature: AudibleNo
- Special Feature: Bussable PowerNo
- Feature: Timing (Hold/Delay)No
- Indicator Display TypeIndicator LEDs
- Minimum response time (ms)5
- AdjustmentsPotentiometer
- Power Supply/Supply Voltage5-15 V dc
- Intrinsically SafeYes
- Special Feature: Remote TeachNo
- Min Op. Temperature (°C)-40
- IP RatingIP67
- Max Op. Relative Humidity (%)90% @ 50°C
- Repeatability (µs)N/A
- NEMA RatingNEMA 6P
- Output Type (Specific)Single Discrete
- Max Op. Temperature (°C)70
- Number of Pins4
- PowerDC
- Quick Disconnect TypeM12 (Euro)
- ConnectionIntegral QD
- Fiber TypeGlass Only
- Input/OutputDiscrete
- OutputConstant Current
- Color LED - AmplifiersInfrared
- Primary Housing MaterialThermoplastic
- Housing StyleRectangular
- Main functionSensor (Photo-electric)
- Light ColorInfrared (IR)
- Primary brandBanner Engineering

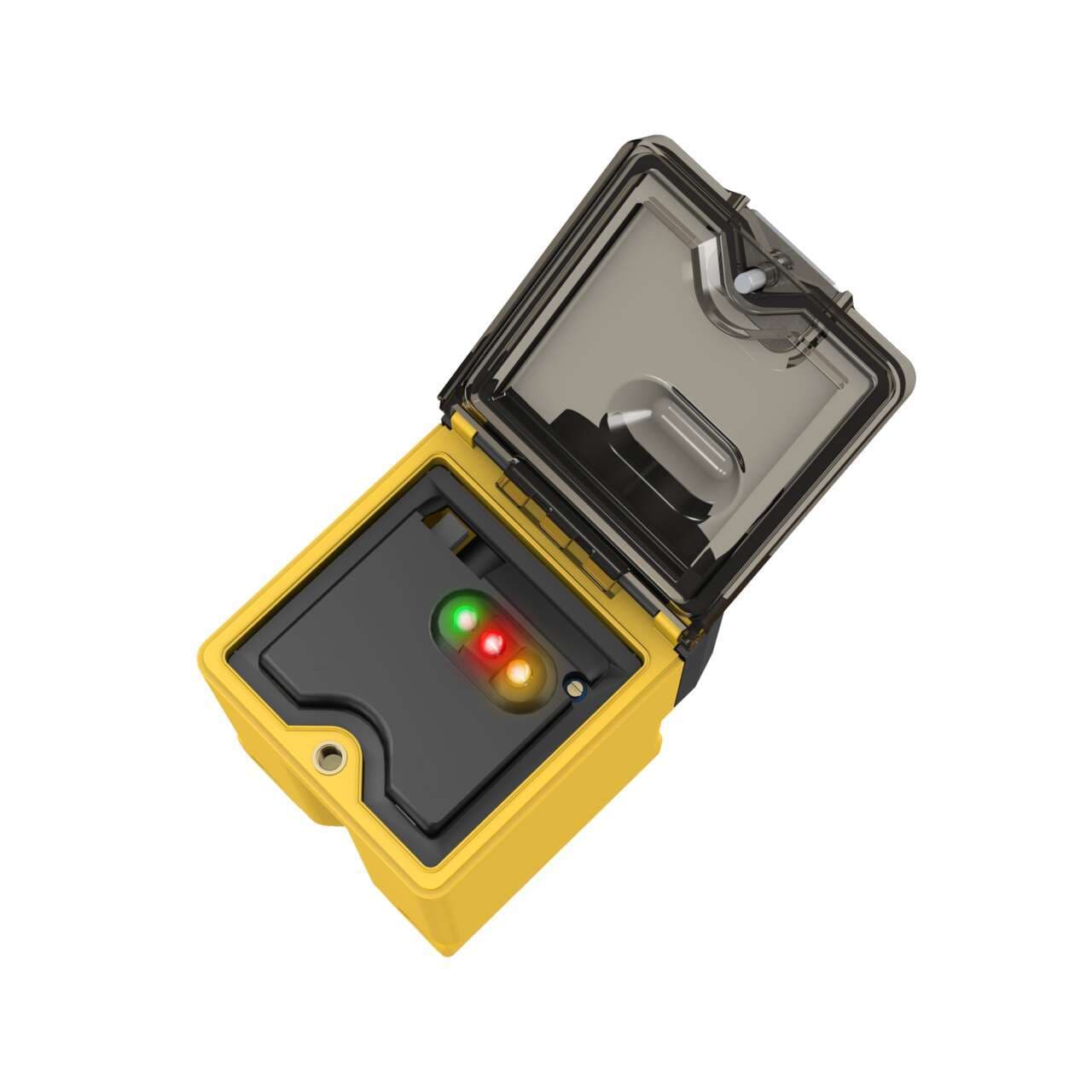

- FunctionsIntrinsically-safe photo-electric fiber optic sensor green LED (power ON) red LED (signal) yellow LED (output state) potentiometer adjustment
- Connection typePre-equipped with 4-pin Euro-style M12 connector
- Response time5ms / 0.005 s
- Order code / Manufacturer SKU37631
- Sub-range nameQ45AD9
- Thread sizeM30
- Mounting modeThreaded mount
- Materialthermoplastic housing Glass fiber
- Product series / family nameQ series
- Wavelength880 nm
- Degree of protectionIP67 NEMA 6P
- Supply voltage (DC)5Vdc-15Vdc (12Vdc nom.)
- Digital outputs1 x digital output (NAMUR)
- Ambient air temperature for operation-40...+70 °C
- ShapeRectangular
- Compliant with standard(s)Ex FM cCSAus CE
