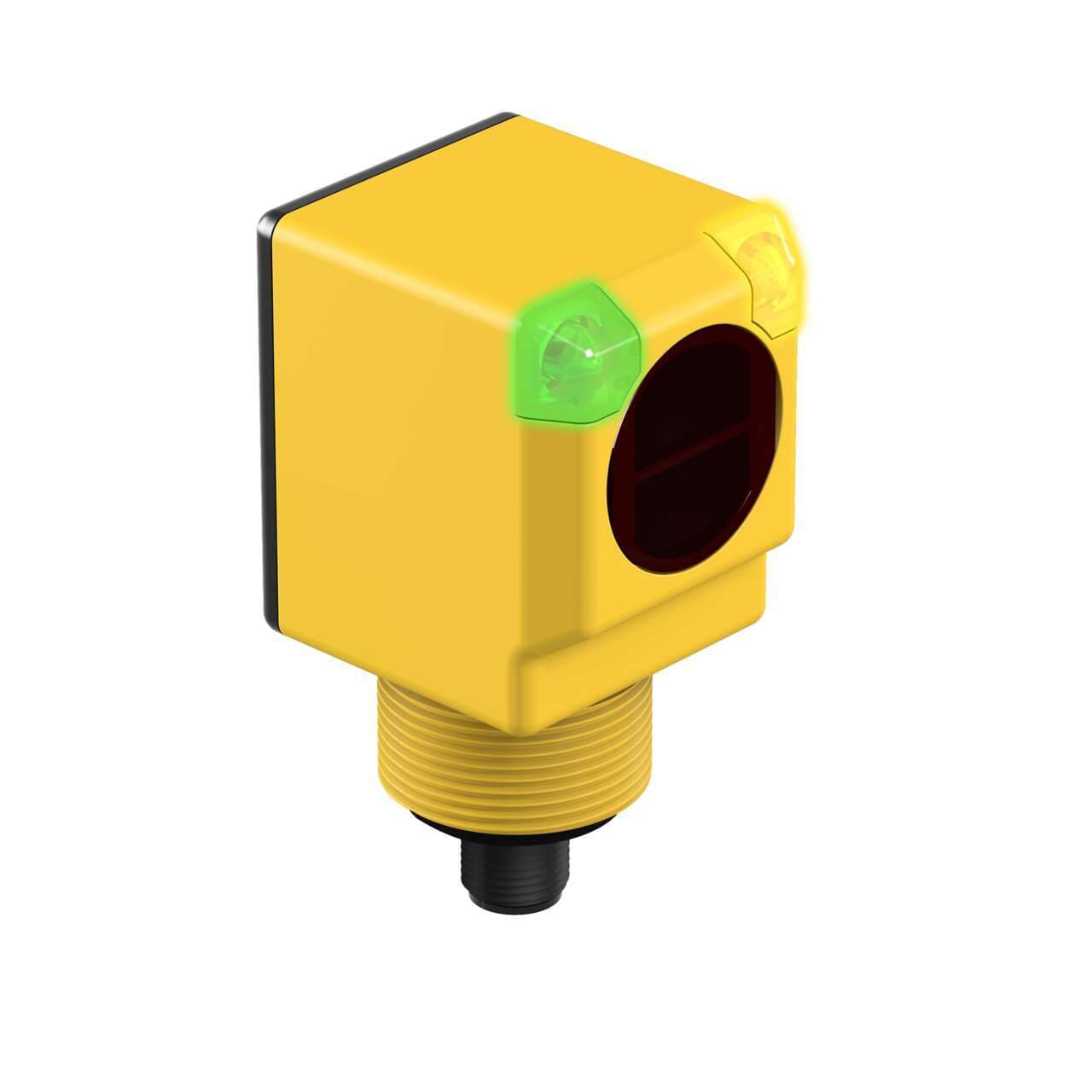

Q40RW3LPQ3 Banner Proximity Sensors
Part#:Q40RW3LPQ3
Alt. Part#:36980
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM Q40 Series: Right-Angle Polarized Retro; Range: 6 m; Input: 20-250 V ac; Output: Dark Operate; QD uses Turck cordset: WAKW4.5T-2
Product Details
- Weight 163.29312 g
- Country Of Origin US
- Sub-range name Q40 AC series
- Light Color Visible red
- Response time 16ms / 0.016 s
- Degree of protection IP69K NEMA 6P
- Wavelength 680 nm
- Operating mode Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Main function Sensor (Photo-electric)
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Thread size M30
- Order code / Manufacturer SKU 36980
- Product series / family name EZ-BEAM series
- Primary brand Banner Engineering
- Functions Polarized photo-electric sensor green LED (power ON) amber LED (output state)
- Sensing distance 6m
- Compliant with standard(s) cULus cCSAus CE
- Material thermoplastic housing
- Design retro-reflective mode
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Shape Rectangular
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Outputs Solid-State AC Switch
- Number of Pins 5
- Feature: Washdown Rated Yes
- IO Link No
- Repeatability (µs) 4000
- Feature: Timing (Hold/Delay) No
- Sensing Beam Visible Red LED
- Operation Dark Operate
- Quick Disconnect Type M12 (Euro)
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Polarized
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 30
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 6000
- Special Feature: Water Detection No
- Lens Material Polycarbonate
- DeviceNet No
- Power Supply/Supply Voltage 20-250 V ac
- Output response time (ms) 16
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (General) Retroreflective
- Connection Integral QD
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Hazardous Area No
- Housing Style Rectangular
- Min Op. Temp. (°C) -40
- IP Rating IP69
- Feature: Ecolab Certified Yes
- Power AC
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Input/Output Solid-State AC Switch
- Special Feature: Remote Teach No
- Indicator LEDs
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q40RW3LPQ3 on Powermatic Associates is $168.00. Order now.
About the product
Banner Engineering Q40RW3LPQ3 is a polarized photo-electric sensor designed for retro-reflective mode operation. It features an M30 threaded mount for secure installation and is equipped with a 5-pin Euro-style M12 connector for easy connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is suitable for a variety of applications thanks to its thermoplastic housing. It belongs to the Q40 AC series and offers a sensing distance of up to 6 meters with a visible red light of 680 nm wavelength. The Q40RW3LPQ3 operates in Dark-ON mode and has a quick response time of 16ms. It is powered by a supply voltage ranging from 20Vac to 250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. This sensor provides one digital output (Solid-state AC output; SPST contact type) and boasts a high degree of protection with an IP69K NEMA 6P rating, ensuring durability in demanding environments.
