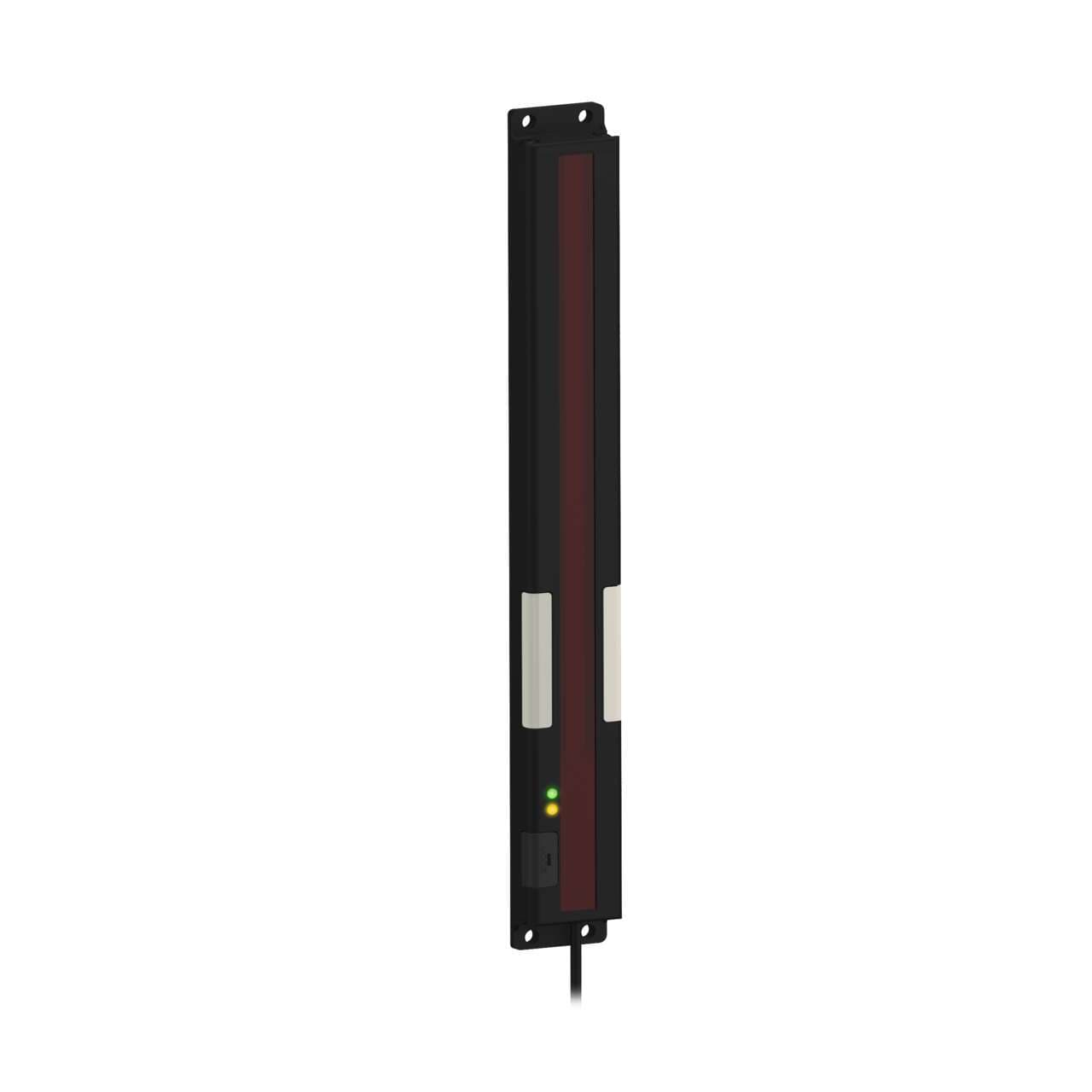

PVA225P6Q Banner Optical Sensors
Part#:PVA225P6Q
Manufacturer:Banner
Alt. Part#:52907
Product Lifecycle:Active
Get a quick Quote!
PVA Series: 225 mm Array Pair - Emitter/Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 PNP (on receiver); M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA225P6Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 644.10064 g
- Country Of Origin US
- NEMA Type and UL Type Rating NEMA 2
- Beam Spacing (mm) 25.0
- Physical Dimensions (LxWxH or DxH mm) 266.4 x 30.0 x 15.0
- Input Type Bimodal (PNP/NPN)
- Supply Voltage 12-30 V dc
- Array Length (mm) 225.0
- Sensing Array Length (mm) 225
- Maximum Sensing Distance (mm) 2000
- Operation Normally Open/Normally Closed
- Max Output Response Time (ms) 40
- Max Current Color (mA) 62
- Connection Pigtail QD
- Color Technology Standard LED
- Animation Option 1 Dip-Switch Controlled
- Job Light Green
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU No
- IO Link No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Audible No
- Sensing Resolution (mm) 35.0
- Button Operation Momentary
- Primary Window Material Acrylic Clear
- Primary Housing Color Black
- Max Op. Temperature (°C) 50
- Number of Beams 10
- Environmental Rating IP62
- Activation Function Optical
- Output Type PNP
- Number of Input Pins/Conductors 4
- Primary Housing Material Aluminum
- Quick Disconnect Type M12 (Euro)
- Color Option 1 Green
- Product Size (mm) Other
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 1
- Mounting Thread No Thread
- Actuation Yes
- Sensing Mode (Detailed) Emitter/Receiver Pair
- Power DC
- Cable Length (m) 2
- Sensing Mode (General) Opposed
- Housing Style Flat Mount - Array
- Power Source DC
- Product series / family name PVA
- Sensing distance 2m / 2000 mm
- Operating mode NO (Normally Open) NC (Normally Closed)
- Supply voltage (DC) 12-30Vdc (12Vdc-24Vdc nom.)
- Frame color Black
- Digital outputs 1 x digital output (PNP transistor)
- Supply voltage (DC) 12-30 V
- Net Height (mm) (sensing height) 9" / 225 mm
- Length (mm) (array) 225 mm
- Primary brand Banner Engineering
- Mounting mode Surface Pole
- Compliant with standard(s) CE cULus Listed
- Light Color Green
- Maximum temperature 50 °C
- Functions Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter+receiver pair
- Ambient air temperature for operation 0...+50 °C
- Current consumption 62mA / 0.062 A
- Length (m) (cable) 2 m
- Main function Sensor (Array)
- Connection type Pre-wired (pigtail) 4-pin M12 connector
- Material Acrylic Clear (window) Aluminum (housing)
- Degree of protection IP62 NEMA 2
- Technology used in component LED
- Distance (beam spacing) 25mm
- Visual position indicator green LED (power ON) yellow LED (output state) red LED (frequency selected)
- Order code / Manufacturer SKU 52907
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PVA225P6Q Description
Banner Engineering PVA225P6Q is a photo-electric array sensor designed for precise object detection and measurement tasks. This sensor, functioning as a receiver alone, features a 225mm array length and operates within a sensing distance of up to 2m. It is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 4-pin M12 connector for easy integration. The sensor operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 62mA. It offers a degree of protection rated at IP62 NEMA 2, ensuring durability against dust and moisture in certain environments. The PVA225P6Q's housing is made of aluminium with an acrylic window, and it has dimensions of 15mm in height, 30mm in width, and 267mm in depth. The light emitted by the sensor is green, with a 25mm beam spacing/pitch for accurate detection. It supports both Light-ON and Dark-ON operating modes, and can be configured as Normally Open (NO) or Normally Closed (NC). Additionally, it features 1 x digital output (PNP transistor) for signal processing.
Related documents PVA225P6Q Specs
