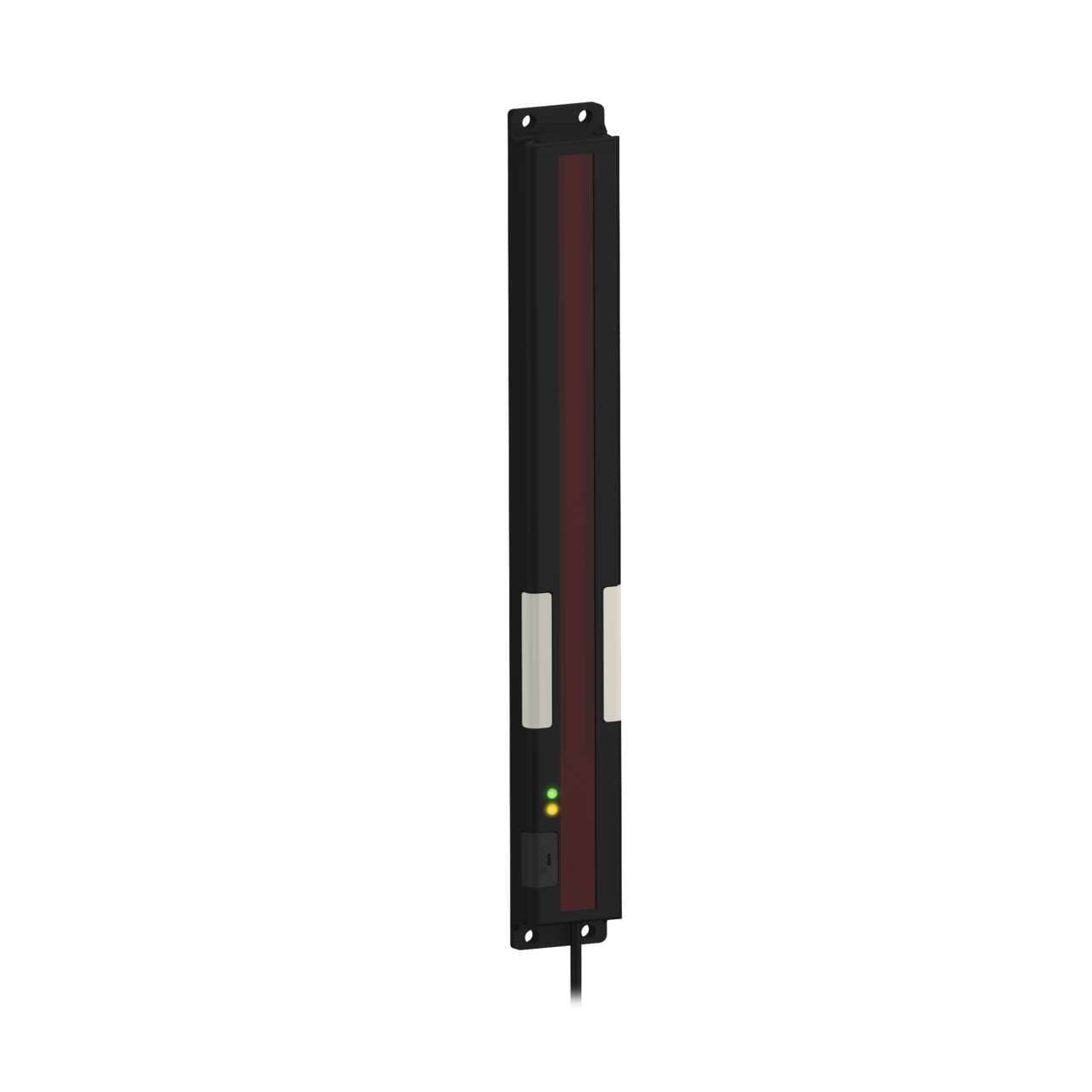

PVA225N6 Banner Optical Sensors

Product Details

• Weight
  633.668024 g
• Country Of Origin
  US
• Modbus RTU
  No
• Job Light
  Green
• Pro-Editor Compatible (Discrete)
  No
• Wireless
  No
• IO Link
  No
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Max Op. Temperature (°C)
  50
• Sensing Resolution (mm)
  35.0
• Primary Window Material
  Acrylic Clear
• Feature: Hazardous Area
  No
• Button Operation
  Momentary
• Primary Housing Color
  Black
• NEMA Type and UL Type Rating
  NEMA 2
• Beam Spacing (mm)
  25.0
• Environmental Rating
  IP62
• Number of Beams
  10
• Physical Dimensions (LxWxH or DxH mm)
  266.4 x 30.0 x 15.0
Array Length (mm)
225.0
Maximum Sensing Distance (mm)
2000
Sensing Array Length (mm)
225
Max Output Response Time (ms)
40
Input Type
Bimodal (PNP/NPN)
Output Type
NPN
Operation
Normally Open/Normally Closed
Supply Voltage
12-30 V dc
Number of Input Pins/Conductors
4
Animation Option 1
Dip-Switch Controlled
Max Current Color (mA)
62
Connection
Cable
Color Option 1
Green
Color Technology
Standard LED
Number of Colors / Segments
1
Product Size (mm)
Other
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Mounting Thread
No Thread
Power Source
DC
Cable Length (m)
2
Power
DC
Sensing Mode (Detailed)
Emitter/Receiver Pair
Housing Style
Flat Mount - Array
Actuation
Yes
Activation Function
Optical
Primary Housing Material
Aluminum
Sensing Mode (General)
Opposed
Product series / family name
PVA
Connection type
Pre-wired bare end flying leads
Functions
Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter+receiver pair
Operating mode
NO (Normally Open) NC (Normally Closed)
Ambient air temperature for operation
0...+50 °C
Order code / Manufacturer SKU
52906
Distance
(beam spacing) 25mm
Primary brand
Banner Engineering
Main function
Sensor (Array)
Frame color
Black
Visual position indicator
green LED (power ON) yellow LED (output state) red LED (frequency selected)
Maximum temperature
50 °C
Sensing distance
2m / 2000 mm
Compliant with standard(s)
CE cULus Listed
Supply voltage
(DC) 12-30 V
Length (mm)
(array) 225 mm
Degree of protection
IP62 NEMA 2
Mounting mode
Surface Pole
Current consumption
62mA / 0.062 A
Net Height (mm)
(sensing height) 9" / 225 mm
Light Color
Green
Supply voltage (DC)
12-30Vdc (12Vdc-24Vdc nom.)
Digital outputs
1 x digital output (NPN transistor)
Technology used in component
LED
Material
Acrylic Clear (window) Aluminum (housing)
Length (m)
(cable) 2 m
