PVA225P6E Banner Optical Sensors

PVA225P6E on Powermatic Associates
Banner
  • PVA225P6E
  • PVA225P6E

Part#:PVA225P6E

Alt. Part#:50785

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

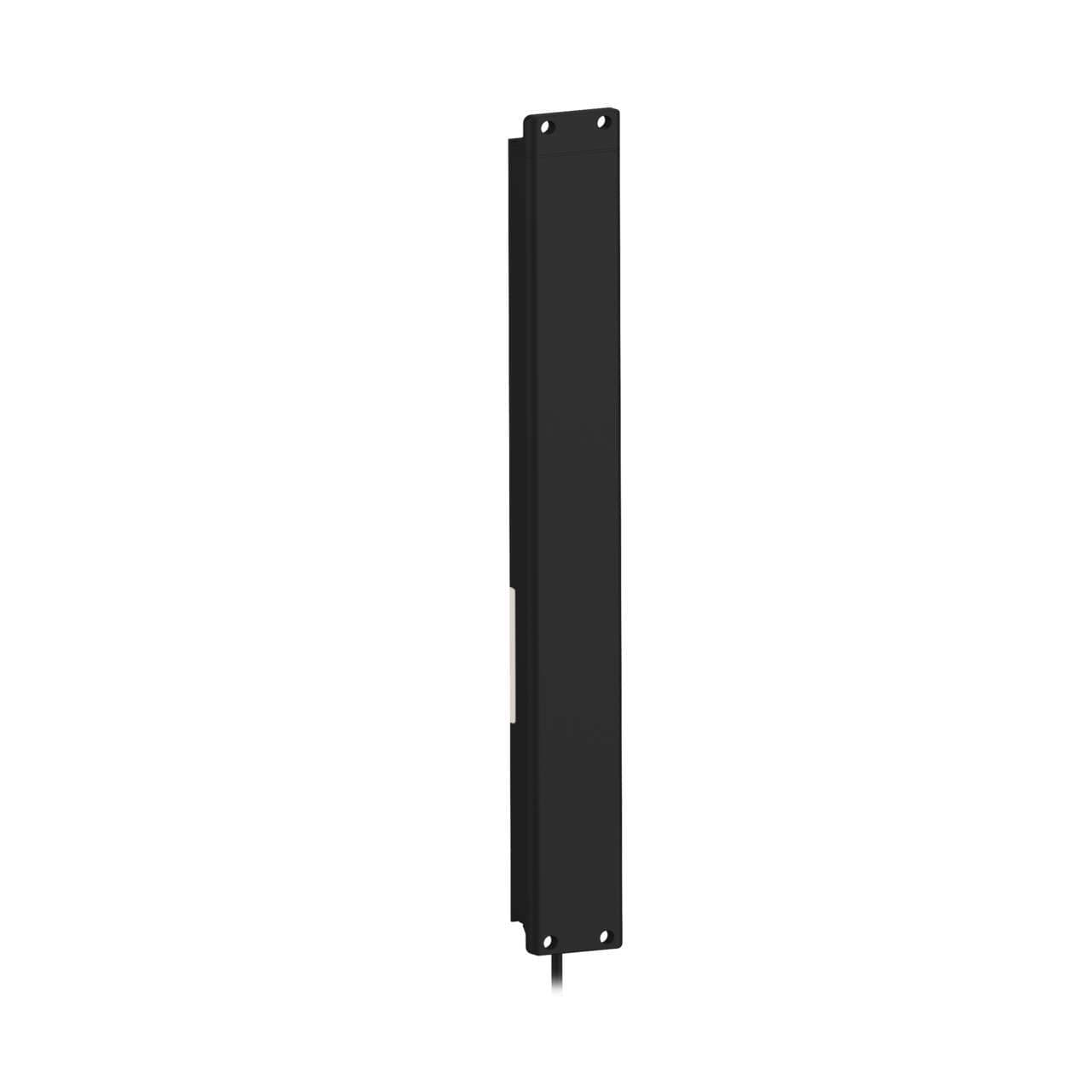

PVA Series: 225 mm Array - Emitter; Range: 2 m; Input: 12-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    290.29888 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Feature: Chemical Resistant
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Job Light
    Green
  • Button Operation
    Momentary
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • IO Link
    No
  • Sensing Resolution (mm)
    35.0
  • Primary Window Material
    Acrylic Clear
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • NEMA Type and UL Type Rating
    NEMA 2
  • Environmental Rating
    IP62
  • Number of Beams
    10
  • Beam Spacing (mm)
    25.0
  • Physical Dimensions (LxWxH or DxH mm)
    266.4 x 30.0 x 15.0
  • Maximum Sensing Distance (mm)
    2000
  • Array Length (mm)
    225.0
  • Sensing Array Length (mm)
    225
  • Max Output Response Time (ms)
    40
  • Input Type
    Bimodal (PNP/NPN)
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    62
  • Connection
    Cable
  • Color Technology
    Standard LED
  • Animation Option 1
    Dip-Switch Controlled
  • Color Option 1
    Green
  • Product Size (mm)
    Other
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Mounting Thread
    No Thread
  • Actuation
    Yes
  • Sensing Mode (Detailed)
    Emitter
  • Power
    DC
  • Housing Style
    Flat Mount - Array
  • Activation Function
    Optical
  • Cable Length (m)
    2
  • Primary Housing Material
    Aluminum
  • Sensing Mode (General)
    Opposed
  • Power Source
    DC
  • Product series / family name
    PVA
  • Digital outputs
    4 x digital outputs (12-30Vdc; PNP)
  • Technology used in component
    LED
  • Light Color
    Green
  • Distance
    (beam spacing) 25mm
  • Main function
    Sensor (Array)
  • Mounting mode
    Surface Pole
  • Connection type
    Pre-wired bare end flying leads
  • Ambient air temperature for operation
    0...+50 °C
  • Current consumption
    62mA / 0.062 A
  • Length (mm)
    (array) 225 mm
  • Primary brand
    Banner Engineering
  • Frame color
    Black
  • Material
    Acrylic Clear (window) Aluminum (housing)
  • Supply voltage (DC)
    12-30Vdc (12Vdc-24Vdc nom.)
  • Sensing distance
    2m / 2000 mm
  • Compliant with standard(s)
    CE cULus Listed
  • Supply voltage
    (DC) 12-30 V
  • Functions
    Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter only
  • Degree of protection
    IP62 NEMA 2
  • Order code / Manufacturer SKU
    50785
  • Maximum temperature
    50 °C
  • Visual position indicator
    green LED (power ON) red LED (frequency selected)
  • Length (m)
    (cable) 2 m
  • Net Height (mm)
    (sensing height) 9" / 225 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVA225P6E on Powermatic Associates is $456.00. Order now.

About the product

Banner Engineering PVA225P6E is a photo-electric array sensor designed for precise detection tasks. This sensor features an emitter alone configuration, housed in an aluminum casing with an acrylic window for durability. It has a rectangular shape with dimensions of 225mm in array length, 30mm in width, and a net depth of 267mm. The unit is pre-wired with a 6-inch (150mm) pigtail that terminates in a 4-pin M12 connector for easy installation. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The PVA225P6E offers a sensing distance of up to 2 meters (2000mm) and features a green light source with a 25mm beam spacing/pitch. It is equipped with one digital output (PNP transistor) and boasts a degree of protection rated at IP62 NEMA 2, ensuring its operation in various environmental conditions.
