PITL26UM4-VL Banner Through Beam Sensors

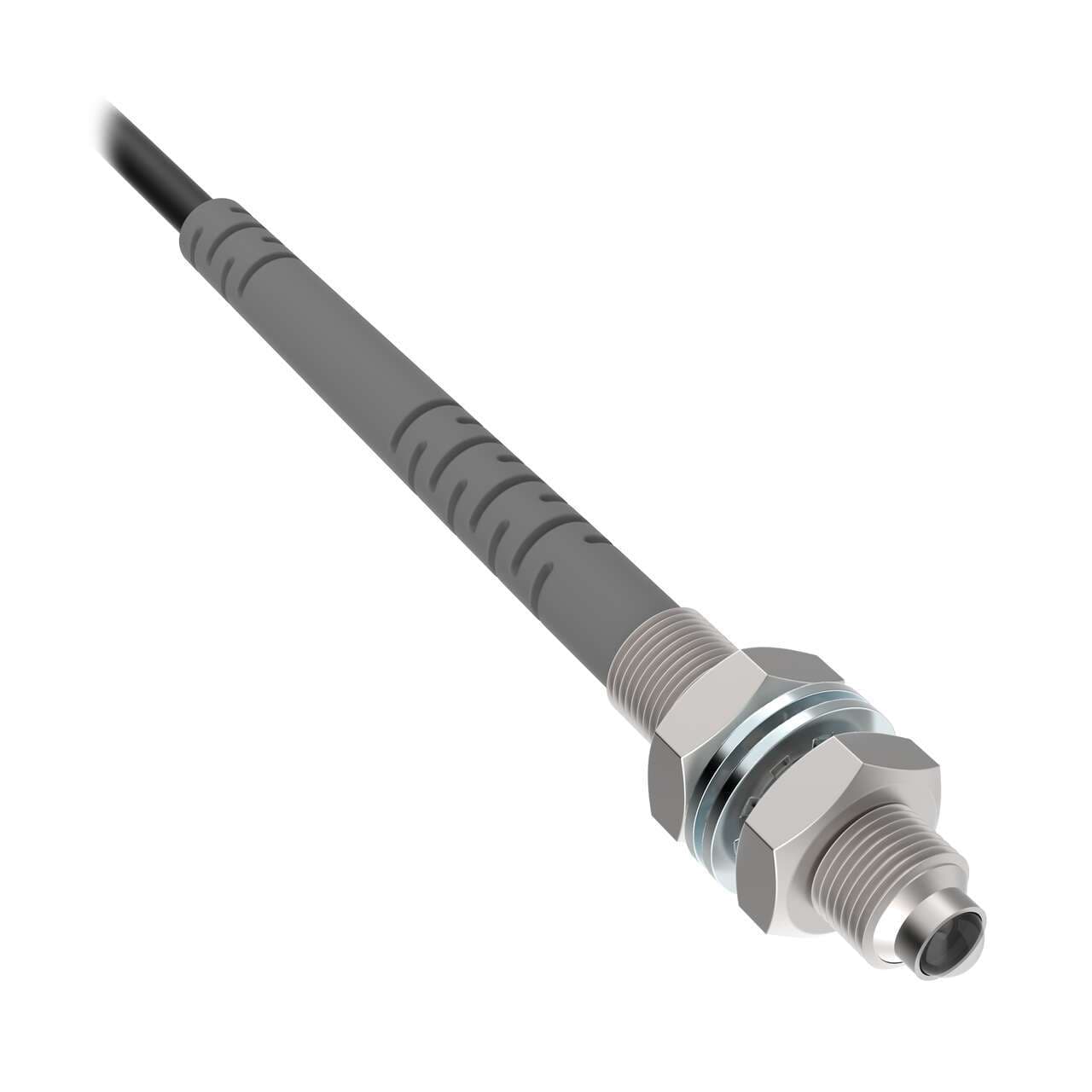

Banner PITL26UM4-VL Plastic Fiber; Opposed Mode Pair; Core Dia.: 0.5 mm; Fiber Length 2 m; Stainless Thread M4 With integrated Lens; 30 mm spot size at 100 mm range; Flex Relief, Free cut, Vantage Line
Banner

Part#:PITL26UM4-VL

Manufacturer:Banner

Alt. Part#:802117

Product Lifecycle:Active

Get a quick Quote!

Plastic Fiber; Opposed Mode Pair; Core Dia.: 0.5 mm; Fiber Length 2 m; Stainless Thread M4 With integrated Lens; 30 mm spot size at 100 mm range; Flex Relief, Free cut, Vantage Line

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PITL26UM4-VL Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    TW
  • Fiber Sensing End Size - Mounting Area
    M4
  • Max Distance: DF-G3 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Tariff Fiber Meters (fbm)
    4
  • Integrated Lens
    Yes
  • Application: Liquid Level
    No
  • Max Temp ( °C)
    70
  • Sensing End Segment 1
    Thread
  • Beam Exit
    In-line
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    Yes
  • Minimum Repeat Bending Endurance
    1000
  • Termination
    Free Cut
  • Feature: Chemical Resistant
    No
  • Minimum Bend Radius (mm)
    15
  • Core Diameter (mm)
    0.5
  • Retractile
    No
  • Sensing End Segment 2
    Lens
  • Flex Relief
    Yes
  • Fiber Sensing End Size
    M4
  • Fiber Length (m)
    2
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Fiber Sensing End Tip
    Lens
  • Sensing Mode (General)
    Opposed
  • Sensing End Material (Specific)
    Stainless Steel
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Optic Type
    Plastic
  • Housing Style
    Round
  • Quantity Included
    2
  • Product series / family name
    Fiber sensors
  • Main function
    Fiber sensor
  • Shape
    Cylindrical (threaded) end tip
  • Material
    Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
  • Order code / Manufacturer SKU
    802117
  • Sub-range name
    Plastic fiber - Vantage Line
  • Length
    6ft / 2m
  • Equivalent to
    PITL26UM4VL
  • Functions
    Fiber optic sensor
  • Primary brand
    Banner Engineering
  • Diameter
    0.5mm fiber core
  • Design
    through-beam system / opposed mode flex strain relief end tip lns. pair of individual fibers In-line sensing
  • Thread size
    M4
  • Ambient air temperature for operation
    +70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PITL26UM4-VL Description

Banner Engineering PITL26UM4-VL is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode flex strain relief end tip. This sensor is part of the Plastic fiber (Vantage Line) series and is equipped with a pair of individual fibers for in-line sensing. It has a 0.5mm fiber core diameter and is constructed with a stainless steel sensing end, plastic fiber, and a polyethylene (PE) fiber sheath. The cylindrical (threaded) end tip shape facilitates easy installation. The PITL26UM4-VL is designed to operate in ambient air temperatures up to +70°C and has a total length of 6ft / 2m.

Related documents PITL26UM4-VL Specs

PITL26UM4-VL PITL2 M4 VANTAGE LINE SERIES UNTERMINATED-1630955254629.stp
PITL26UM4-VL PITL2 M4 VANTAGE LINE SERIES UNTERMINATED-1630955254623.pdf
