PITL23UM4-VL Banner Through Beam Sensors

PITL23UM4-VL on Powermatic Associates
Banner

Part#:PITL23UM4-VL

Manufacturer:Banner

Alt. Part#:801985

Product Lifecycle:Active

Get a quick Quote!

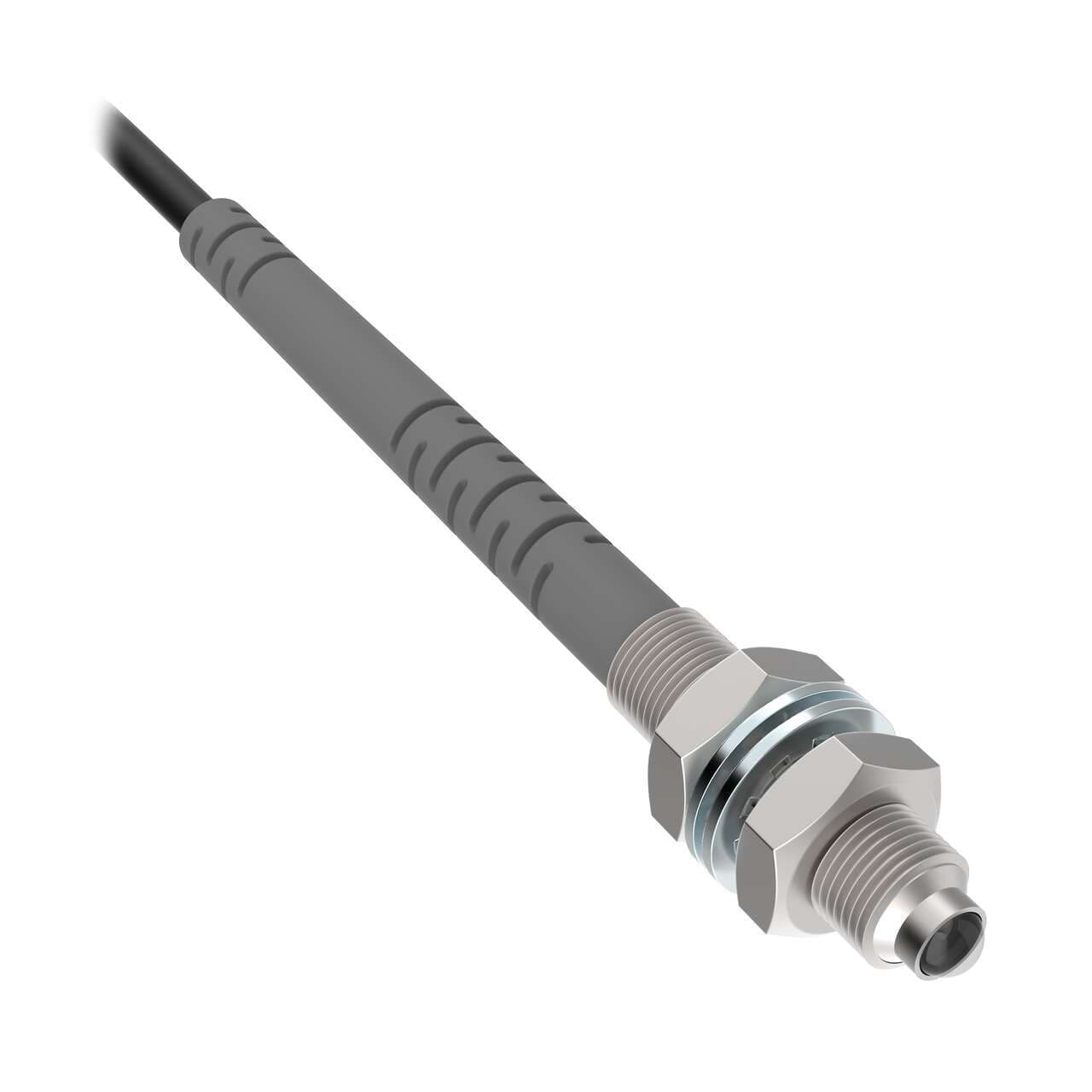

Plastic Fiber; Opposed Mode Pair; Core Dia.: 0.5 mm; Fiber Length 1 m; Stainless Thread M4 With integrated Lens, 30 mm spot size at 100 mm range; Flex Relief, Free cut, Vantage Line

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PITL23UM4-VL Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    18.14368 g
  • Country Of Origin
    TW
  • Minimum Repeat Bending Endurance
    1000
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    M4
  • Tariff Fiber Meters (fbm)
    2
  • Application: Vacuum Feed Through
    None
  • Termination Type
    Plastic Fiber Sensors
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    Yes
  • Integrated Lens
    Yes
  • Feature: Chemical Resistant
    No
  • Max Temp ( °C)
    70
  • Retractile
    No
  • Minimum Bend Radius (mm)
    15
  • Termination
    Free Cut
  • Core Diameter (mm)
    0.5
  • Flex Relief
    Yes
  • Fiber Sensing End Size
    M4
  • Fiber Length (m)
    1
  • Sensing End Segment 2
    Lens
  • Sensing End Segment 1
    Thread
  • Sensing Mode (Detailed)
    Reflective
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Fiber Sensing End Tip
    Lens
  • Sensing Mode (General)
    Opposed
  • Beam Exit
    In-line
  • Housing Style
    Round
  • Quantity Included
    2
  • Fiber Optic Type
    Plastic
  • Primary brand
    Banner Engineering
  • Thread size
    M4
  • Functions
    Fiber optic sensor
  • Length
    3ft / 1m
  • Product series / family name
    Fiber sensors
  • Main function
    Fiber sensor
  • Equivalent to
    PITL23UM4VL
  • Material
    Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
  • Ambient air temperature for operation
    +70 °C
  • Order code / Manufacturer SKU
    801985
  • Design
    through-beam system / opposed mode flex strain relief end tip lns. pair of individual fibers In-line sensing
  • Shape
    Cylindrical (threaded) end tip
  • Sub-range name
    Plastic fiber - Vantage Line
  • Diameter
    0.5mm fiber core

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PITL23UM4-VL Description

Banner Engineering PITL23UM4-VL is a fiber optic sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers in-line sensing. It features a 0.5mm fiber core diameter and is part of the Plastic fiber series. The sensor has a cylindrical (threaded) probe tip shape, with the sensing end made of stainless steel and the fiber sheathed in polyethylene (PE). It is capable of operating in ambient air temperatures up to +70°C. The total length of the sensor is 6ft / 2m.

Related documents PITL23UM4-VL Specs

PITL23UM4-VL PITL2 M4 VANTAGE LINE SERIES UNTERMINATED-1630955002781.stp
PITL23UM4-VL PITL2 M4 VANTAGE LINE SERIES UNTERMINATED-1630955002783.pdf

Manufacturer warranty

$65.00
