PITL23UM6-VL Banner Through Beam Sensors

PITL23UM6-VL on Powermatic Associates
Banner

Part#:PITL23UM6-VL

Manufacturer:Banner

Alt. Part#:801984

Product Lifecycle:Active

Get a quick Quote!

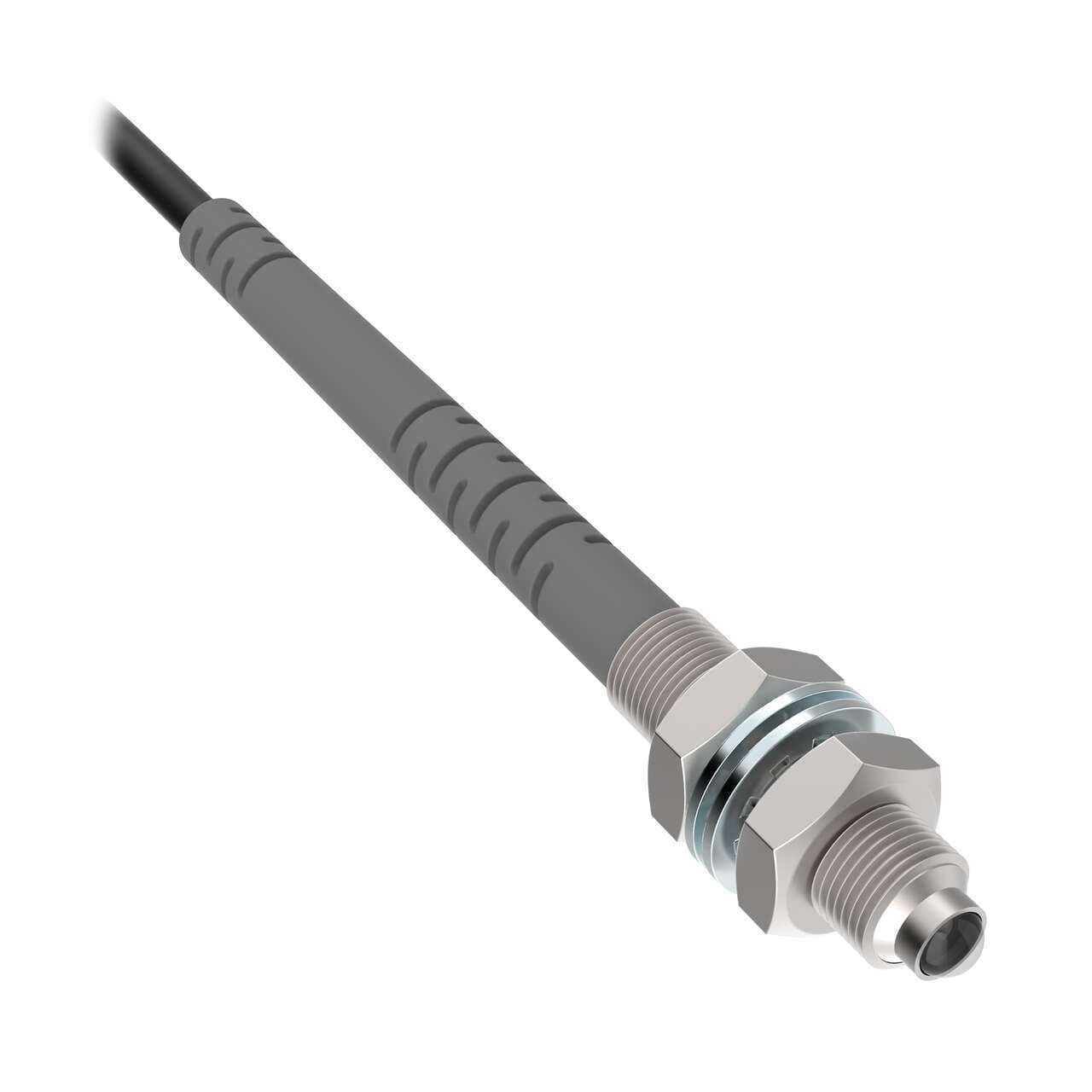

Plastic Fiber; Opposed Mode Pair; Core Dia.: 0.5 mm; Fiber Length 1 m; Stainless Thread M6 With integrated Lens, 20 mm; spot size at 100 mm range; Flex Relief, Free cut, Vantage Line

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PITL23UM6-VL Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    31.75144 g
  • Country Of Origin
    TW
  • Termination Type
    Plastic Fiber Sensors
  • Max Distance: DF-G2 (mm)
    5099
  • Application: Vacuum Feed Through
    None
  • Max Distance: DF-G1 (mm)
    3148
  • Max Distance: DF-G3 (mm)
    24458
  • Fiber Sensing End Size - Mounting Area
    M6
  • Measured Max Distance (mm)
    3148
  • Tariff Fiber Meters (fbm)
    2
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    Yes
  • Feature: Chemical Resistant
    No
  • Termination
    Free Cut
  • Minimum Repeat Bending Endurance
    1000
  • Retractile
    No
  • Max Temp ( °C)
    70
  • Integrated Lens
    Yes
  • Flex Relief
    Yes
  • Minimum Bend Radius (mm)
    15
  • Core Diameter (mm)
    0.5
  • Fiber Sensing End Tip
    Lens
  • Sensing End Segment 1
    Thread
  • Fiber Sensing End Size
    M6
  • Sensing End Segment 2
    Lens
  • Beam Exit
    In-line
  • Fiber Length (m)
    1
  • Sensing Mode (Detailed)
    Reflective
  • Quantity Included
    2
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Max Range: DF-G3 (mm)
    >5m
  • Sensing End Material (Specific)
    Stainless Steel
  • Sensing Mode (General)
    Opposed
  • Fiber Optic Type
    Plastic
  • Housing Style
    Round
  • Sub-range name
    Plastic fiber - Vantage Line
  • Diameter
    0.5mm fiber core
  • Thread size
    M6
  • Main function
    Fiber sensor
  • Product series / family name
    Fiber sensors
  • Shape
    Cylindrical (threaded) end tip
  • Equivalent to
    PITL23UM6VL
  • Primary brand
    Banner Engineering
  • Functions
    Fiber optic sensor
  • Length
    3ft / 1m
  • Material
    Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
  • Design
    through-beam system / opposed mode flex strain relief end tip lns. pair of individual fibers In-line sensing
  • Ambient air temperature for operation
    +70 °C
  • Order code / Manufacturer SKU
    801984

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PITL23UM6-VL Description

Banner Engineering PITL23UM6-VL is a fiber optic sensor designed for in-line sensing with a through-beam system or opposed mode flex strain relief end tip. It features a 0.5mm fiber core diameter and is part of the Plastic fiber (Vantage Line) series. This sensor has a cylindrical (threaded) end tip shape, with the sensing end made of stainless steel and the fiber sheath constructed from polyethylene (PE). It is designed to operate in ambient air temperatures up to +70°C and has a length of 6ft / 2m.

Related documents PITL23UM6-VL Specs

PITL23UM6-VL PITL2 M6 VANTAGE LINE SERIES UNTERMINATED-1630954914240.stp
PITL23UM6-VL PITL2 M6 VANTAGE LINE SERIES UNTERMINATED-1630954914245.pdf
