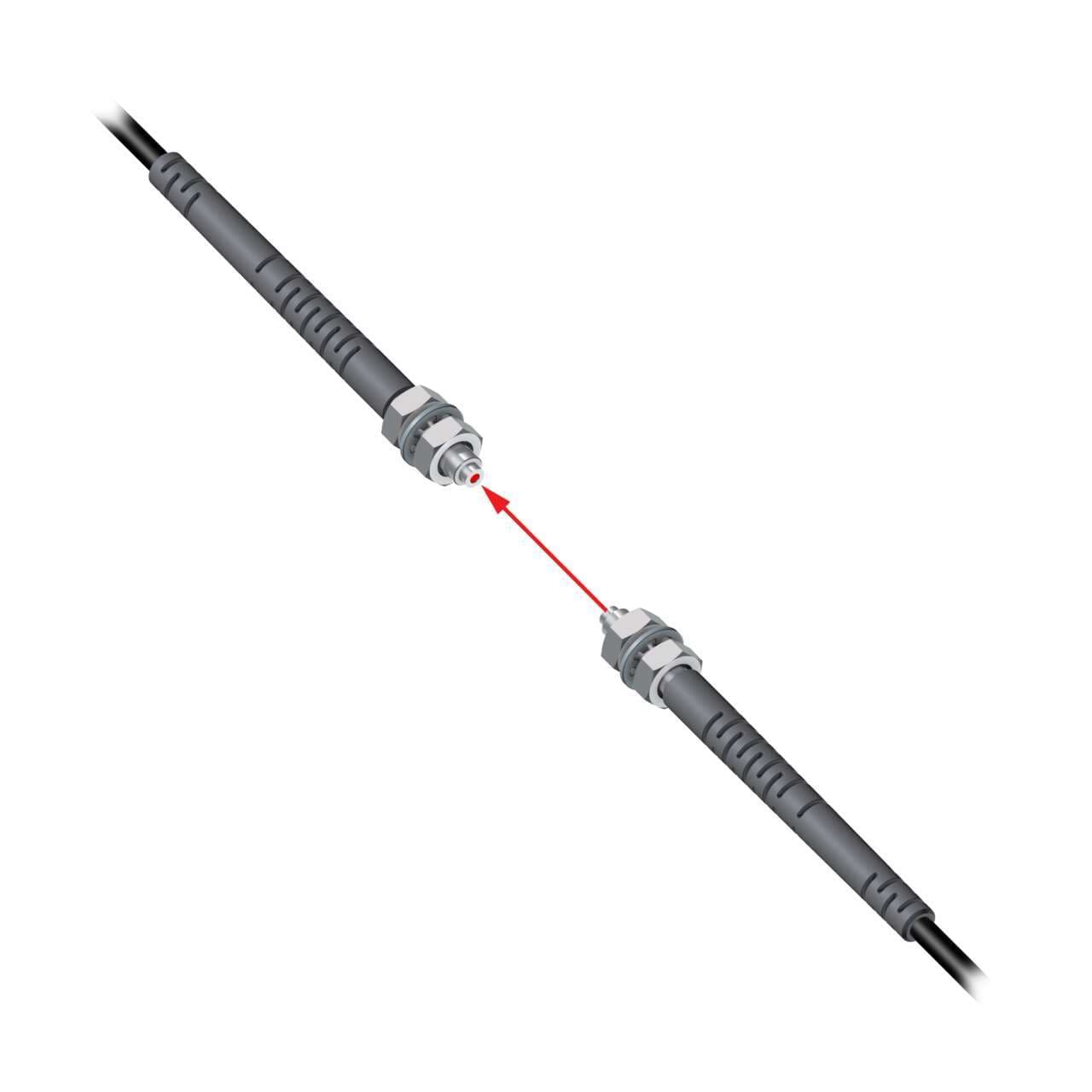

PIT46UM3-VL Banner Through Beam Sensors
Part#:PIT46UM3-VL
Alt. Part#:87548
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Thread M3; Flex Relief; Free cut; Vantage Line
Product Details
- Weight 23.4960656 g
- Country Of Origin TW
- Max Distance: DF-G2 (mm) 981
- Max Distance: DF-G3 (mm) 4704
- Max Distance: DF-G1 (mm) 605
- Tariff Fiber Meters (fbm) 4
- Fiber Sensing End Size - Mounting Area M3
- Termination Type Plastic Fiber Sensors
- Application: Liquid Level No
- Feature: Extended Range No
- Feature: Small Object Detection No
- Feature: Chemical Resistant No
- Core Diameter (mm) 1
- Fiber Sensing End Size M3
- Flex Relief Yes
- Fiber Length (m) 2
- Measured Max Distance (mm) 605
- Application: Vacuum Feed Through None
- Max Temp ( °C) 70
- Integrated Lens No
- Termination Free Cut
- Minimum Repeat Bending Endurance 1000
- Minimum Bend Radius (mm) 25
- Sensing End Segment 1 Thread
- Retractile No
- Fiber Sensing End Tip Thread
- Fiber Optic Type Plastic
- Fiber Sheathing Material (Jacket) Polyethylene
- Max Range: DF-G3 (mm) >3m - <=5m
- Sensing Mode (Detailed) Reflective
- Sensing Mode (General) Opposed
- Beam Exit In-line
- Sensing End Material (Specific) Nickel-Plated Brass
- Quantity Included 2
- Housing Style Round
- Main function Fiber sensor
- Sub-range name Plastic fiber - Vantage Line
- Length 6ft / 2m
- Thread size M3
- Product series / family name Fiber sensors
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Ambient air temperature for operation +70 °C
- Primary brand Banner Engineering
- Design through-beam system / opposed mode flex strain relief pair of individual fibers In-line sensing
- Order code / Manufacturer SKU 87548
- Functions Fiber optic sensor
- Shape Cylindrical (threaded) end tip
- Diameter 1mm fiber core
- Equivalent to PIT46UM3VL
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIT46UM3-VL on Powermatic Associates is $42.00. Order now.
About the product
Banner Engineering PIT46UM3-VL is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers for in-line sensing. This sensor is part of the Plastic fiber series and operates effectively at an ambient air temperature up to +70°C. It has a 1mm fiber core diameter and comes with a 6ft / 2m length. The design includes a cylindrical (threaded) probe tip made of stainless steel for the sensing end, while the fiber is encased in a plastic fiber sheath made of Polyethylene (PE), ensuring compatibility with a variety of industrial environments.
