PIT46UHT1 Banner Through Beam Sensors

PIT46UHT1 on Powermatic Associates
Banner

Part#:PIT46UHT1

Alt. Part#:42804

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

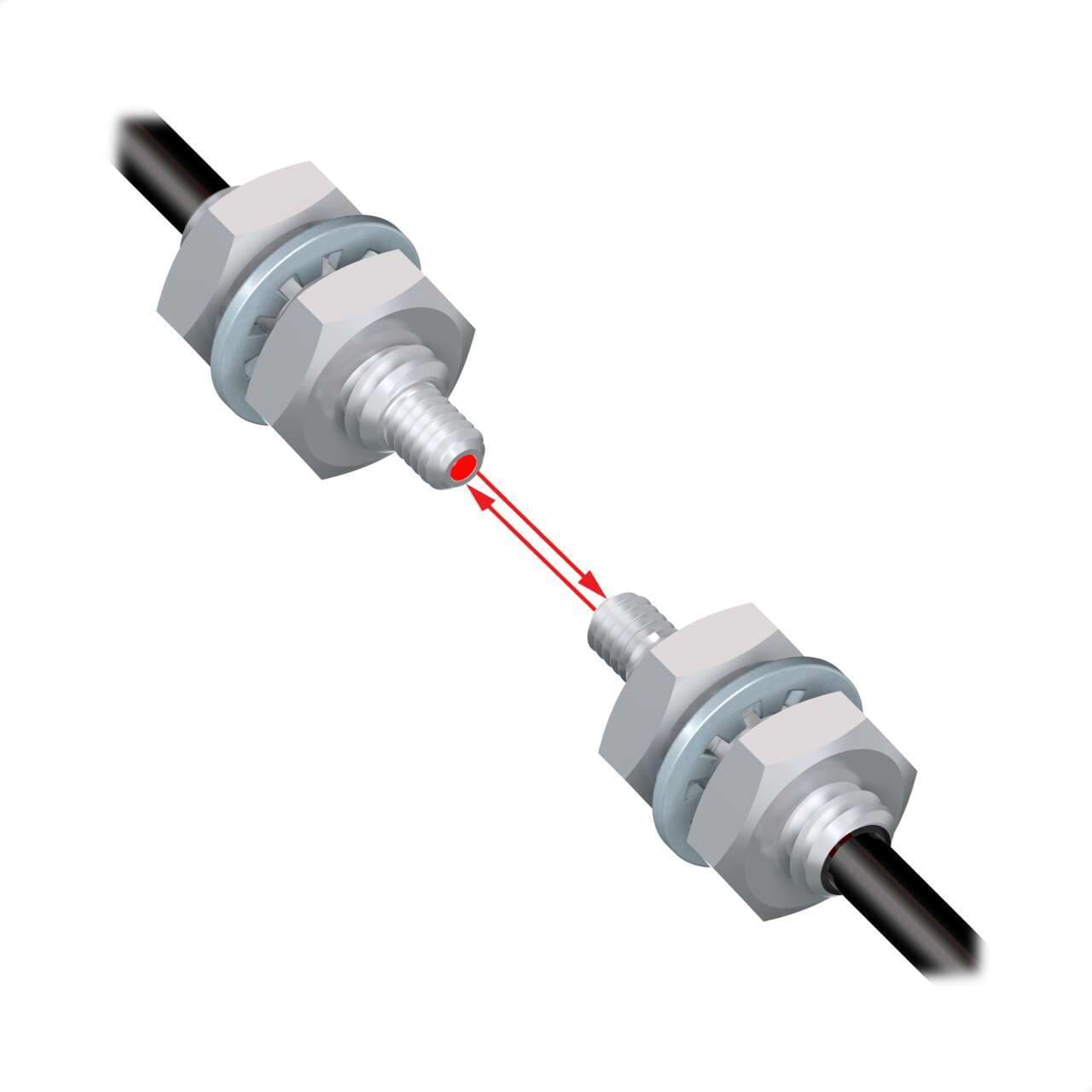

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Thread; Free cut

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    JP
  • Tariff Fiber Meters (fbm)
    4
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    M4
  • Max Distance: DF-G3 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Application: Liquid Level
    No
  • Feature: Extended Range
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Minimum Repeat Bending Endurance
    1000
  • Max Temp ( °C)
    105
  • Retractile
    No
  • Sensing End Segment 1
    Thread
  • Flex Relief
    No
  • Termination
    Free Cut
  • Core Diameter (mm)
    1
  • Minimum Bend Radius (mm)
    25
  • Fiber Sensing End Size
    M2.5
  • Fiber Length (m)
    2
  • Sensing End Segment 2
    Thread
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Fiber Sensing End Tip
    Thread
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Optic Type
    Plastic
  • Beam Exit
    In-line
  • Quantity Included
    2
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Round
  • Sub-range name
    Plastic fiber series
  • Product series / family name
    Fiber sensors
  • Functions
    Fiber optic sensor
  • Length
    6ft / 2m
  • Main function
    Fiber sensor
  • Order code / Manufacturer SKU
    42804
  • Primary brand
    Banner Engineering
  • Shape
    Cylindrical (threaded) end tip
  • Material
    Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
  • Thread size
    M4
  • Ambient air temperature for operation
    +105 °C
  • Diameter
    1mm fiber core
  • Design
    through-beam system / opposed mode pair of individual fibers

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIT46UHT1 on Powermatic Associates is $98.00. Order now.


About the product

Banner Engineering PIT46UHT1 is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode flex strain relief pair of individual fibers for in-line sensing. This sensor operates effectively at an ambient air temperature up to +70°C. It belongs to the Plastic fiber (Vantage Line) series, characterized by a 1mm fiber core diameter. The sensor has a cylindrical (threaded) end tip shape, ensuring easy installation. It is constructed with a stainless steel sensing end and a plastic fiber with a polyethylene (PE) fiber sheath for durability. The total length of the sensor is 6ft / 2m, accommodating various installation requirements.
