PIT43UM3-VL Banner Through Beam Sensors
Part#:PIT43UM3-VL
Alt. Part#:87547
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 1 m; Thread M3; Flex Relief; Free cut; Vantage Line
Product Details
- Weight 161.8416256 g
- Country Of Origin TW
- Tariff Fiber Meters (fbm) 2
- Max Distance: DF-G1 (mm) 652
- Application: Liquid Level No
- Application: Vacuum Feed Through None
- Measured Max Distance (mm) 652
- Fiber Sensing End Size - Mounting Area M3
- Termination Type Plastic Fiber Sensors
- Max Distance: DF-G2 (mm) 1056
- Integrated Lens No
- Minimum Bend Radius (mm) 25
- Feature: Small Object Detection No
- Max Distance: DF-G3 (mm) 5066
- Feature: Extended Range No
- Feature: Chemical Resistant No
- Termination Free Cut
- Retractile No
- Core Diameter (mm) 1
- Max Temp ( °C) 70
- Minimum Repeat Bending Endurance 1000
- Fiber Sensing End Size M3
- Flex Relief Yes
- Sensing End Segment 1 Thread
- Fiber Sheathing Material (Jacket) Polyethylene
- Beam Exit In-line
- Fiber Optic Type Plastic
- Fiber Length (m) 1
- Fiber Sensing End Tip Thread
- Sensing Mode (General) Opposed
- Quantity Included 2
- Housing Style Round
- Max Range: DF-G3 (mm) >5m
- Sensing Mode (Detailed) Reflective
- Sensing End Material (Specific) Nickel-Plated Brass
- Sub-range name Plastic fiber - Vantage Line
- Diameter 1mm fiber core
- Product series / family name Fiber sensors
- Shape Cylindrical (threaded) end tip
- Length 3ft / 1m
- Equivalent to PIT43UM3VL
- Primary brand Banner Engineering
- Ambient air temperature for operation +70 °C
- Functions Fiber optic sensor
- Thread size M3
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Main function Fiber sensor
- Design through-beam system / opposed mode flex strain relief pair of individual fibers In-line sensing
- Order code / Manufacturer SKU 87547
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIT43UM3-VL on Powermatic Associates is $38.00. Order now.
About the product

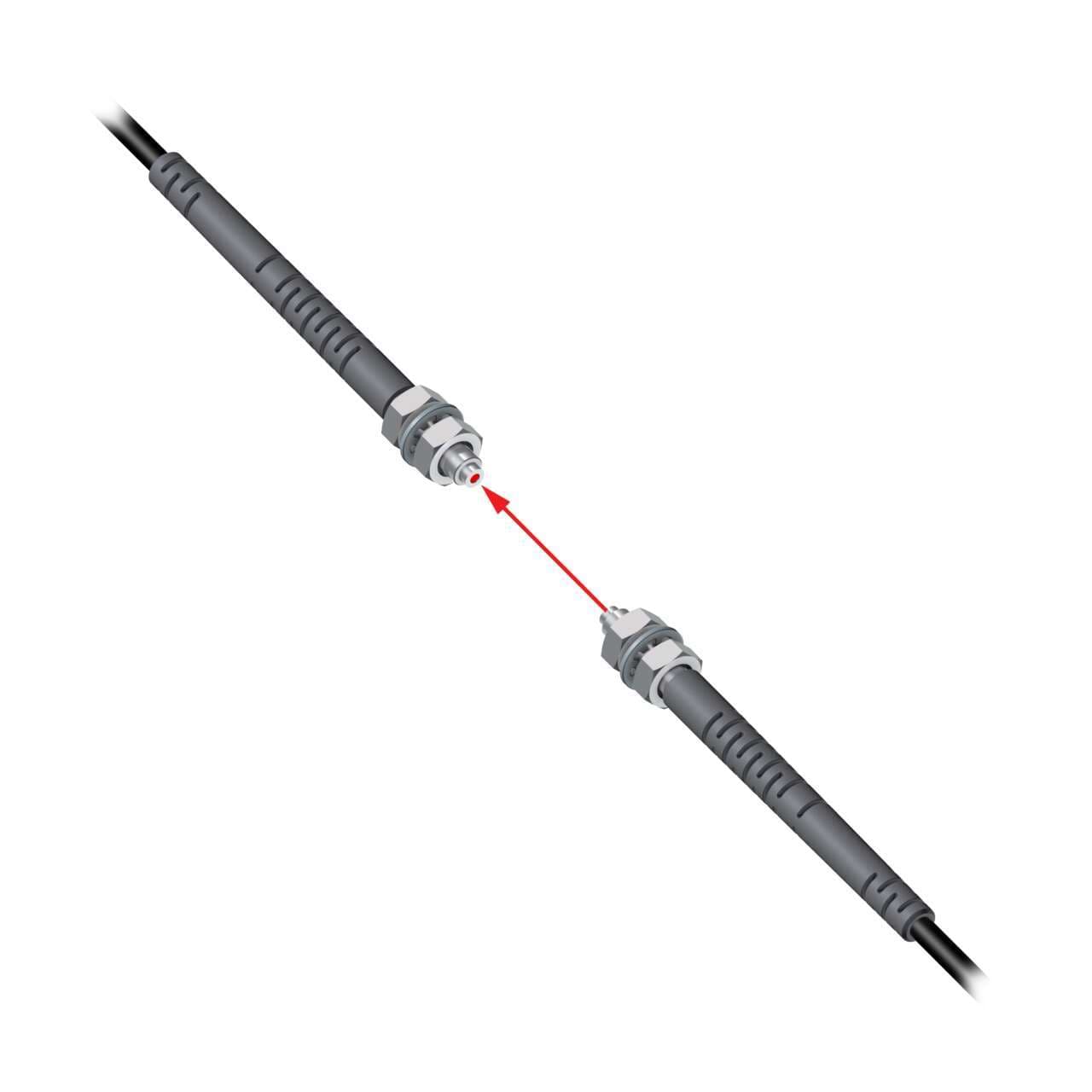

Banner Engineering PIT43UM3-VL is a fiber optic sensor designed for in-line sensing with a through-beam system or opposed mode pair of individual fibers. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and features a 1mm fiber core diameter. The design includes a cylindrical (threaded) probe tip made of nickel-plated brass for the sensing end, with the fiber itself being plastic and the sheath composed of polyethylene (PE). The total length of the fiber is 3ft / 1m, facilitating versatile installation options.
