PIT43U-VL Banner Through Beam Sensors

PIT43U-VL on Powermatic Associates
Banner
  • PIT43U-VL
  • PIT43U-VL

Part#:PIT43U-VL

Alt. Part#:87543

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

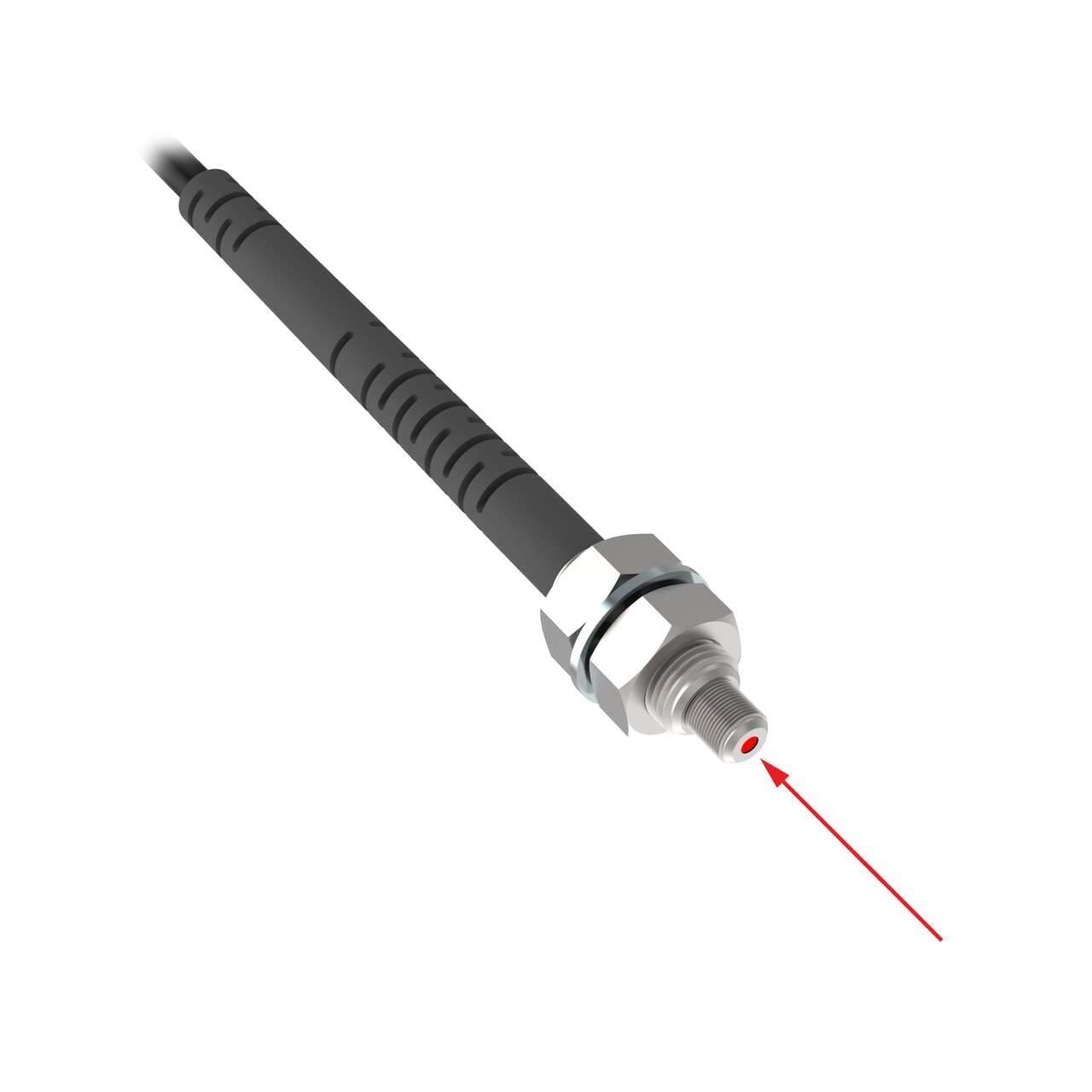

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 1 m; Thread M4; Flex Relief; Free cut; Vantage Line

Product Details

  • Weight
    13.0634496 g
  • Country Of Origin
    TW
  • Termination Type
    Plastic Fiber Sensors
  • Max Distance: DF-G1 (mm)
    622
  • Max Distance: DF-G2 (mm)
    1007
  • Measured Max Distance (mm)
    622
  • Tariff Fiber Meters (fbm)
    2
  • Max Distance: DF-G3 (mm)
    4831
  • Minimum Repeat Bending Endurance
    1000
  • Fiber Sensing End Size - Mounting Area
    M4
  • Feature: Small Object Detection
    No
  • Max Temp ( °C)
    70
  • Application: Liquid Level
    No
  • Feature: Extended Range
    No
  • Application: Vacuum Feed Through
    None
  • Integrated Lens
    No
  • Feature: Chemical Resistant
    No
  • Termination
    Free Cut
  • Minimum Bend Radius (mm)
    25
  • Core Diameter (mm)
    1
  • Fiber Length (m)
    1
  • Sensing End Segment 1
    Thread
  • Flex Relief
    Yes
  • Fiber Sensing End Tip
    Thread
  • Fiber Sensing End Size
    M2.6
  • Housing Style
    Round
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Max Range: DF-G3 (mm)
    >3m - <=5m
  • Quantity Included
    2
  • Sensing End Material (Specific)
    Nickel-Plated Brass
  • Retractile
    No
  • Fiber Optic Type
    Plastic
  • Beam Exit
    In-line
  • Sensing Mode (General)
    Opposed
  • Sensing Mode (Detailed)
    Reflective

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIT43U-VL on Powermatic Associates is $38.00. Order now.

About the product

Banner Engineering PIT43U-VL is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode flex strain relief pair of individual fibers for in-line sensing. This sensor is part of the Plastic fiber (Vantage Line) series and operates effectively at an ambient air temperature of up to +70°C. It has a 1mm fiber core diameter and comes in a cylindrical (threaded) end tip shape. The sensing end is made of stainless steel, while the fiber itself is plastic, and the sheath is constructed from Polyethylene (PE), ensuring durability and compatibility with various environments. The total length of the fiber is 3ft / 1m, accommodating a range of installation requirements.

PIT43U-VL Related Documents

PIT4 VALUE LINE SERIES UNTERMINATED-1630954910417.pdfPIT4 VALUE LINE SERIES UNTERMINATED-1630954910414.stp
