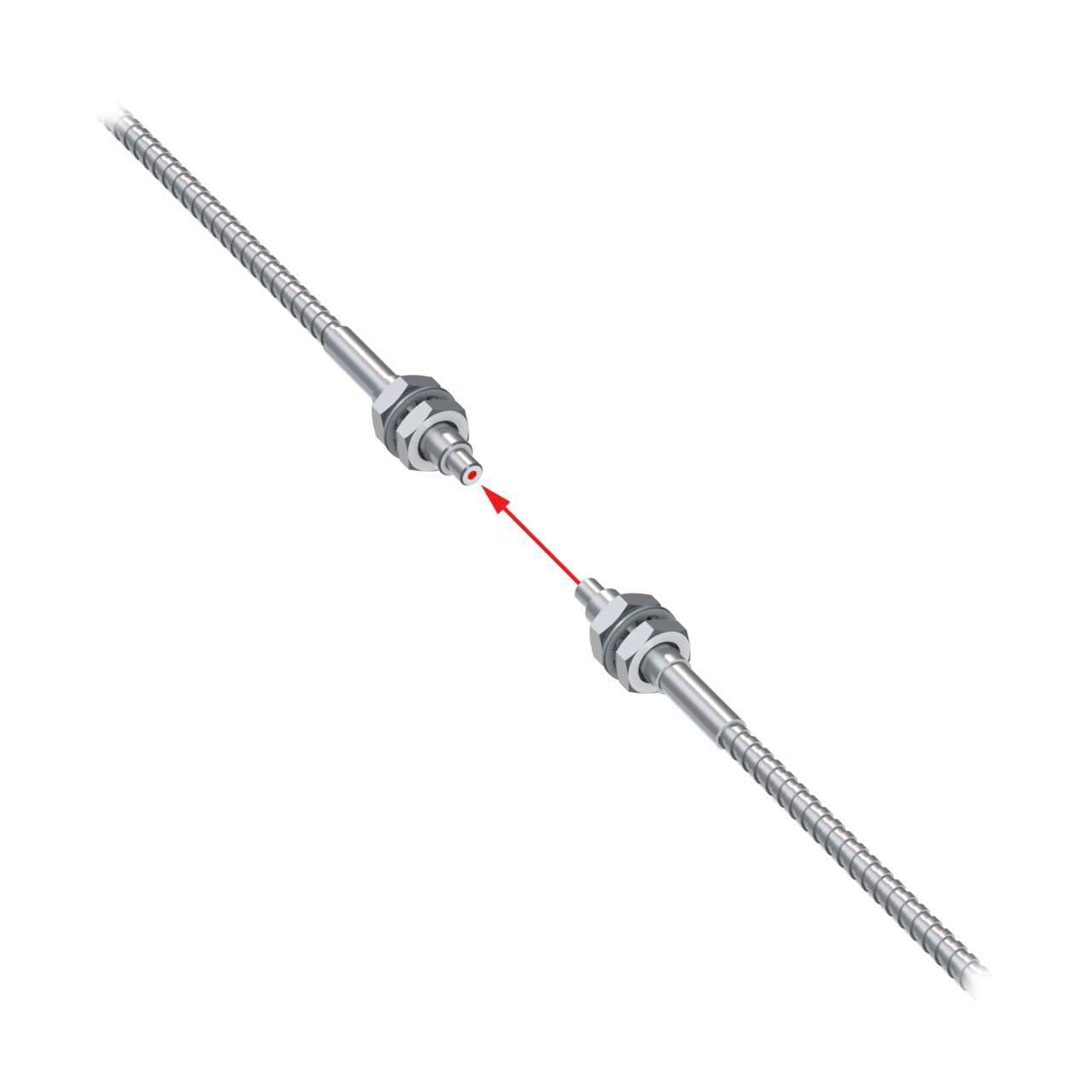

PIT43TSL5-VL Banner Through Beam Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  TW
• Max Distance: DF-G1 (mm)
  1060
• Max Distance: DF-G2 (mm)
  1717
• Max Distance: DF-G3 (mm)
  8233
• Feature: Chemical Resistant
  No
• Measured Max Distance (mm)
  1060
• Fiber Sensing End Size - Mounting Area
  M4
• Tariff Fiber Meters (fbm)
  2
• Application: Liquid Level
  No
• Termination Type
  Plastic Fiber Sensors
• Feature: Small Object Detection
  No
• Application: Vacuum Feed Through
  None
• Feature: Extended Range
  No
• Termination
  Terminated
• Minimum Repeat Bending Endurance
  1000
• Integrated Lens
  No
• Max Temp ( °C)
  70
• Flex Relief
  Yes
• Minimum Bend Radius (mm)
  25
Core Diameter (mm)
1
Sensing End Segment 2
Thread
Retractile
No
Sensing End Segment 1
Thread
Fiber Sensing End Tip
Thread
Fiber Sensing End Size
M2.6
Fiber Length (m)
1
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Sensing Mode (Detailed)
Reflective
Sensing End Material (Specific)
Stainless Steel
Sensing Mode (General)
Opposed
Beam Exit
In-line
Max Range: DF-G3 (mm)
>5m
Fiber Optic Type
Plastic
Housing Style
Round
Quantity Included
2
Primary brand
Banner Engineering
Main function
Fiber sensor
Product series / family name
Fiber sensors
Shape
Cylindrical (threaded) end tip
Material
Plastic fiber Plastic fiber stainless flexible fiber sheath tub.
Sub-range name
Plastic fiber - Vantage Line
Length
3ft / 1m
Design
through-beam system / opposed mode pair of individual fibers Side / right-angled sensing
Order code / Manufacturer SKU
93952
Functions
Fiber optic sensor
Thread size
M4
Equivalent to
PIT43TSL5VL
Diameter
1mm fiber core
Ambient air temperature for operation
+70 °C
