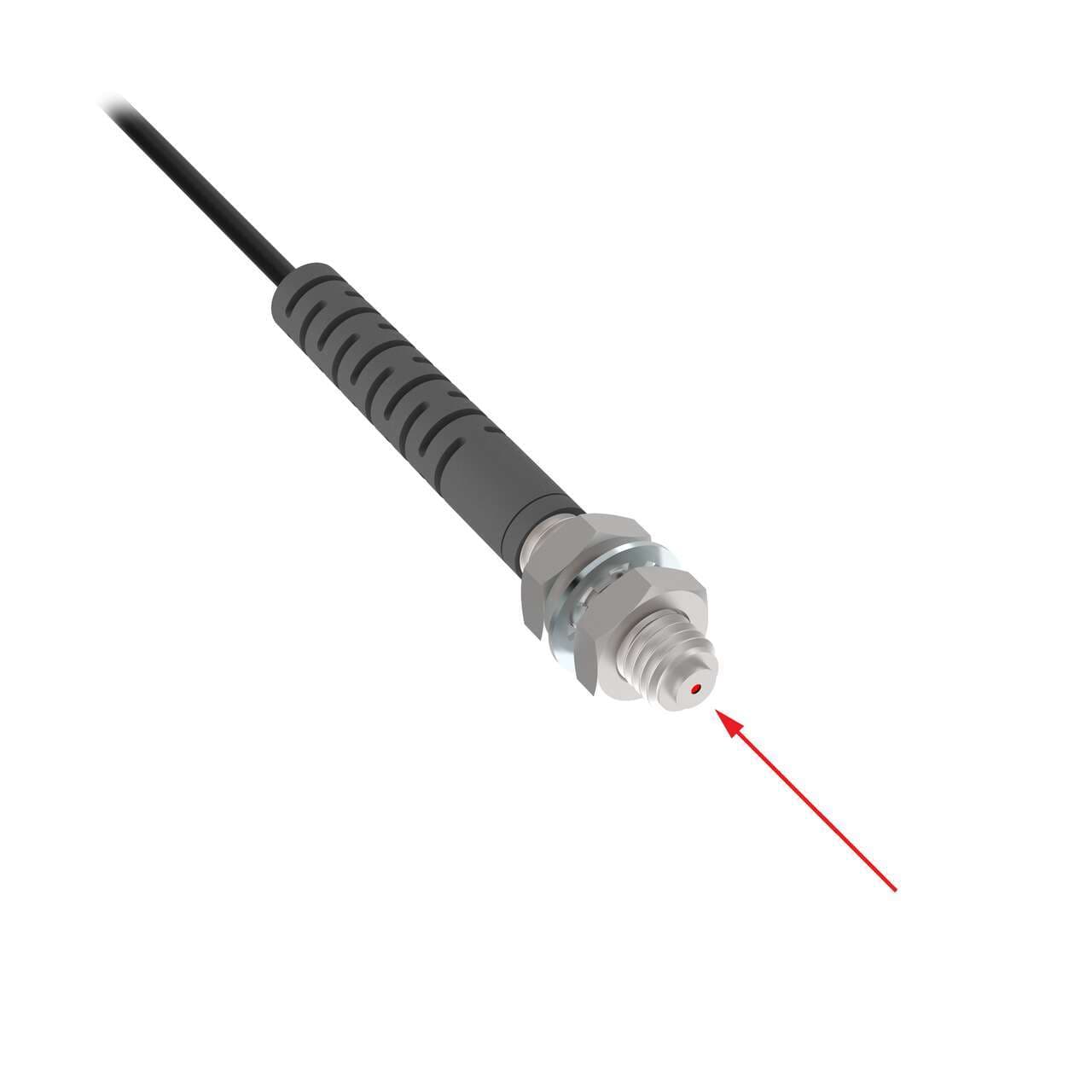

PIT23U-VL Banner Through Beam Sensors

Product Details

• Weight
  342.915552 g
• Country Of Origin
  TW
• Max Distance: DF-G3 (mm)
  1516
• Max Distance: DF-G1 (mm)
  195
• Max Distance: DF-G2 (mm)
  316
• Feature: Small Object Detection
  No
• Termination Type
  Plastic Fiber Sensors
• Application: Liquid Level
  No
• Application: Vacuum Feed Through
  None
• Tariff Fiber Meters (fbm)
  2
• Measured Max Distance (mm)
  195
• Fiber Sensing End Size - Mounting Area
  M3
• Integrated Lens
  No
• Feature: Extended Range
  No
• Minimum Repeat Bending Endurance
  1000
• Feature: Chemical Resistant
  No
• Termination
  Free Cut
• Max Temp ( °C)
  70
• Minimum Bend Radius (mm)
  15
• Core Diameter (mm)
  0.5
Flex Relief
Yes
Retractile
No
Sensing End Segment 1
Thread
Fiber Sensing End Size
M3
Fiber Length (m)
1
Fiber Sensing End Tip
Thread
Fiber Sheathing Material (Jacket)
Polyethylene
Sensing End Material (Specific)
Nickel-Plated Brass
Beam Exit
In-line
Max Range: DF-G3 (mm)
>1m - <=3m
Fiber Optic Type
Plastic
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Reflective
Quantity Included
2
Housing Style
Round
Sub-range name
Plastic fiber - Vantage Line
Primary brand
Banner Engineering
Shape
Cylindrical (threaded) end tip
Ambient air temperature for operation
+70 °C
Functions
Fiber optic sensor
Length
3ft / 1m
Equivalent to
PIT23UVL
Main function
Fiber sensor
Design
through-beam system / opposed mode flex strain relief pair of individual fibers In-line sensing
Product series / family name
Fiber sensors
Diameter
0.5mm fiber core
Thread size
M3
Order code / Manufacturer SKU
88131
Material
Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
