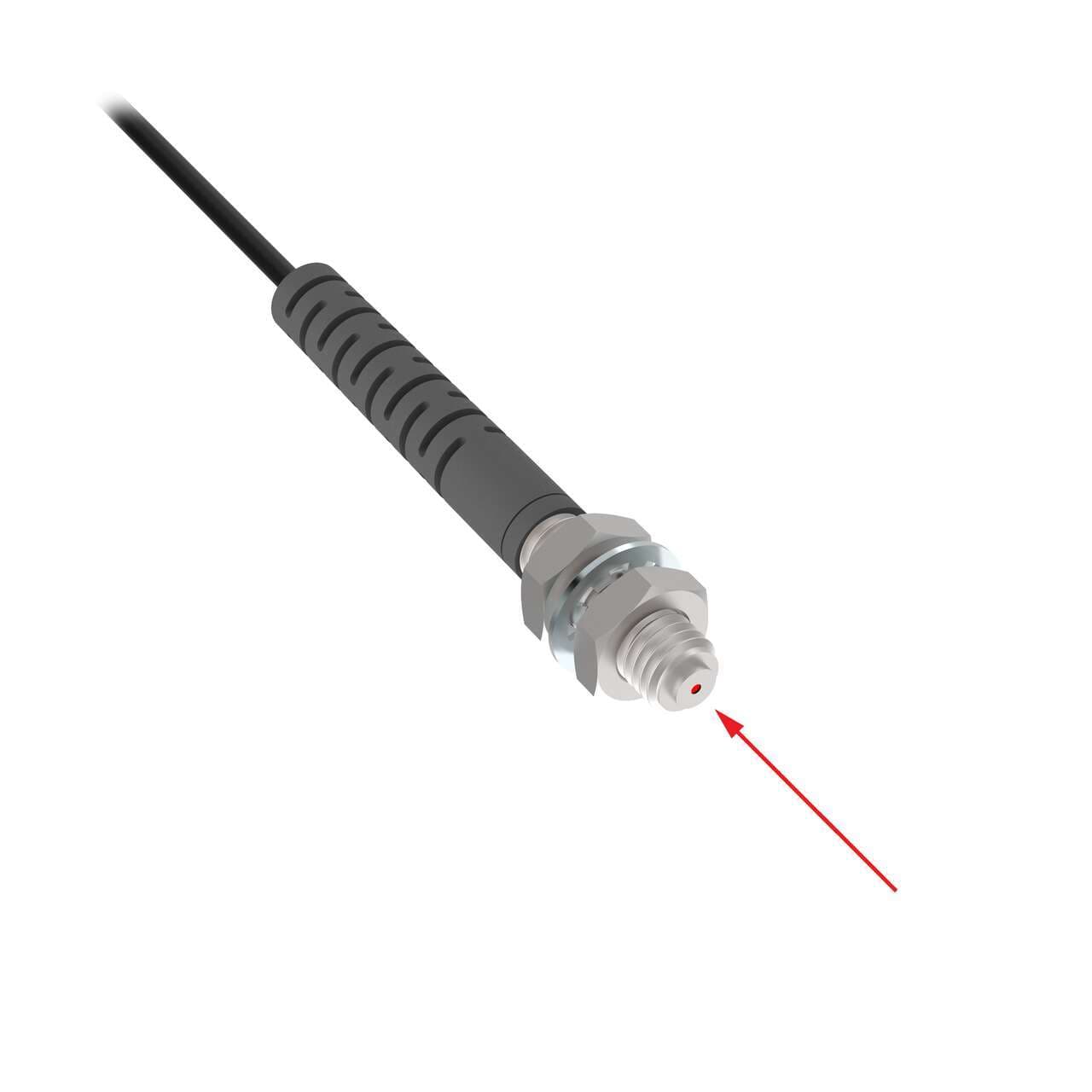

PIT26U-VL Banner Through Beam Sensors

Product Details

• Weight
  98.7016192 g
• Country Of Origin
  TW
• Measured Max Distance (mm)
  196
• Feature: Chemical Resistant
  No
• Max Distance: DF-G2 (mm)
  318
• Max Distance: DF-G3 (mm)
  1523
• Max Distance: DF-G1 (mm)
  196
• Tariff Fiber Meters (fbm)
  4
• Termination Type
  Plastic Fiber Sensors
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Fiber Sensing End Size - Mounting Area
  M3
• Feature: Small Object Detection
  No
• Feature: Extended Range
  No
• Minimum Repeat Bending Endurance
  1000
• Integrated Lens
  No
• Termination
  Free Cut
• Minimum Bend Radius (mm)
  15
• Core Diameter (mm)
  0.5
• Flex Relief
  Yes
Max Temp ( °C)
70
Retractile
No
Sensing End Segment 1
Thread
Fiber Sensing End Size
M3
Fiber Length (m)
2
Fiber Sensing End Tip
Thread
Fiber Optic Type
Plastic
Sensing End Material (Specific)
Nickel-Plated Brass
Fiber Sheathing Material (Jacket)
Polyethylene
Sensing Mode (Detailed)
Reflective
Max Range: DF-G3 (mm)
>1m - <=3m
Quantity Included
2
Beam Exit
In-line
Sensing Mode (General)
Opposed
Housing Style
Round
Primary brand
Banner Engineering
Diameter
0.5mm fiber core
Order code / Manufacturer SKU
88132
Main function
Fiber sensor
Thread size
M3
Material
Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
Functions
Fiber optic sensor
Equivalent to
PIT26UVL
Sub-range name
Plastic fiber - Vantage Line
Design
through-beam system / opposed mode flex strain relief pair of individual fibers In-line sensing
Product series / family name
Fiber sensors
Shape
Cylindrical (threaded) end tip
Length
6ft / 2m
Ambient air temperature for operation
+70 °C
