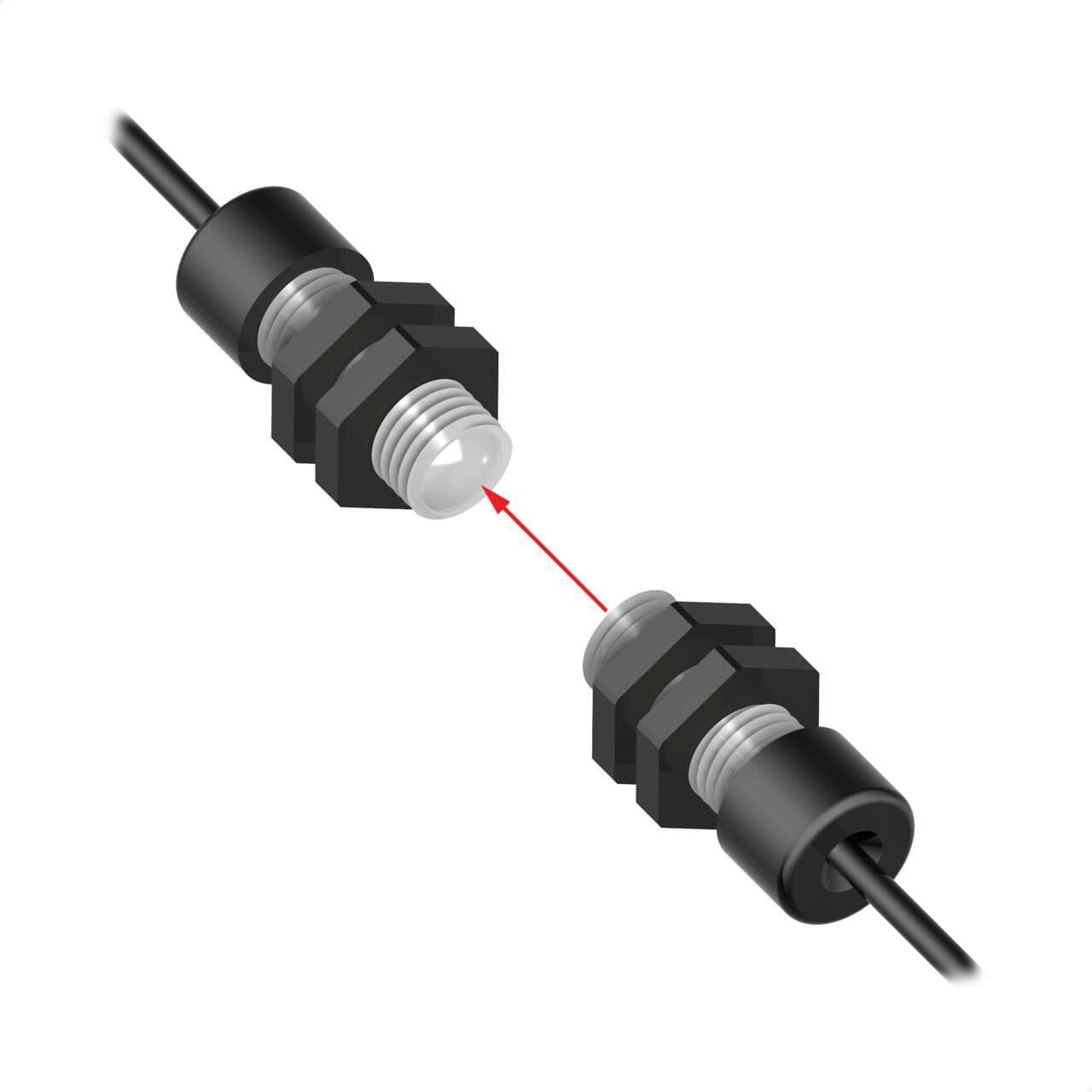

PIL46U Banner Through Beam Sensors

Product Details

• Weight
  55.791816 g
• Country Of Origin
  JP
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Fiber Sensing End Size - Mounting Area
  M8
• Measured Max Distance (mm)
  No Data
• Integrated Lens
  Yes
• Feature: Chemical Resistant
  No
• Minimum Repeat Bending Endurance
  10000
• Termination Type
  Plastic Fiber Sensors
• Application: Vacuum Feed Through
  None
• Tariff Fiber Meters (fbm)
  4
• Application: Liquid Level
  No
• Feature: Small Object Detection
  No
• Max Temp ( °C)
  70
• Feature: Extended Range
  Yes
• Retractile
  No
• Core Diameter (mm)
  1
• Minimum Bend Radius (mm)
  25
Flex Relief
No
Termination
Free Cut
Sensing End Segment 2
Lens
Fiber Sensing End Size
M8
Sensing End Segment 1
Thread
Sensing Mode (Detailed)
Reflective
Fiber Length (m)
2
Sensing Mode (General)
Opposed
Housing Style
Round
Sensing End Material (Specific)
Polyethylene
Fiber Sheathing Material (Jacket)
Polyethylene
Fiber Sensing End Tip
Lens
Fiber Optic Type
Plastic
Quantity Included
2
Beam Exit
In-line
Main function
Fiber sensor
Diameter
1mm fiber core
Order code / Manufacturer SKU
34080
Product series / family name
Fiber sensors
Thread size
M8
Length
6ft / 2m
Sub-range name
Plastic fiber series
Material
Plastic sensing end Plastic fiber Polyethylene fiber sheath
Design
through-beam system / opposed mode end tip lns. pair of individual fibers
Ambient air temperature for operation
+70 °C
Primary brand
Banner Engineering
Functions
Fiber optic sensor
