PIA26UHFM13X7 Banner Through Beam Sensors

Name: PIA26UHFM13X7
Brand: Banner
Price: 266 USD
Availability: BackOrder

Part#:PIA26UHFM13X7

Alt. Part#:803667

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 0.5 mm; Fiber Length 2 m; Side Exit Flat Pack 13 mm X 7 mm; DuraBend, Free cut

Product Details

Weight
18.14368 g
Country Of Origin
JP
Max Distance: DF-G1 (mm)
111
Termination Type
Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area
13.0 x 7.0 mm
Measured Max Distance (mm)
111
Max Distance: DF-G3 (mm)
864
Max Distance: DF-G2 (mm)
180
Tariff Fiber Meters (fbm)
4
Application: Vacuum Feed Through
None
Application: Liquid Level
No
Feature: Small Object Detection
No
Feature: Chemical Resistant
No
Feature: Extended Range
No
Integrated Lens
No
Termination
Free Cut
Max Temp ( °C)
70
Minimum Repeat Bending Endurance
2000
Minimum Bend Radius (mm)
1
Flex Relief
No

Sensing End Segment 2

Sideview

Sensing End Segment 1

Rectangle

Fiber Sensing End Size

13.0 x 7.0 mm

Core Diameter (mm)

0.5

Retractile

Fiber Length (m)

Fiber Sensing End Tip

Sideview

Fiber Sheathing Material (Jacket)

Polyethylene

Sensing Mode (Detailed)

Reflective

Beam Exit

Right Angle

Fiber Optic Type

Plastic

Sensing End Material (Specific)

Stainless Steel

Sensing Mode (General)

Opposed

Housing Style

Rectangular

Quantity Included

Max Range: DF-G3 (mm)

>500mm - <=1000mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIA26UHFM13X7 on Powermatic Associates is $266.00. Order now.

About the product

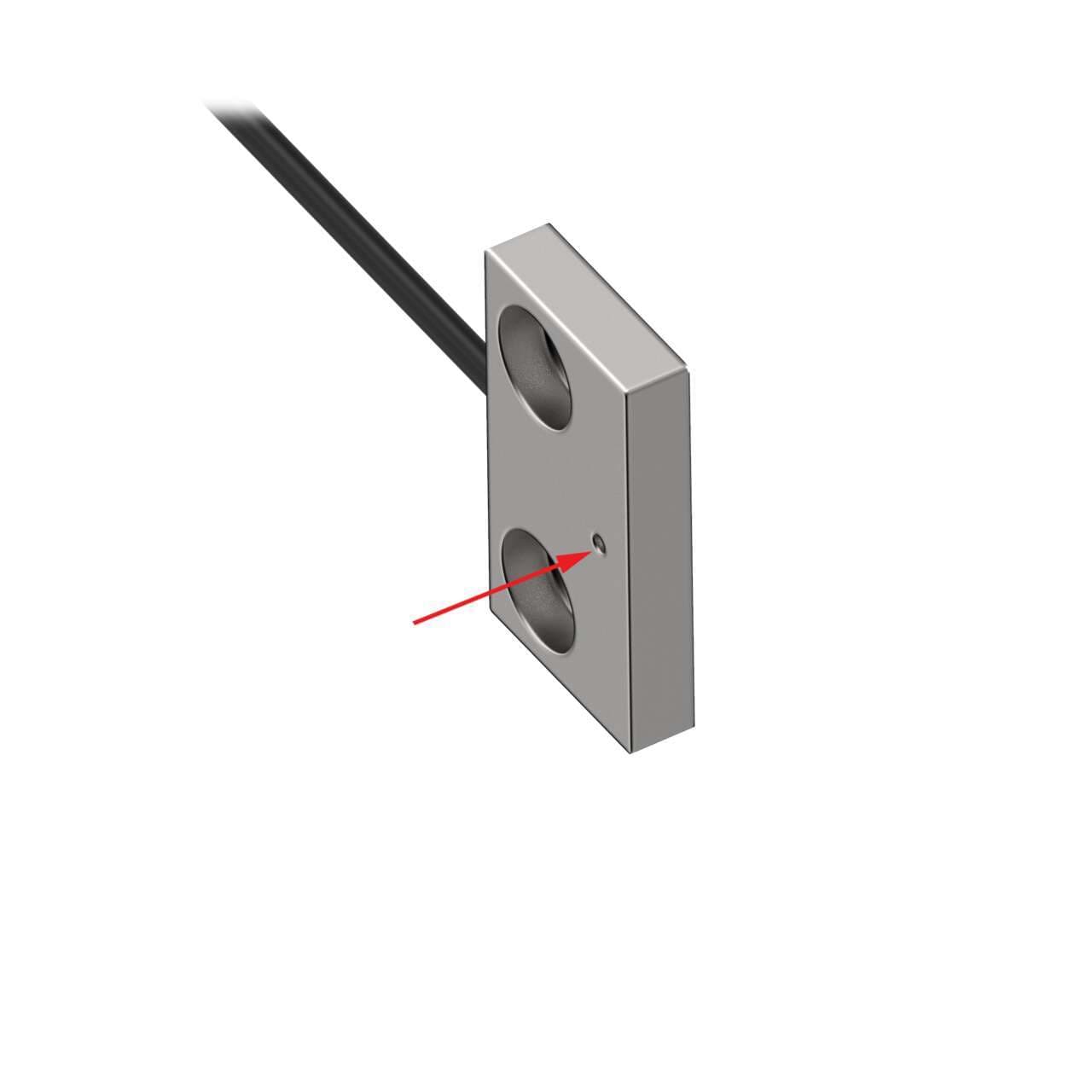

Banner Engineering PIA26UHFM13X7 is a fiber sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor is part of the Plastic fiber series and features a cylindrical (smooth) probe tip with a diameter of 0.91mm at the end and a 0.5mm fiber core. The sensing end is made of stainless steel, while the fiber is plastic, and the sheath is polyethylene (PE), ensuring durability and compatibility with various environments. The fiber sensor operates effectively at an ambient air temperature up to +70°C and has a total length of 6ft (2m), facilitating flexible installation options.

$266.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$266.00

$266.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty
