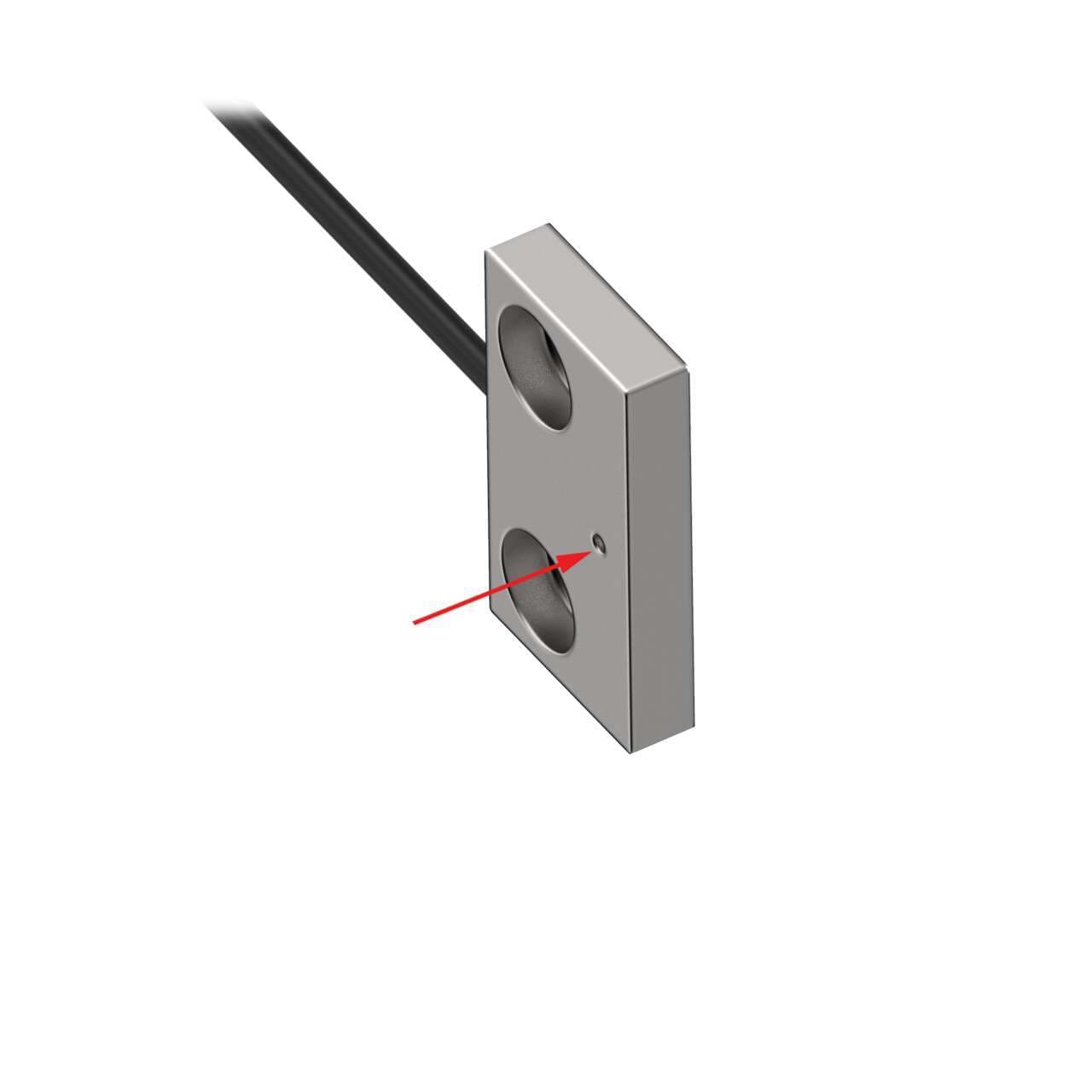

PIA23UHFM13X7 Banner Through Beam Sensors

Name: PIA23UHFM13X7
Brand: Banner
Price: 222 USD
Availability: BackOrder

Part#:PIA23UHFM13X7

Alt. Part#:74740

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 0.5 mm; Fiber Length 1 m; Angle; DuraBend, Free cut

Product Details

Weight
18.14368 g
Country Of Origin
JP
Max Distance: DF-G1 (mm)
No Data
Max Distance: DF-G2 (mm)
No Data
Max Distance: DF-G3 (mm)
No Data
Fiber Sensing End Size - Mounting Area
13.0 x 7.0 mm
Measured Max Distance (mm)
No Data
Tariff Fiber Meters (fbm)
2
Termination Type
Plastic Fiber Sensors
Application: Vacuum Feed Through
None
Feature: Small Object Detection
No
Application: Liquid Level
No
Feature: Chemical Resistant
No
Feature: Extended Range
No
Integrated Lens
No
Max Temp ( °C)
70
Termination
Free Cut
Minimum Repeat Bending Endurance
2000
Minimum Bend Radius (mm)
1
Sensing End Segment 2
Sideview

Sensing End Segment 1

Rectangle

Fiber Length (m)

Fiber Sensing End Size

13.0 x 7.0 mm

Core Diameter (mm)

0.5

Flex Relief

Retractile

Fiber Sensing End Tip

Sideview

Sensing Mode (Detailed)

Reflective

Sensing End Material (Specific)

Stainless Steel

Fiber Sheathing Material (Jacket)

Polyethylene

Sensing Mode (General)

Opposed

Beam Exit

Right Angle

Fiber Optic Type

Plastic

Quantity Included

Housing Style

Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIA23UHFM13X7 on Powermatic Associates is $222.00. Order now.

About the product

Banner Engineering PIA23UHFM13X7 is a fiber sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor falls under the Plastic fiber series, equipped with a 0.5mm fiber core diameter and a 13x7mm rectangular sensing area. The sensing end is made of stainless steel, while the fiber is encased in a plastic sheath made of polyethylene (PE), ensuring durability and compatibility with various industrial environments. The total length of the fiber is 6ft (approximately 2 meters), and it is engineered to operate efficiently in ambient air temperatures up to +70°C.

$222.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$222.00

$222.00 each
