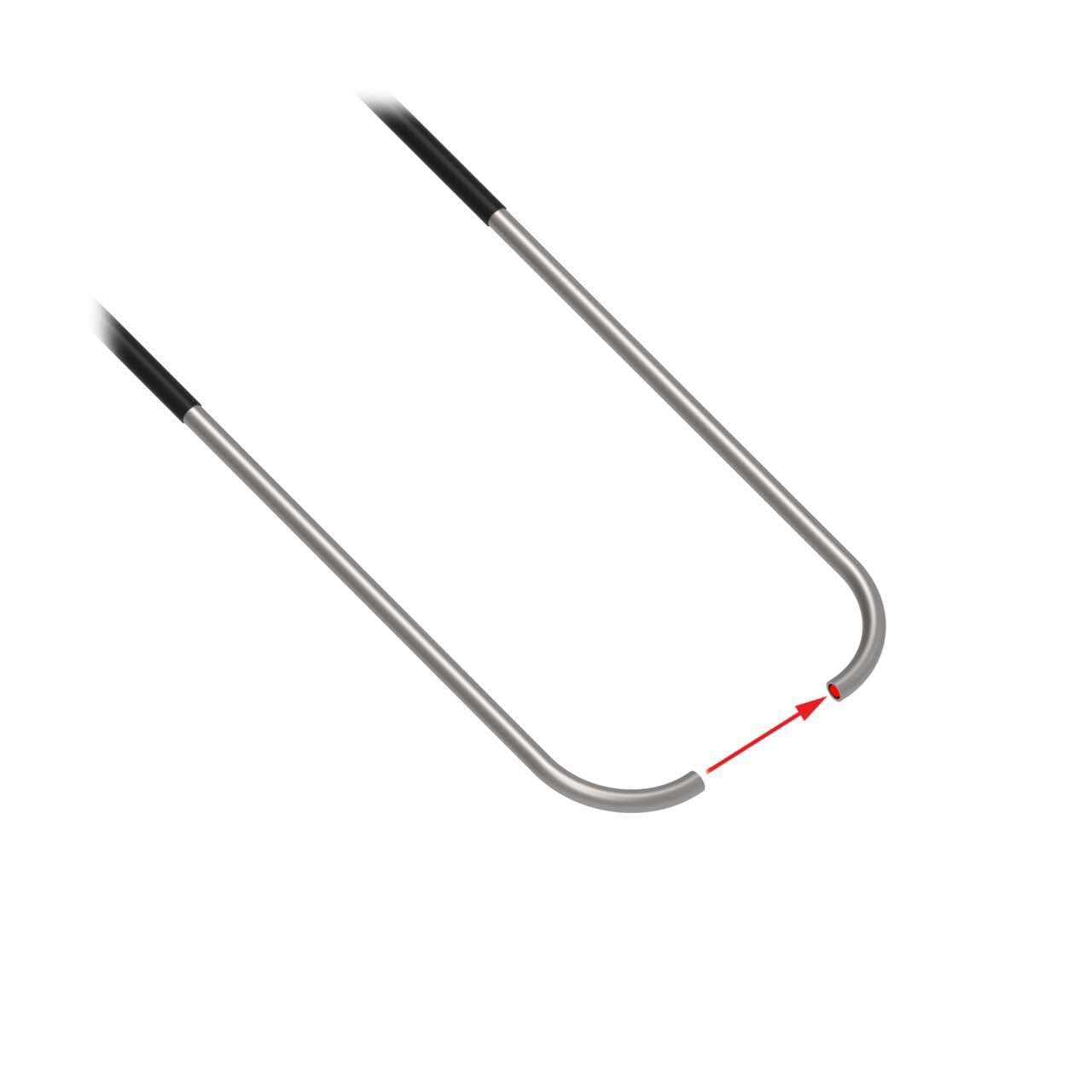

PIA26UMHL.60 Banner Through Beam Sensors
Part#:PIA26UMHL.60
Alt. Part#:65895
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Opposed Mode; Core Dia.: 0.5 mm; Fiber Length 2 m; Angle; Free cut
Product Details
- Weight 36.28736 g
- Country Of Origin JP
- Max Distance: DF-G1 (mm) No Data
- Measured Max Distance (mm) No Data
- Fiber Sensing End Size - Mounting Area 0.9 mm
- Max Distance: DF-G2 (mm) No Data
- Max Distance: DF-G3 (mm) No Data
- Tariff Fiber Meters (fbm) 4
- Termination Type Plastic Fiber Sensors
- Application: Vacuum Feed Through None
- Application: Liquid Level No
- Integrated Lens No
- Feature: Chemical Resistant No
- Feature: Small Object Detection No
- Feature: Extended Range No
- Max Temp ( °C) 70
- Minimum Repeat Bending Endurance 5000
- Core Diameter (mm) 0.5
- Termination Free Cut
- Minimum Bend Radius (mm) 10
- Retractile No
- Sensing End Segment 1 Angle
- Flex Relief No
- Sensing End Segment 2 Probe
- Fiber Sensing End Size 0.9 mm
- Fiber Length (m) 2
- Sensing Mode (General) Opposed
- Fiber Sensing End Tip Probe
- Sensing End Material (Specific) Stainless Steel
- Quantity Included 2
- Beam Exit Right Angle
- Sensing Mode (Detailed) Reflective
- Fiber Sheathing Material (Jacket) Polyethylene
- Fiber Optic Type Plastic
- Housing Style Round
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIA26UMHL.60 on Powermatic Associates is $111.00. Order now.
About the product
Banner Engineering PIA26UMHL.60 is a fiber optic sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers positioned side by side with right-angled sensing. It features a 1mm fiber core diameter and is part of the Plastic fiber series. The sensor has a rectangular shape with a stainless steel sensing end, and the fiber is encased in a polyethylene (PE) fiber sheath. It is designed to operate in ambient air temperatures up to +70°C. The total length of the fiber is 15ft / 5m.
