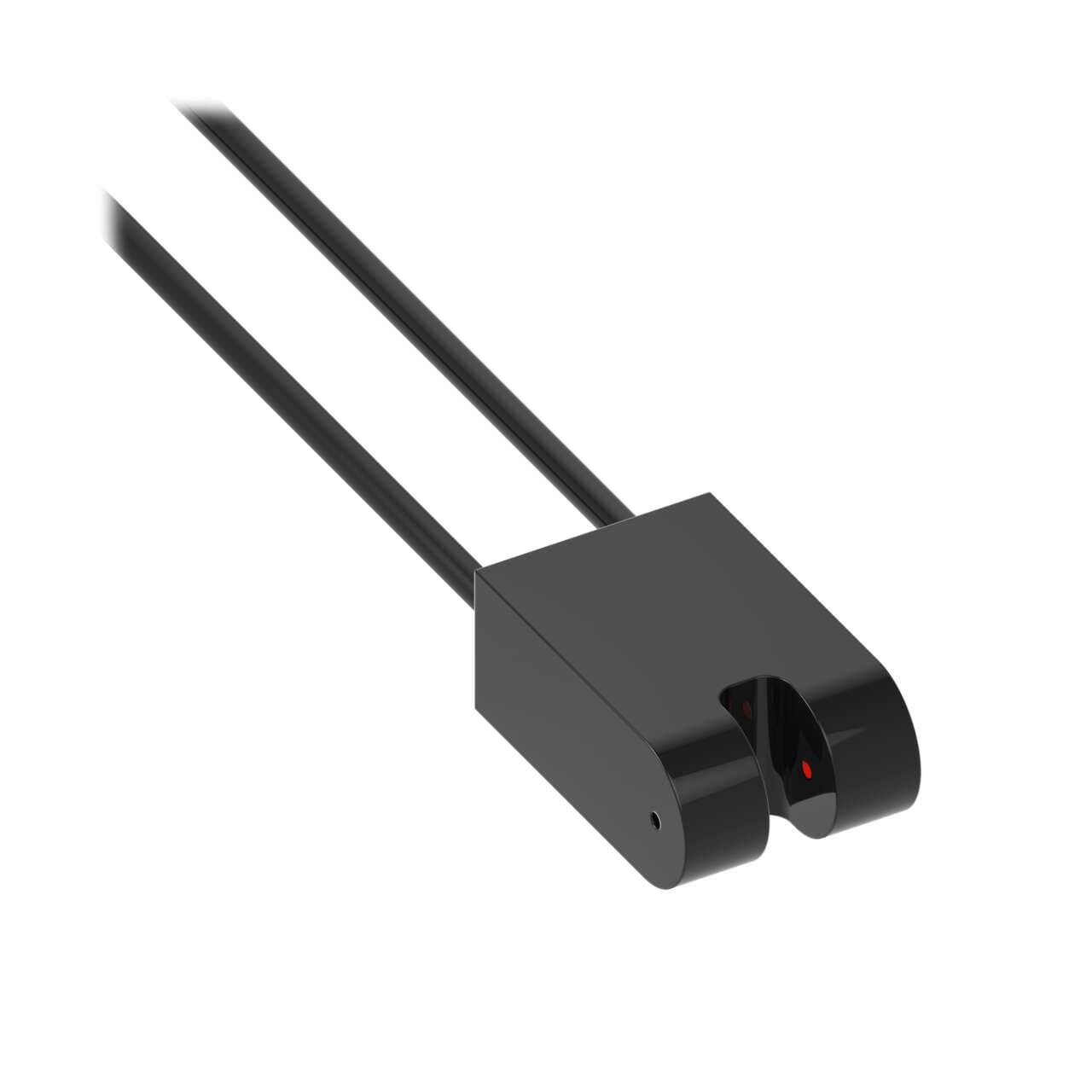

PDIS43UM4.5M3-10 Banner Through Beam Sensors

PDIS43UM4.5M3-10 on Powermatic Associates
Banner

Part#:PDIS43UM4.5M3-10

Alt. Part#:65922

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 1 m; Slot; Free cut

Product Details

  • Weight
    344.72992 g
  • Country Of Origin
    JP
  • Measured Max Distance (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Termination Type
    Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area
    16.0 x 24.9 mm
  • Slot Width (mm)
    4.6
  • Feature: Extended Range
    No
  • Feature: Chemical Resistant
    No
  • Tariff Fiber Meters (fbm)
    2.04
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Minimum Repeat Bending Endurance
    1000
  • Integrated Lens
    No
  • Max Temp ( °C)
    70
  • Retractile
    No
  • Termination
    Free Cut
  • Flex Relief
    No
  • Minimum Bend Radius (mm)
    2
  • Sensing End Segment 1
    Slot
  • Core Diameter (mm)
    1
  • Fiber Sensing End Size
    16.0 x 24.9 mm
  • Fiber Length (m)
    1
  • Sensing End Material (Specific)
    Polyethylene
  • Sensing Mode (Detailed)
    Slot
  • Fiber Sensing End Tip
    Slot
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Beam Exit
    Right Angle
  • Fiber Optic Type
    Plastic
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Slot
  • Quantity Included
    1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PDIS43UM4.5M3-10 on Powermatic Associates is $2,584.00. Order now.

About the product

Banner Engineering PDIS43UM4.5M3-10 is a fiber optic sensor designed for precise detection tasks. It operates within an ambient air temperature up to +70°C and features a through-beam system, also known as an opposed mode pair of individual fibers positioned side by side with right-angled sensing. The sensor is part of the Plastic fiber series, characterized by a 1mm fiber core diameter. It has a slot shape with the sensing end and the fiber made of plastic, complemented by a Steelskin fiber sheath for added durability. The total length of the fiber is 3 feet or approximately 1 meter.
