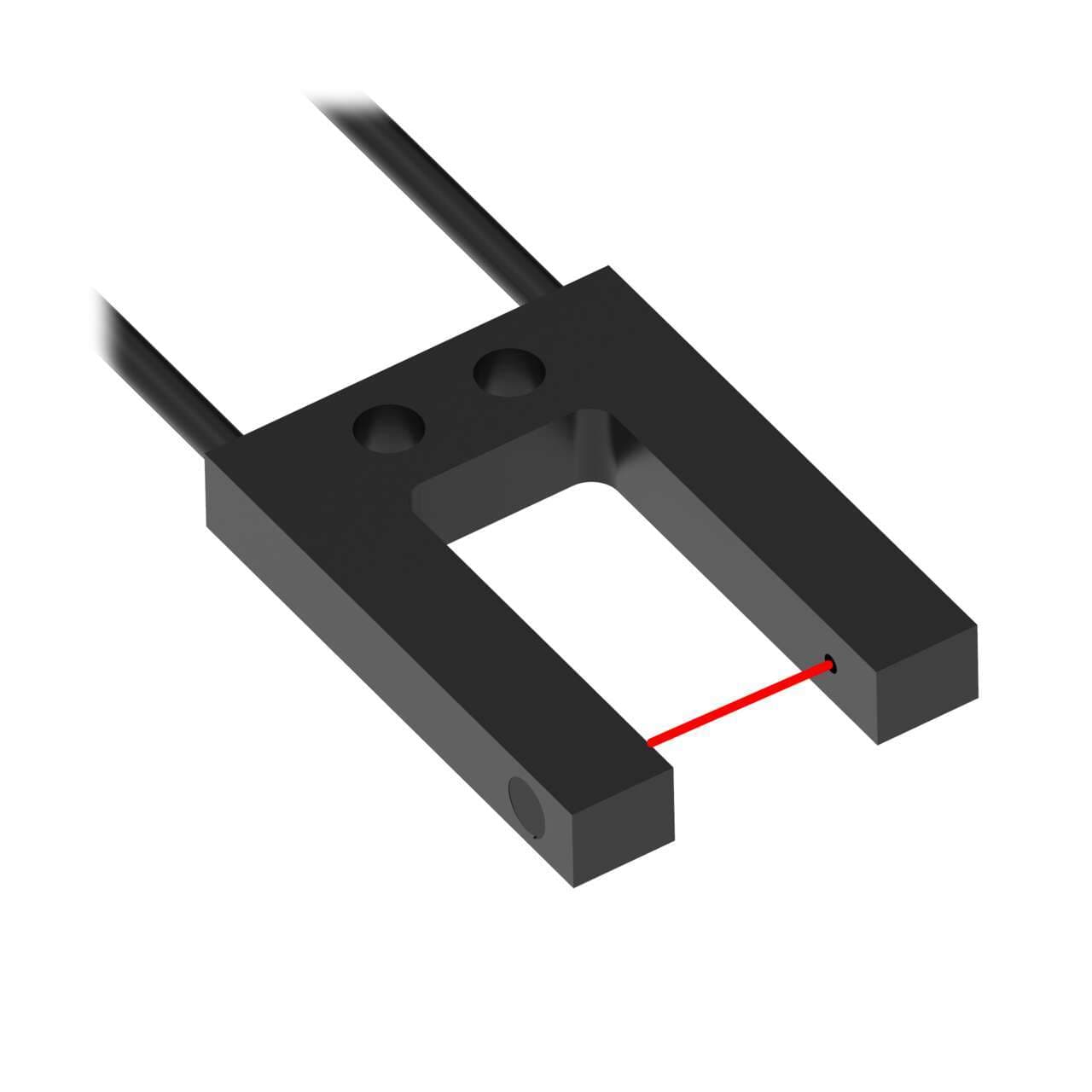

PDIS430UM12 Banner Through Beam Sensors

PDIS430UM12 on Powermatic Associates
Banner

Part#:PDIS430UM12

Alt. Part#:74876

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 9 m; Slot; Free cut

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    JP
  • Fiber Sensing End Size - Mounting Area
    23.9 x 32.0 mm
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Slot Width (mm)
    12
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    18
  • Termination Type
    Plastic Fiber Sensors
  • Minimum Repeat Bending Endurance
    1000
  • Feature: Chemical Resistant
    No
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Integrated Lens
    No
  • Feature: Extended Range
    No
  • Termination
    Free Cut
  • Application: Liquid Level
    No
  • Max Temp ( °C)
    70
  • Minimum Bend Radius (mm)
    2
  • Core Diameter (mm)
    1
  • Flex Relief
    No
  • Retractile
    No
  • Fiber Sensing End Size
    23.9 x 32.0 mm
  • Sensing End Segment 1
    Slot
  • Fiber Length (m)
    9.144
  • Quantity Included
    1
  • Sensing End Material (Specific)
    Polyethylene
  • Housing Style
    Slot
  • Fiber Sensing End Tip
    Slot
  • Fiber Optic Type
    Plastic
  • Sensing Mode (General)
    Opposed
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Beam Exit
    Right Angle
  • Sensing Mode (Detailed)
    Slot

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PDIS430UM12 on Powermatic Associates is $267.00. Order now.

About the product

Banner Engineering PDIS430UM12 is a fiber optic sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers positioned side by side with right-angled sensing. It features a 1mm fiber core diameter and is part of the Plastic fiber series. The sensor is equipped with a slot shape, and its construction includes a plastic sensing end, along with a polyethylene (PE) fiber sheath. It has a total length of 20ft (6m) and is specified to operate at an ambient air temperature of up to +70°C.

PDIS430UM12 Related Documents

PDIS4 SERIES UNTERMINATED 12MM SLOT-1630954964598.pdfPDIS4 SERIES UNTERMINATED 12MM SLOT-1630954964593.stp
