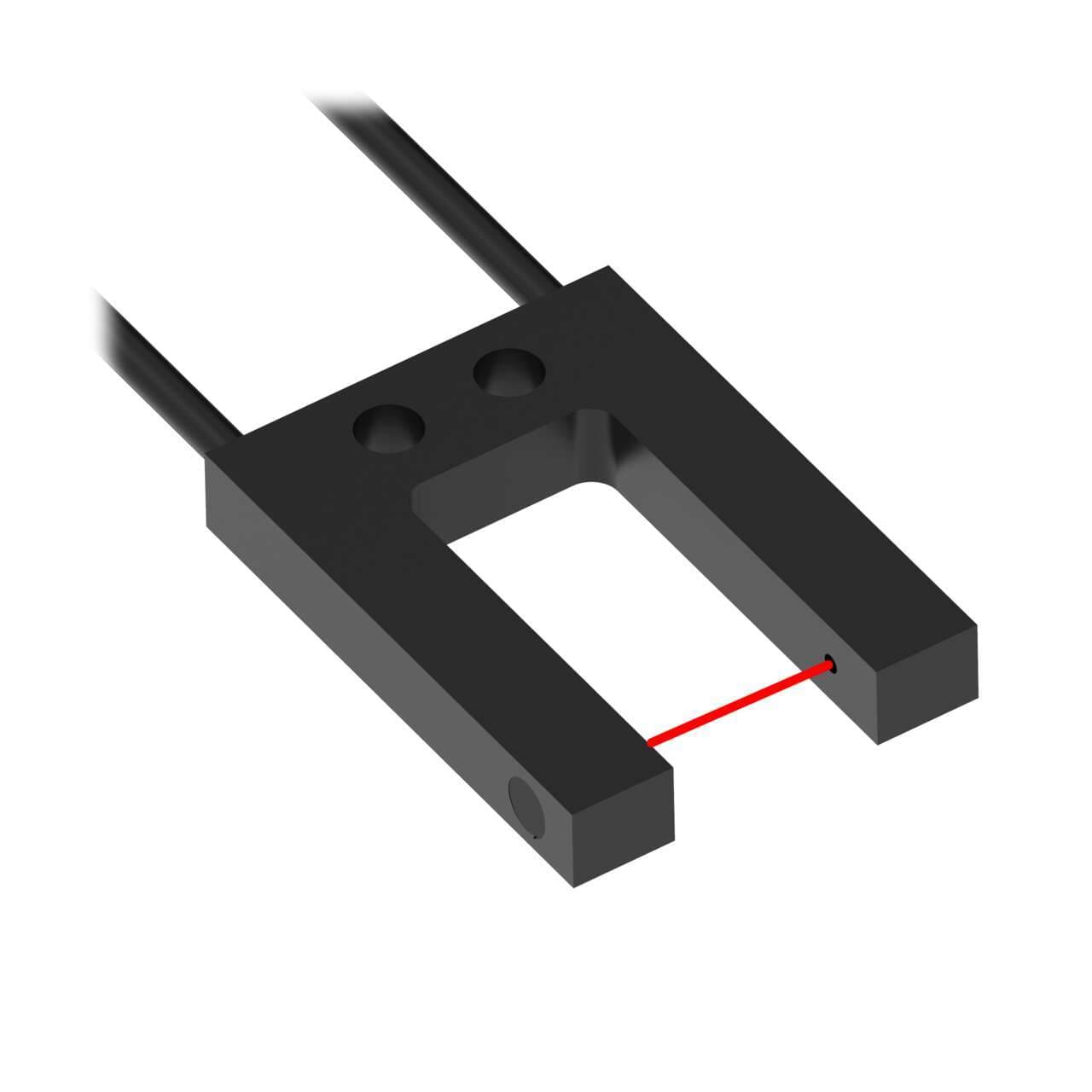

PDIS415UM12 Banner Through Beam Sensors

Name: PDIS415UM12
Brand: Banner
Price: 179 USD
Availability: BackOrder

Part#:PDIS415UM12

Alt. Part#:56104

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 5 m; Slot; Free cut

Product Details

Weight
63.50288 g
Country Of Origin
JP
Fiber Sensing End Size - Mounting Area
23.9 x 32.0 mm
Measured Max Distance (mm)
No Data
Slot Width (mm)
12
Max Distance: DF-G2 (mm)
No Data
Max Distance: DF-G3 (mm)
No Data
Max Distance: DF-G1 (mm)
No Data
Termination Type
Plastic Fiber Sensors
Tariff Fiber Meters (fbm)
10
Application: Vacuum Feed Through
None
Application: Liquid Level
No
Feature: Chemical Resistant
No
Minimum Repeat Bending Endurance
1000
Feature: Extended Range
No
Feature: Small Object Detection
No
Integrated Lens
No
Max Temp ( °C)
70
Termination
Free Cut
Flex Relief
No

Minimum Bend Radius (mm)

Sensing End Segment 1

Slot

Core Diameter (mm)

Retractile

Fiber Sensing End Size

23.9 x 32.0 mm

Housing Style

Slot

Fiber Length (m)

4.572

Fiber Optic Type

Plastic

Fiber Sensing End Tip

Slot

Sensing Mode (Detailed)

Slot

Sensing End Material (Specific)

Polyethylene

Fiber Sheathing Material (Jacket)

Polyethylene

Beam Exit

Right Angle

Quantity Included

Sensing Mode (General)

Opposed

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PDIS415UM12 on Powermatic Associates is $179.00. Order now.

About the product

Banner Engineering PDIS415UM12 is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers positioned side by side with right-angled sensing. It belongs to the Plastic fiber series, characterized by a 1mm fiber core diameter and a slot shape. The sensor is equipped with a plastic sensing end and a polyethylene (PE) fiber sheath, ensuring compatibility with various industrial environments. It has a notable length of 30ft (9m) and is specified to operate effectively in ambient air temperatures up to +70°C.
