PBT23U-VL

Banner

Product Lifecycle: Active

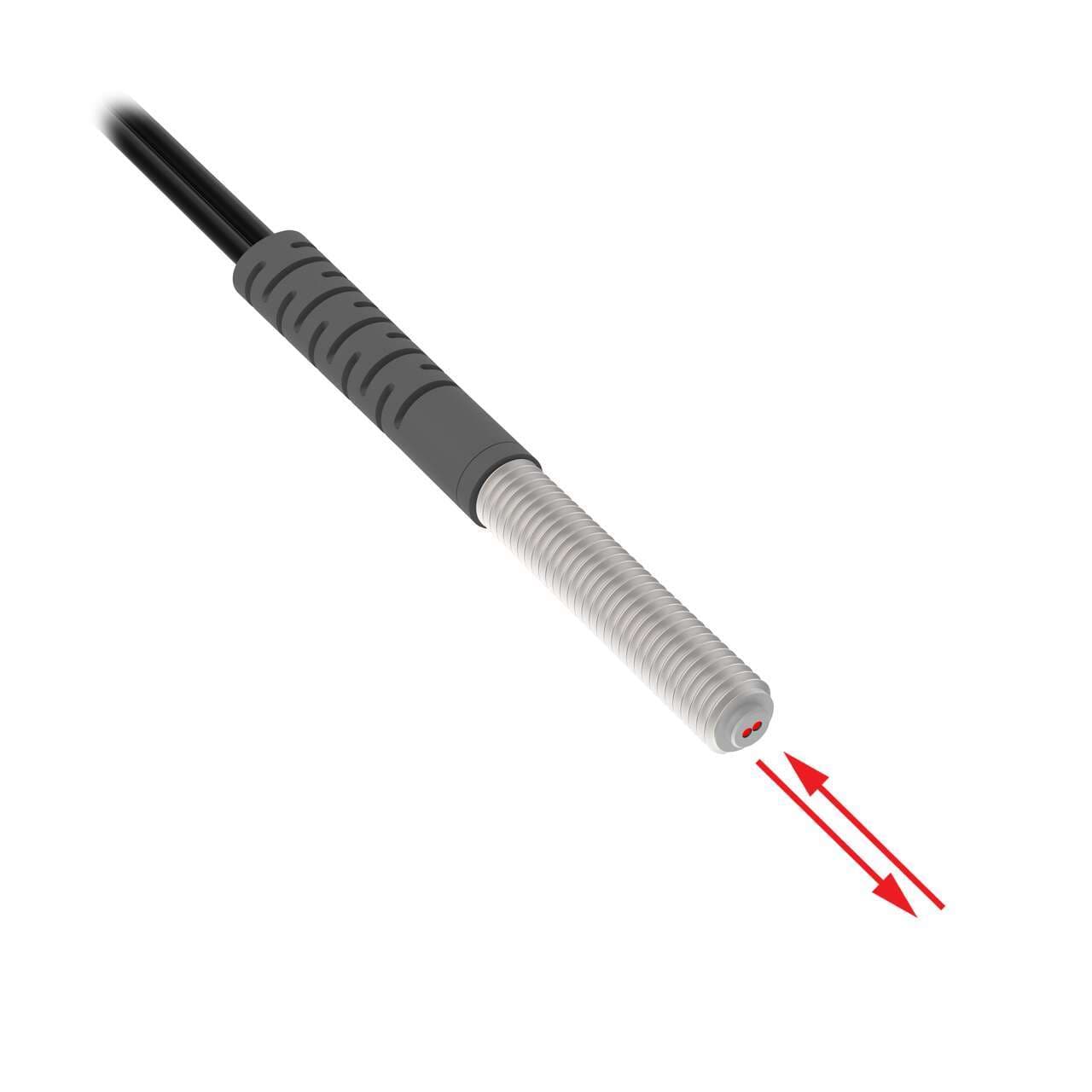

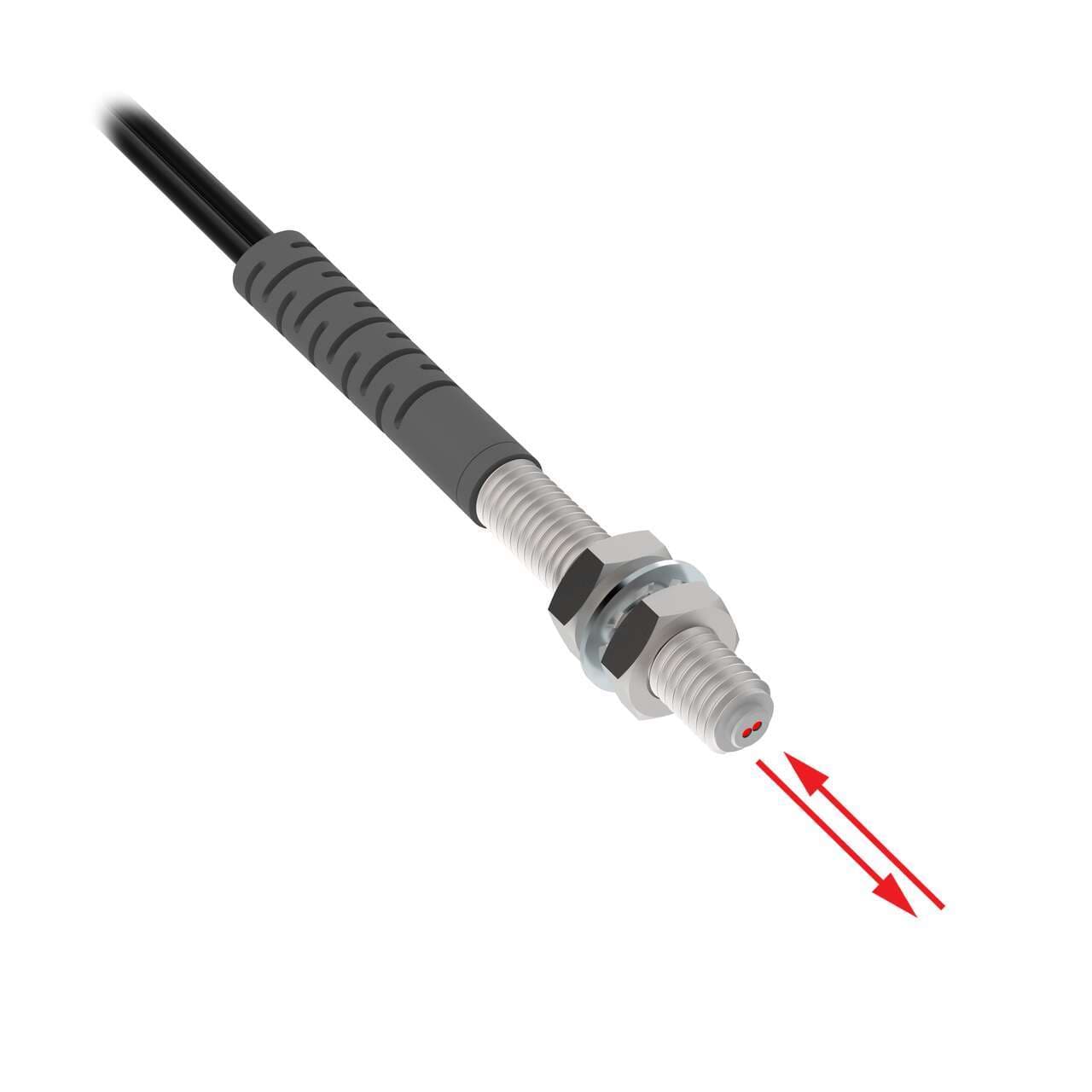

Banner Engineering PBT23U-VL is a fiber optic sensor designed for diffuse-reflective system applications, featuring a flex strain relief and bifurcated fiber in-line sensing. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber (Vantage Line) series and is equipped with a 0.5mm fiber core. The cylindrical (threaded) end tip is made of stainless steel, while the fiber is composed of plastic, and the sheath is polyethylene (PE), ensuring durability and protection. The total length of the sensor is 3ft / 1m, accommodating various installation requirements.

PBT23U-VL

Banner Engineering PBT23U-VL is a fiber optic sensor designed for diffuse-reflective system applications, featuring a flex strain relief and bifurcated fiber in-line sensing. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber (Vantage Line) series and is equipped with a 0.5mm fiber core. The cylindrical (threaded) end tip is made of stainless steel, while the fiber is composed of plastic, and the sheath is polyethylene (PE), ensuring durability and protection. The total length of the sensor is 3ft / 1m, accommodating various installation requirements.

PBT2 VALUE LINE SERIES UNTERMINATED.stp

PBT2 VALUE LINE SERIES UNTERMINATED.pdf

Product details

PBT2 VALUE LINE SERIES UNTERMINATED.stp

PBT2 VALUE LINE SERIES UNTERMINATED.pdf

Max Distance: DF-G2 (mm)113
Measured Max Distance (mm)70
Max Distance: DF-G3 (mm)544
Max Distance: DF-G1 (mm)70
Tariff Fiber Meters (fbm)2
Termination TypePlastic Fiber Sensors

Application: Vacuum Feed ThroughNone

Application: Liquid LevelNo

Fiber Sensing End Size - Mounting AreaM3

Feature: Small Object DetectionNo

Minimum Repeat Bending Endurance1000

Feature: Chemical ResistantNo

Sensing End Segment 1Thread

Feature: Extended RangeNo

Flex ReliefYes

TerminationFree Cut

RetractileNo

Max Temp ( °C)70

Minimum Bend Radius (mm)15

Core Diameter (mm)0.5

Integrated LensNo

Fiber Length (m)1

Fiber Sensing End TipThread

Fiber Sensing End SizeM3

Housing StyleRound

Sensing End Material (Specific)Nickel-Plated Brass

Fiber Sheathing Material (Jacket)Polyethylene

Quantity Included1

Fiber Optic TypePlastic

Sensing Mode (Detailed)Reflective

Max Range: DF-G3 (mm)>500mm - <=1000mm

Beam ExitIn-line

Sensing Mode (General)Diffuse

Primary brandBanner Engineering

Designdiffuse-reflective system flex strain relief Bifurcated fiber In-line sensing

MaterialStainless steel sensing end Plastic fiber Polyethylene fiber sheath

Equivalent toPBT23UVL

Main functionFiber sensor

ShapeCylindrical (threaded) end tip

Diameter0.5mm fiber core

Sub-range namePlastic fiber - Vantage Line

Ambient air temperature for operation+70 °C

FunctionsFiber optic sensor

Length3ft / 1m

Product series / family nameFiber sensors

Thread sizeM3

Order code / Manufacturer SKU87531
