PBT26UMSS on Powermatic Associates
Banner

Part#:PBT26UMSS

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

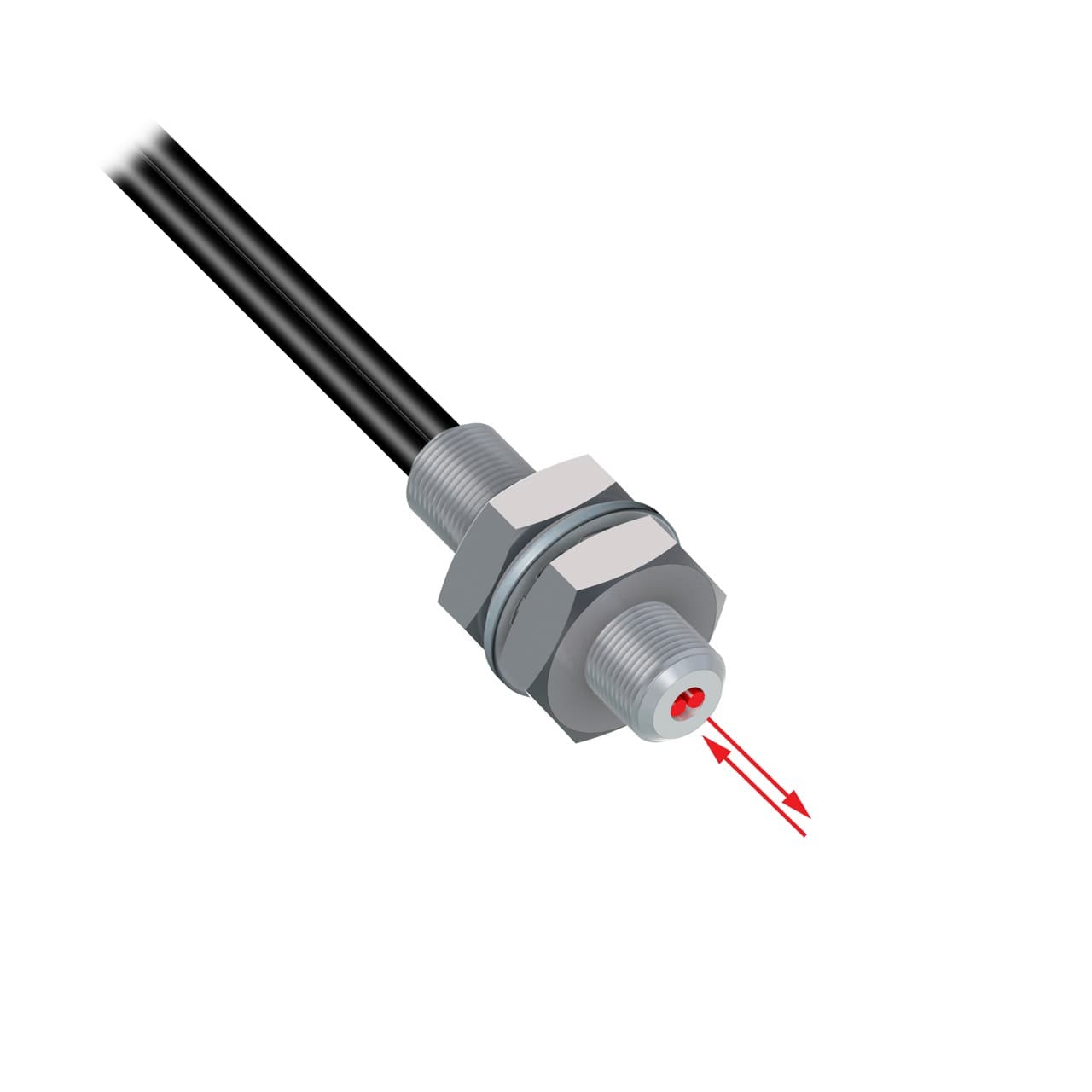

Plastic Fiber, Diffuse Reflective, Core Dia.: 0.5 mm; Fiber Length 2 m, Thread, Free cut

Product Details

  • Measured Max Distance (mm)
    No Data
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    M3
  • Tariff Fiber Meters (fbm)
    4
  • Feature: Chemical Resistant
    No
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    No
  • Integrated Lens
    No
  • Minimum Repeat Bending Endurance
    10000
  • Sensing End Segment 1
    Thread
  • Termination
    Free Cut
  • Max Temp ( °C)
    70
  • Retractile
    No
  • Core Diameter (mm)
    0.5
  • Minimum Bend Radius (mm)
    10
  • Flex Relief
    No
  • Fiber Sensing End Size
    M3
  • Fiber Length (m)
    2
  • Quantity Included
    1
  • Fiber Optic Type
    Plastic
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Sensing End Tip
    Thread
  • Beam Exit
    In-line
  • Sensing Mode (General)
    Diffuse
  • Housing Style
    Round

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
