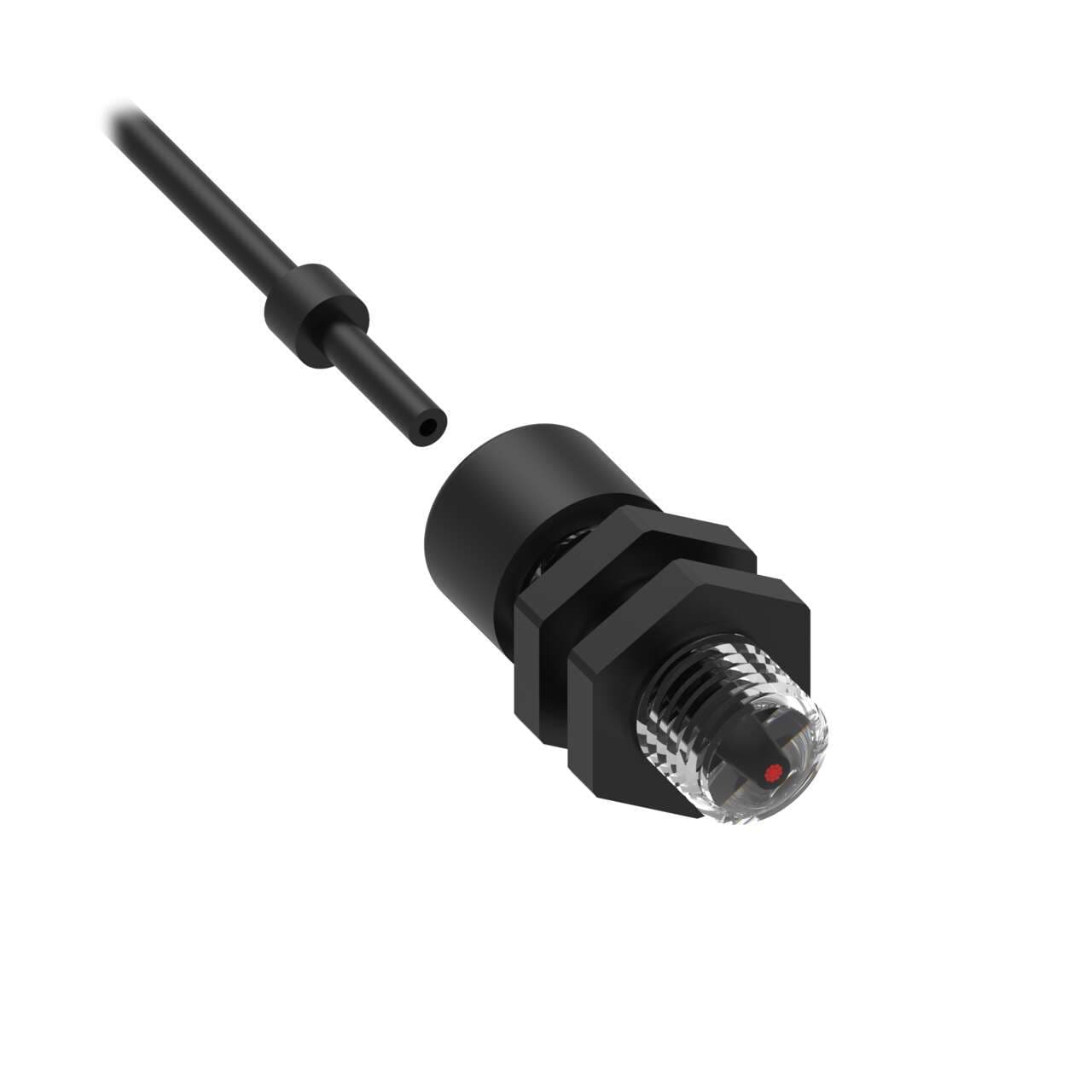

PBCL22T Banner Through Beam Sensors

Name: PBCL22T
Brand: Banner
Price: 152 USD
Availability: BackOrder

Part#:PBCL22T

Alt. Part#:65944

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Retroreflective; Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 0.6 m; Coaxial, Lens; T Termination

Product Details

Weight
36.28736 g
Country Of Origin
JP
Max Distance: DF-G1 (mm)
No Data
Termination Type
Plastic Fiber Sensors
Application: Liquid Level
No
Max Distance: DF-G2 (mm)
No Data
Max Distance: DF-G3 (mm)
No Data
Measured Max Distance (mm)
No Data
Tariff Fiber Meters (fbm)
6.1
Fiber Sensing End Size - Mounting Area
M8
Application: Vacuum Feed Through
None
Feature: Small Object Detection
No
Feature: Chemical Resistant
No
Feature: Extended Range
No
Integrated Lens
Yes
Minimum Repeat Bending Endurance
5000
Max Temp ( °C)
70
Termination
Terminated
Retractile
No
Minimum Bend Radius (mm)
10

Sensing End Segment 2

Lens

Core Diameter (mm)

0.5

Flex Relief

Sensing End Segment 1

Thread

Fiber Optic Type

Plastic

Sensing End Material (Specific)

Polyethylene

Sensing Mode (Detailed)

Coaxial

Fiber Sensing End Tip

Lens

Fiber Sheathing Material (Jacket)

Polyethylene

Sensing Mode (General)

Diffuse

Beam Exit

In-line

Fiber Sensing End Size

Fiber Length (m)

0.609

Housing Style

Round

Quantity Included

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBCL22T on Powermatic Associates is $152.00. Order now.

About the product

Banner Engineering PBCL22T is a fiber optic sensor designed with a diffuse-reflective system and bifurcated fiber in-line/coaxial sensing. It operates at an ambient air temperature of up to +70°C. This sensor is part of the Plastic fiber series and features a cylindrical (threaded) end tip. The emitter has a diameter of 0.125mm for the fiber core, while the receiver consists of 6x0.125mm fiber core. The sensing end and the fiber are made of plastic, with a polyethylene (PE) fiber sheath. The total length of the sensor is 1.9ft or 579mm.

PBCL22T Related Documents

PBCL2 SERIES-1630955343053.stp PBCL2 SERIES-1630955343057.pdf
