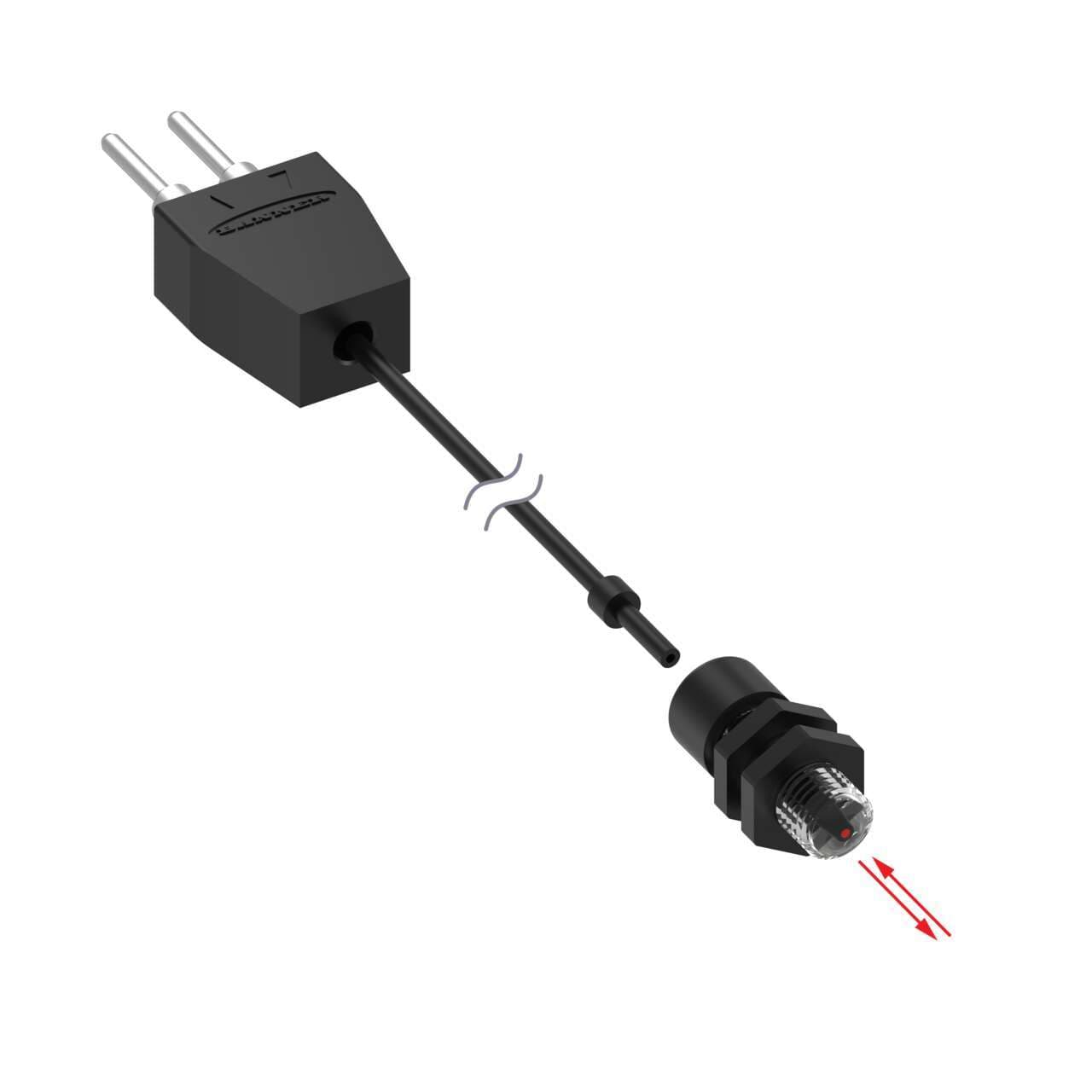

PBCL21T Banner Through Beam Sensors

PBCL21T on Powermatic Associates
Banner
  • PBCL21T
  • PBCL21T

Part#:PBCL21T

Alt. Part#:65932

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Retroreflective; Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 0.3 m; Coaxial, Lens; T Termination

Product Details

  • Weight
    36.28736 g
  • Country Of Origin
    JP
  • Fiber Sensing End Size - Mounting Area
    M8
  • Max Distance: DF-G3 (mm)
    No Data
  • Feature: Chemical Resistant
    No
  • Minimum Repeat Bending Endurance
    5000
  • Feature: Extended Range
    No
  • Minimum Bend Radius (mm)
    10
  • Fiber Sensing End Size
    M8
  • Beam Exit
    In-line
  • Sensing End Material (Specific)
    Polyethylene
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    3.47
  • Measured Max Distance (mm)
    No Data
  • Application: Liquid Level
    No
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Integrated Lens
    Yes
  • Feature: Small Object Detection
    No
  • Max Temp ( °C)
    70
  • Flex Relief
    No
  • Termination
    Terminated
  • Sensing End Segment 1
    Thread
  • Retractile
    No
  • Fiber Length (m)
    0.305
  • Sensing End Segment 2
    Lens
  • Core Diameter (mm)
    0.5
  • Fiber Sensing End Tip
    Lens
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing Mode (General)
    Diffuse
  • Sensing Mode (Detailed)
    Coaxial
  • Quantity Included
    1
  • Fiber Optic Type
    Plastic
  • Housing Style
    Round

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBCL21T on Powermatic Associates is $152.00. Order now.

About the product

Banner Engineering PBCL21T is a fiber optic sensor designed for diffuse-reflective system applications, featuring a probe tip with a bifurcated fiber in-line/coaxial sensing mechanism. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and comes with a cylindrical (threaded) end tip. The sensing end is made of stainless steel, while the fiber is plastic with a polyethylene (PE) fiber sheath. It has a diameter of 1x1mm plus 16x0.25mm for the fiber core and a length of 6ft / 2m.

PBCL21T Related Documents

PBCL2 SERIES-1630954834697.stpPBCL2 SERIES-1630954834704.pdf
