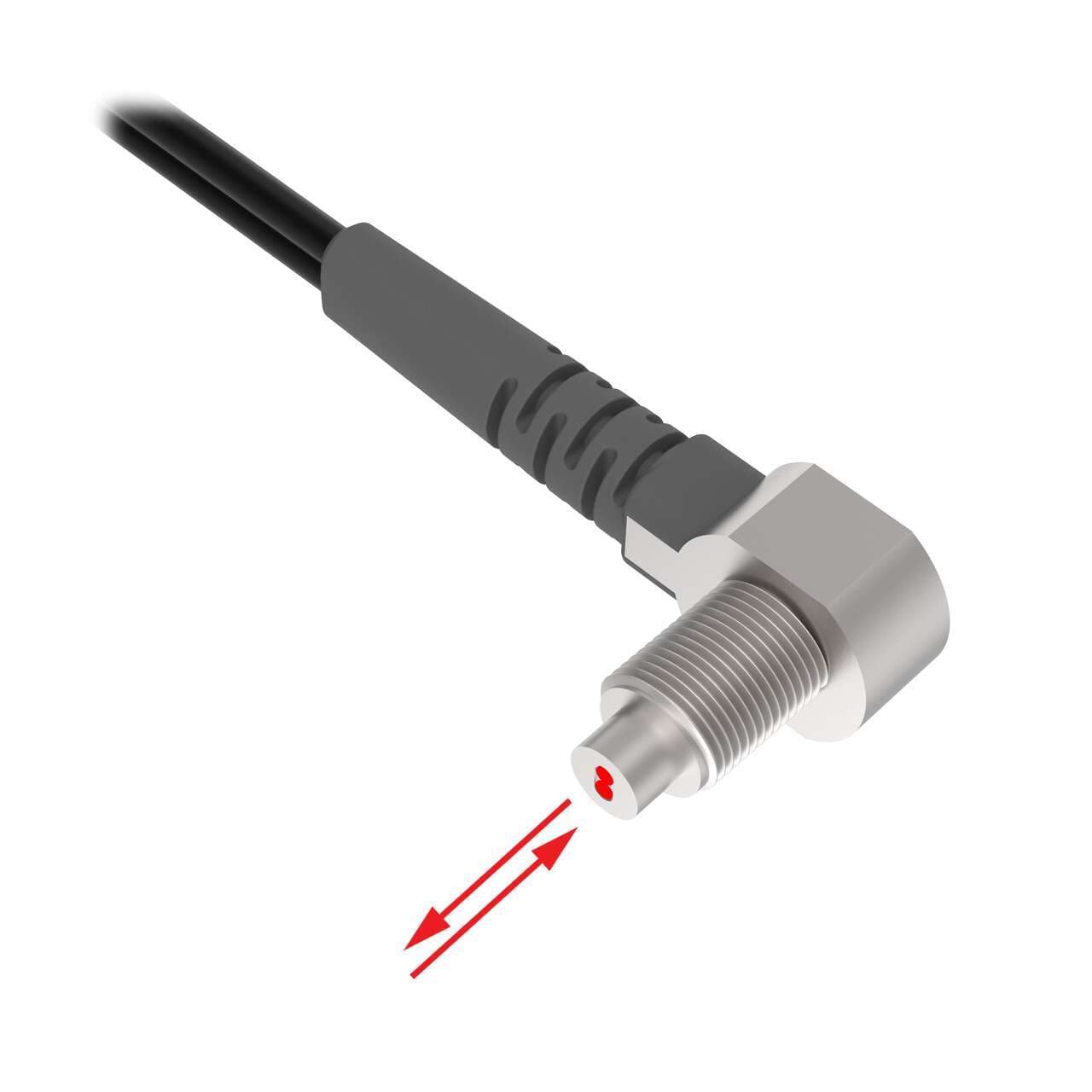

PBAT46UTA-VL Banner Through Beam Sensors
Part#:PBAT46UTA-VL
Alt. Part#:93059
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber; Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 2 m; Right-Angle; Thread M6; Standard Bend Radius 25 mm; Flex Relief; Free Cut; Vantage Line
Product Details
- Weight 23.133192 g
- Country Of Origin TW
- Measured Max Distance (mm) 114
- Fiber Sensing End Size - Mounting Area M6
- Max Distance: DF-G3 (mm) 886
- Termination Type Plastic Fiber Sensors
- Tariff Fiber Meters (fbm) 4
- Max Distance: DF-G1 (mm) 114
- Max Distance: DF-G2 (mm) 185
- Application: Vacuum Feed Through None
- Feature: Extended Range No
- Application: Liquid Level No
- Feature: Small Object Detection No
- Minimum Bend Radius (mm) 25
- Minimum Repeat Bending Endurance 1000
- Feature: Chemical Resistant No
- Integrated Lens No
- Termination Free Cut
- Max Temp ( °C) 70
- Core Diameter (mm) 1
- Flex Relief Yes
- Fiber Length (m) 2
- Retractile No
- Fiber Sensing End Size 4.0 mm
- Sensing End Segment 1 Angle
- Sensing End Segment 3 Ferrule
- Sensing End Segment 2 Thread
- Fiber Sensing End Tip Ferrule
- Fiber Optic Type Plastic
- Sensing Mode (General) Diffuse
- Beam Exit Right Angle
- Housing Style Round
- Sensing Mode (Detailed) Reflective
- Fiber Sheathing Material (Jacket) Polyethylene
- Max Range: DF-G3 (mm) >500mm - <=1000mm
- Sensing End Material (Specific) Stainless Steel
- Quantity Included 1
- Functions Fiber optic sensor
- Shape Cylindrical (threaded) end tip
- Ambient air temperature for operation +70 °C
- Product series / family name Fiber sensors
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Primary brand Banner Engineering
- Design diffuse-reflective system flex strain relief Bifurcated fiber Side / right-angled sensing
- Order code / Manufacturer SKU 93059
- Main function Fiber sensor
- Length 6ft / 2m
- Equivalent to PBAT46UTAVL
- Sub-range name Plastic fiber - Vantage Line
- Thread size M6
- Diameter 1mm fiber core
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBAT46UTA-VL on Powermatic Associates is $55.00. Order now.
About the product
Banner Engineering PBAT46UTA-VL is a spare part designed as a power block with a wiring chamber connection. It operates on a supply voltage ranging from 210Vac to 250Vac, with nominal values at 220Vac and 240Vac. This part features 1 x digital output configured as an SPST solid state switch.
