PBAT415UHFMTA Banner Through Beam Sensors

PBAT415UHFMTA on Powermatic Associates
Banner
  • PBAT415UHFMTA
  • PBAT415UHFMTA

Part#:PBAT415UHFMTA

Alt. Part#:88604

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

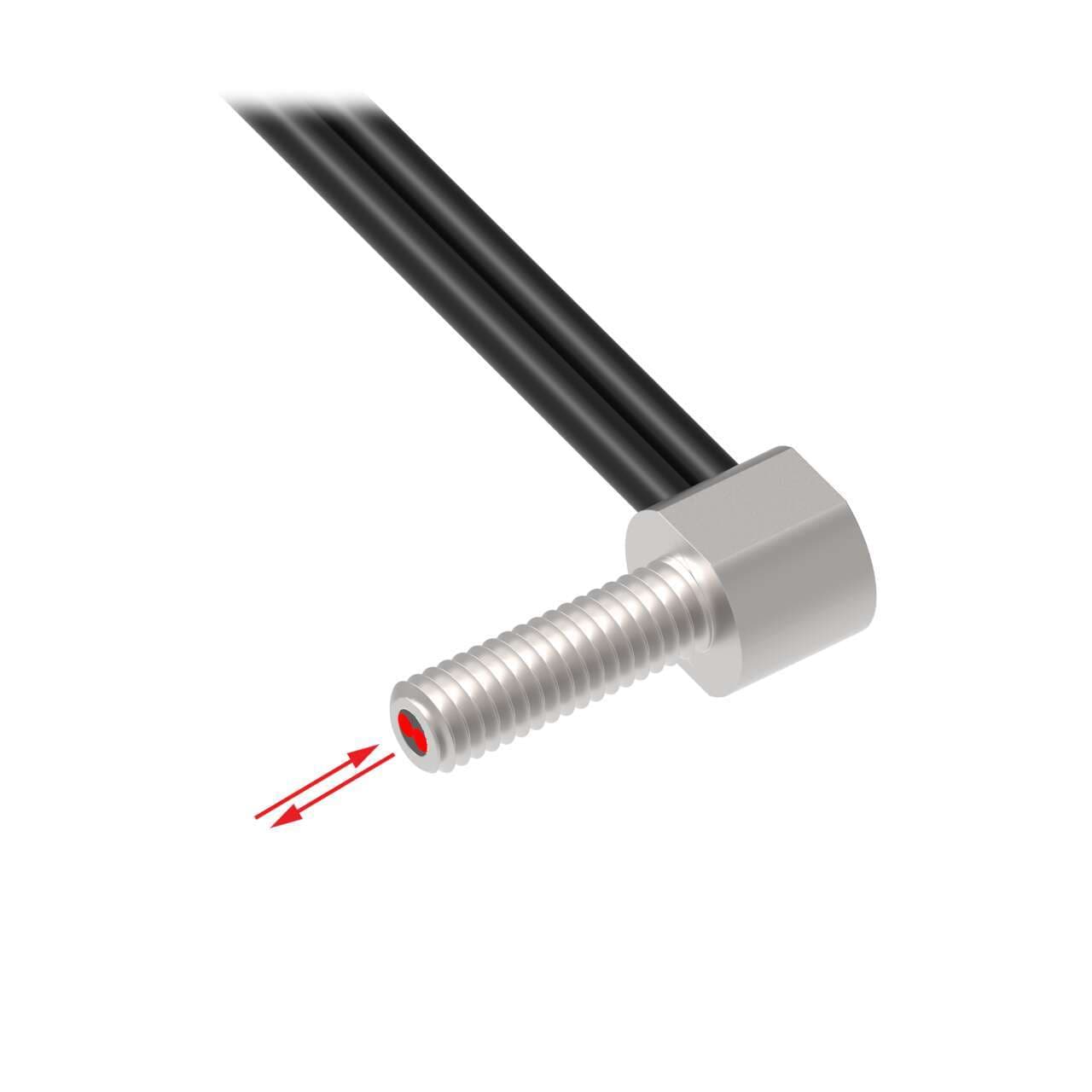

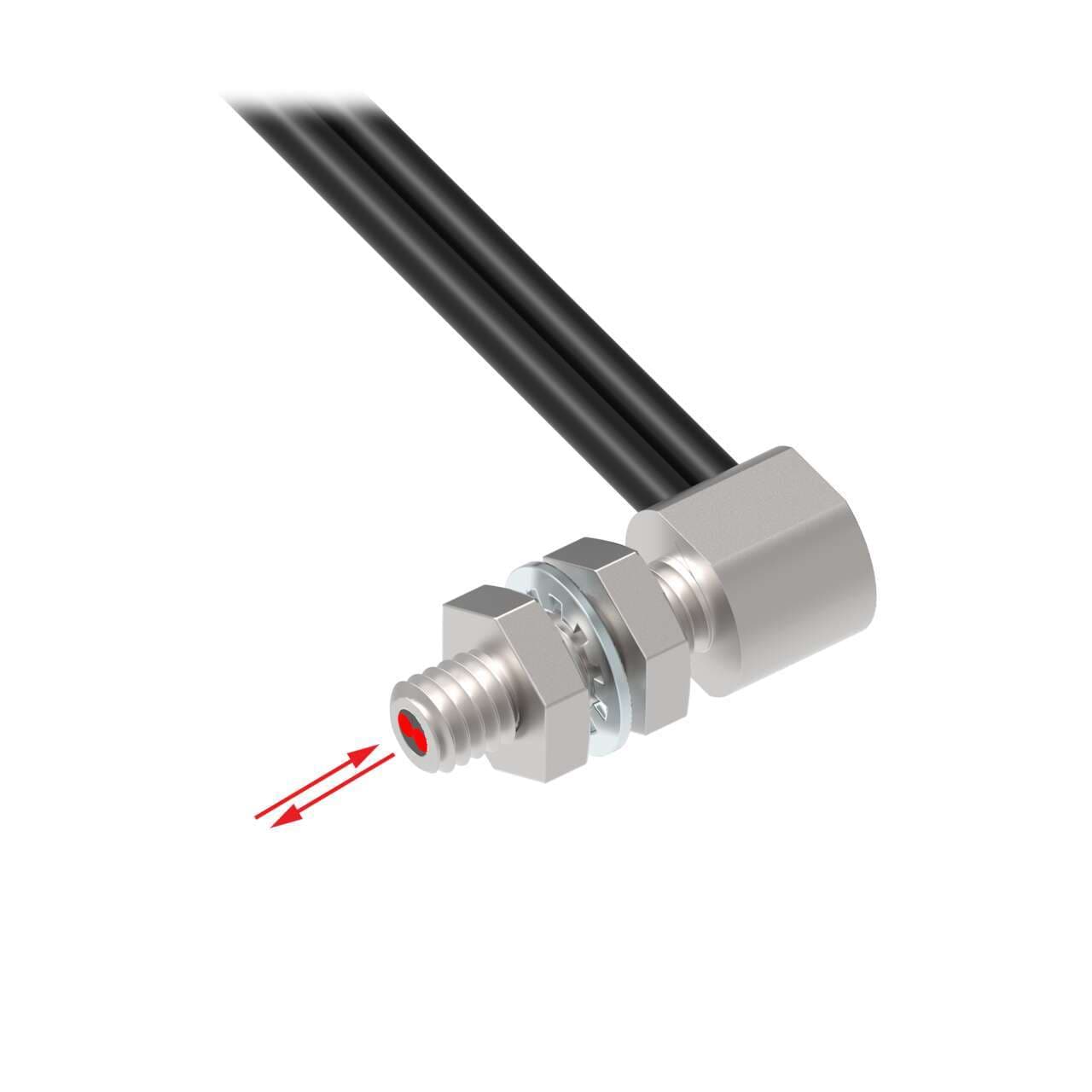

Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 5 m; Angle, Thread; DuraBend, Free cut

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    JP
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    M4
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    10
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    No
  • Integrated Lens
    No
  • Max Temp ( °C)
    70
  • Feature: Chemical Resistant
    No
  • Minimum Repeat Bending Endurance
    1000
  • Termination
    Free Cut
  • Minimum Bend Radius (mm)
    2
  • Flex Relief
    No
  • Core Diameter (mm)
    1
  • Retractile
    No
  • Fiber Sensing End Size
    M4
  • Sensing End Segment 1
    Angle
  • Fiber Length (m)
    5
  • Sensing End Segment 2
    Thread
  • Housing Style
    Round
  • Sensing End Material (Specific)
    Stainless Steel
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Quantity Included
    1
  • Fiber Sensing End Tip
    Thread
  • Beam Exit
    Right Angle
  • Sensing Mode (General)
    Diffuse
  • Fiber Optic Type
    Plastic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBAT415UHFMTA on Powermatic Associates is $190.00. Order now.

About the product

Banner Engineering PBAT415UHFMTA is a fiber optic sensor designed for diffuse-reflective system applications, featuring a flexible, bifurcated fiber with side/right-angled sensing. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber (Vantage Line) series, characterized by a 1mm fiber core diameter and a 3ft / 1m length. The design incorporates a cylindrical (threaded) end tip made of stainless steel, with the fiber itself being plastic and encased in a stainless flexible tubing sheath for enhanced durability and flexibility in installation.
