PBAT26UTA-VL Banner Through Beam Sensors

PBAT26UTA-VL on Powermatic Associates
Banner
  • PBAT26UTA-VL
  • PBAT26UTA-VL

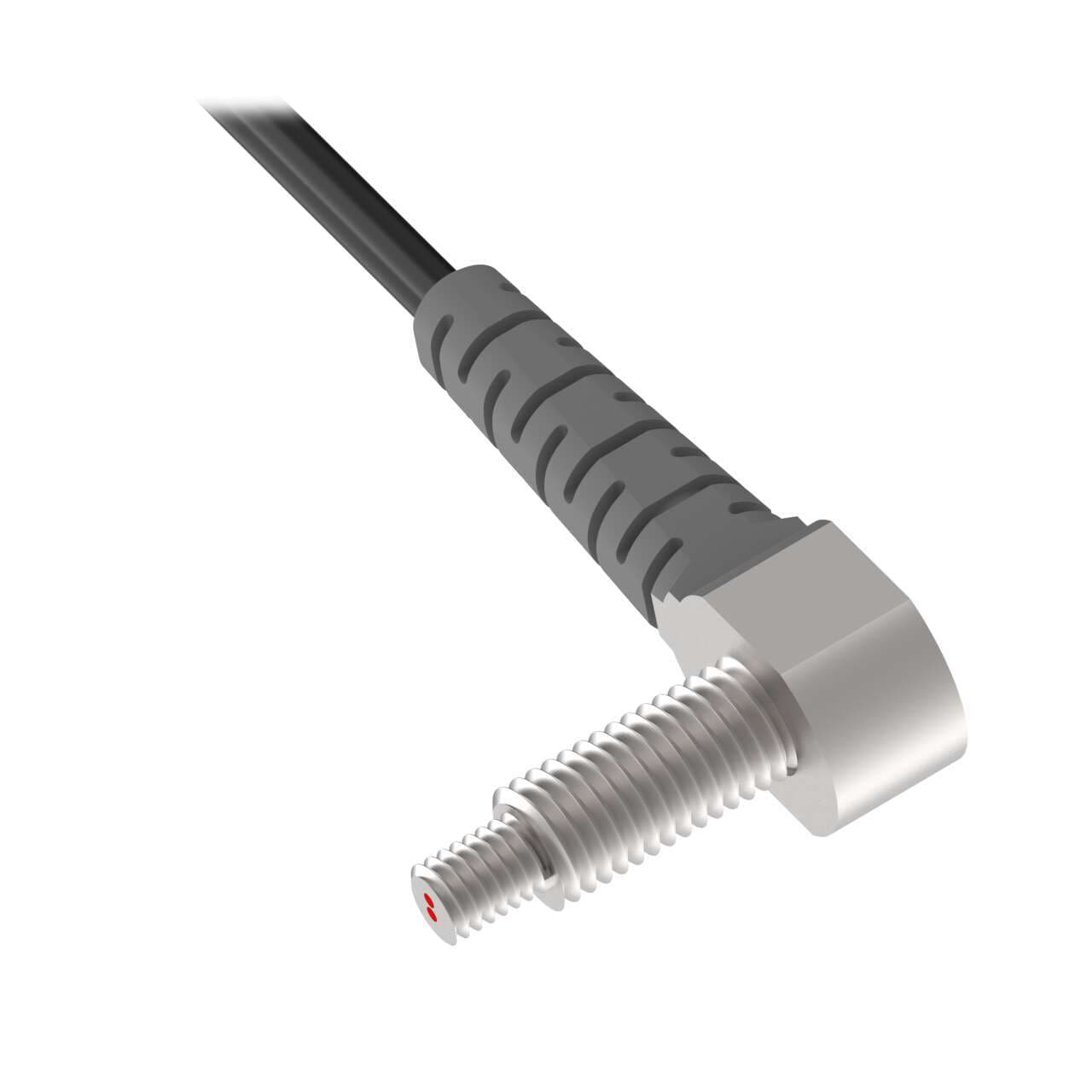

Part#:PBAT26UTA-VL

Alt. Part#:97770

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm; Fiber Length 2 m; Right-Angle, Thread; Bend Radius 15 mm, Flex Relief; Free Cut; Vantage Line

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    TW
  • Max Distance: DF-G3 (mm)
    169
  • Max Distance: DF-G2 (mm)
    35
  • Fiber Sensing End Size - Mounting Area
    M4
  • Tariff Fiber Meters (fbm)
    4
  • Max Distance: DF-G1 (mm)
    22
  • Measured Max Distance (mm)
    22
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    No
  • Termination
    Free Cut
  • Integrated Lens
    No
  • Feature: Chemical Resistant
    No
  • Application: Liquid Level
    No
  • Minimum Bend Radius (mm)
    15
  • Flex Relief
    Yes
  • Max Temp ( °C)
    70
  • Minimum Repeat Bending Endurance
    5000
  • Retractile
    No
  • Sensing End Segment 3
    Thread
  • Sensing End Segment 2
    Thread
  • Fiber Sensing End Tip
    Thread
  • Sensing Mode (Detailed)
    Reflective
  • Sensing End Material (Specific)
    Stainless Steel
  • Core Diameter (mm)
    0.5
  • Beam Exit
    Right Angle
  • Fiber Length (m)
    2
  • Fiber Sensing End Size
    M2.6
  • Sensing End Segment 1
    Sideview
  • Fiber Optic Type
    Plastic
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing Mode (General)
    Diffuse
  • Quantity Included
    1
  • Housing Style
    Round
  • Max Range: DF-G3 (mm)
    >100mm - <=500mm
  • Sub-range name
    Plastic fiber - Vantage Line
  • Equivalent to
    PBAT26UTAVL
  • Primary brand
    Banner Engineering
  • Ambient air temperature for operation
    +70 °C
  • Length
    6ft / 2m
  • Product series / family name
    Fiber sensors
  • Diameter
    0.5mm fiber core
  • Order code / Manufacturer SKU
    97770
  • Functions
    Fiber optic sensor
  • Thread size
    M4
  • Main function
    Fiber sensor
  • Shape
    Cylindrical (threaded) end tip
  • Design
    diffuse-reflective system flex strain relief Bifurcated fiber Side / right-angled sensing
  • Material
    Plastic fiber Plastic fiber Polyethylene fiber sheath

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBAT26UTA-VL on Powermatic Associates is $65.00. Order now.

About the product

Banner Engineering PBAT26UTA-VL is a fiber optic sensor designed for diffuse-reflective system applications with a bifurcated fiber side and right-angled sensing. It features a 1mm fiber core diameter and falls under the Plastic fiber series. The sensor has a cylindrical (threaded) end tip, constructed with a stainless steel sensing end and a plastic fiber with Steelskin fiber sheath. It is designed to operate in ambient air temperatures up to +70°C and has a total length of 10ft / 3m.

PBAT26UTA-VL Related Documents

PBAT2 M4 BIFURCATED SERIES TERMINATED VANTAGE LINE-1630955026900.pdfPBAT2 M4 BIFURCATED SERIES TERMINATED VANTAGE LINE-1630955026903.stp
