Part#:P4C32HF

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

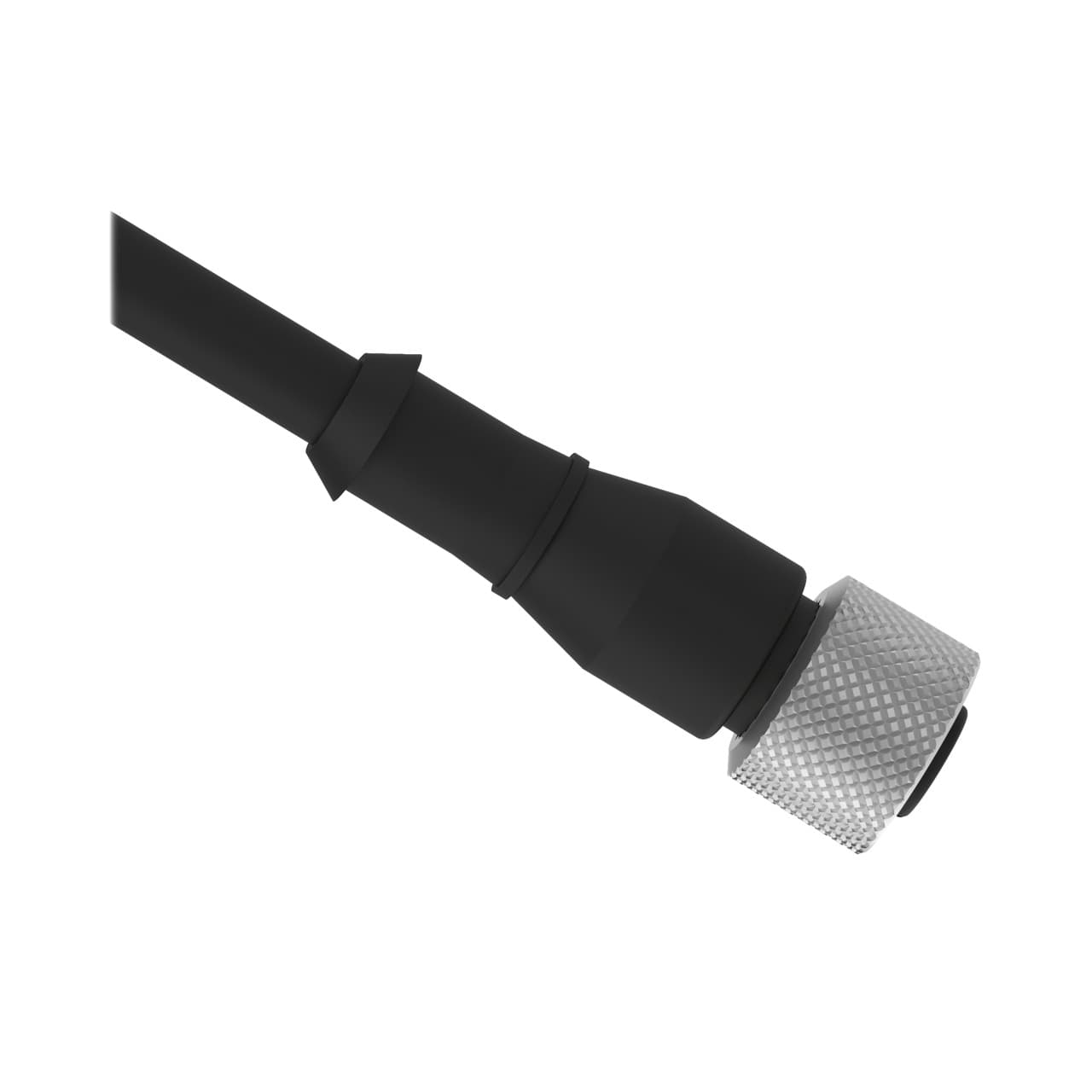

Banner Engineering P4C32HF is a pre-assembled cable/cordset designed for various automation applications. It features a 12-pin slide snap female connector with bare end flying leads and a shield floating to drain single-ended design. The cable has a diameter of 7.7mm and is protected by black sheathing made of PVC. It is equipped with a nickel-plated brass coupling nut, ensuring a secure connection. This cable operates effectively within an ambient air temperature range of -40 to +80°C and offers a degree of protection rated at IP50. With a length of 50ft (15m) and a rated voltage of 75Vdc, it is tailored for a wide range of industrial environments.

Product Details

  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Secondary Connector Type
    Flying Leads
  • Primary AWG
    20, 24
  • Primary Number of Conductors
    12
  • Primary Orientation
    Straight
  • Primary Gender
    Female
  • Primary Coupling Method
    Slide Snap
  • Primary Connector Type
    Power/IO
  • IP Rating
    IP50
  • Voltage Rating (V)
    75 V ac/dc
  • Minimum Temp. (°C)
    -40
  • Coupling Material/Color
    Nickel Plated Brass
  • Maximum Temp. (°C)
    80
  • Current Rating (A)
    2.0
  • Trunk Length (m)
    No Trunk
  • Shield Type
    Coupling
  • Shield/No Shield
    Shield
  • Cordset Length (m)
    10
  • Connector Body Material/Color
    PVC Black
  • Outside Cable Diameter (mm)
    7.5
  • Cable Jacket Color
    Black
  • Cable Jacket Material
    PVC
  • Number of Connectors
    1
  • Number of Contacts
    12

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
