MQEAC-630 Banner Cordsets
Product Details
- Weight 521.6308 g
- Country Of Origin TW
- Feature: Hazardous Area No
- Oil/Grease Resistant No
- Secondary Connector Type Flying Leads
- Primary AWG 22
- Primary Number of Conductors 6
- Primary Gender Female
- Primary Connector Type MICRO
- Primary Coupling Method M12 Dual Key
- Voltage Rating (V) 250 V ac/dc
- IP Rating IP67
- Minimum Temp. (°C) -40
- Current Rating (A) 4.0
- Primary Orientation Straight
- Coupling Material/Color Nickel Plated Brass
- Maximum Temp. (°C) 105
- Cable Jacket Material PVC
- Number of Contacts 6
- Cable Jacket Color Yellow
- Outside Cable Diameter (mm) 5.6
- Connector Body Material/Color PUR Black
- Trunk Length (m) No Trunk
- Shield/No Shield No Shield
- Cordset Length (m) 9.14
- Number of Connectors 1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQEAC-630 on Powermatic Associates is $91.00. Order now.
About the product

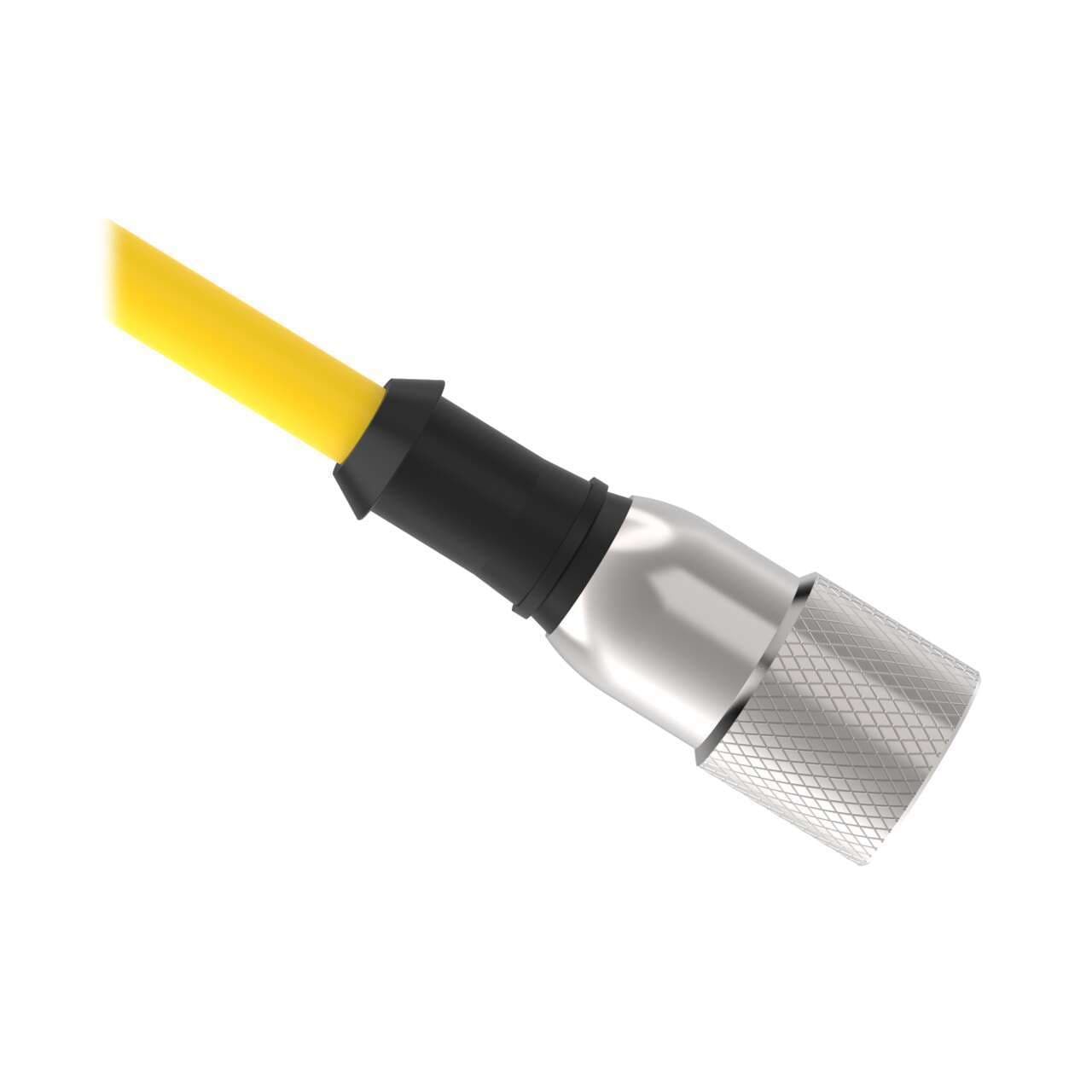

Banner Engineering MQEAC-630 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a 6-pin Euro-style M12 female connector with bare end flying leads. The cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, ensuring its suitability for environments where dust and temporary immersion in water are concerns. The connector's coupling nut is made from nickel-plated brass, enhancing its durability. This model comes with yellow sheathing for easy identification and measures 30ft (9m) in length. It is rated for a voltage of 250Vac.
