MQDMC-430RA Banner Cordsets
Product Details
- Weight 390.08912 g
- Country Of Origin US
- Feature: Hazardous Area No
- Primary Coupling Method M12 Single Key
- Oil/Grease Resistant No
- Secondary Connector Type Flying Leads
- Primary AWG 22
- Primary Number of Conductors 4
- Primary Orientation Right Angle
- Primary Gender Male
- IP Rating IP67
- Primary Connector Type EURO
- Minimum Temp. (°C) -40
- Current Rating (A) 4.0
- Maximum Temp. (°C) 105
- Voltage Rating (V) 250 V ac/dc
- Coupling Material/Color Nickel Plated Brass
- Cable Jacket Material PVC
- Cable Jacket Color Black
- Shield/No Shield No Shield
- Cordset Length (m) 9.14
- Trunk Length (m) No Trunk
- Connector Body Material/Color PUR Black
- Outside Cable Diameter (mm) 5.2
- Number of Connectors 1
- Number of Contacts 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDMC-430RA on Powermatic Associates is $52.00. Order now.
About the product

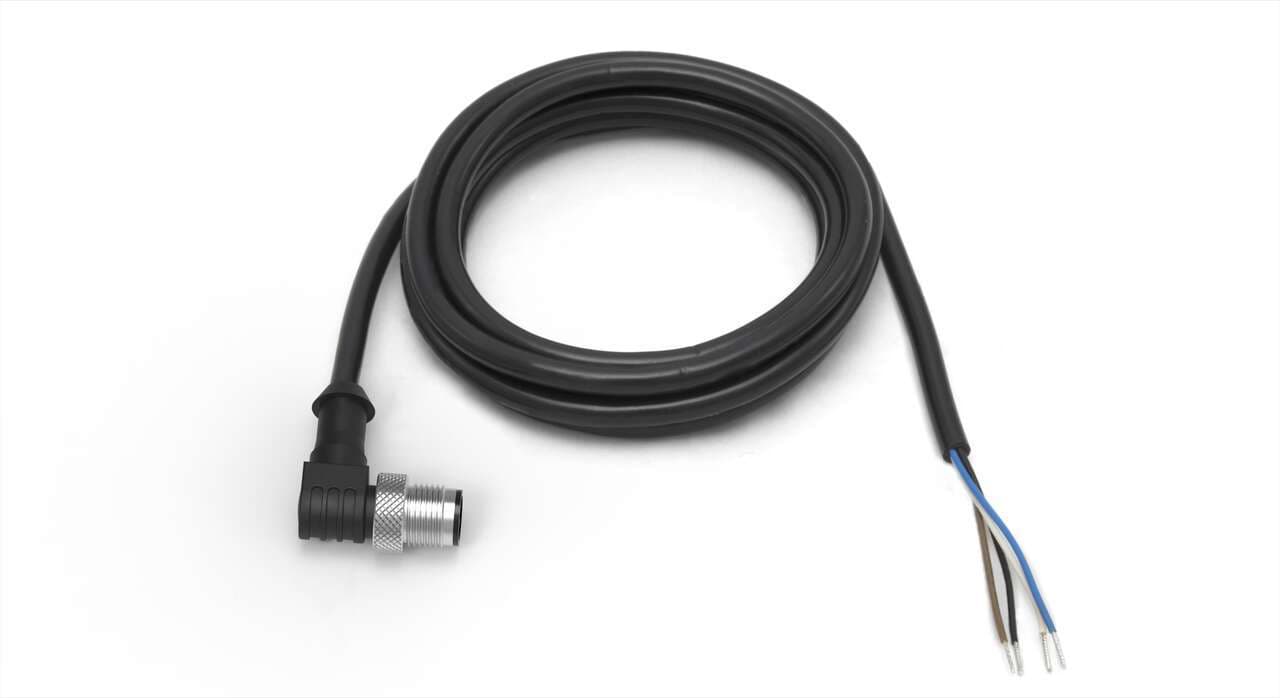

Banner Engineering MQDMC-430RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a 4-pin Euro-style M12 male right-angled connector with bare end flying leads. The cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, ensuring its suitability for environments where dust and temporary immersion in water are concerns. The connector's coupling nut is made from nickel-plated brass, enhancing its durability. This black-sheathed cable has a length of 30ft (9m) and is rated for a voltage of 250Vac.
MQDMC-430RA Related Documents
Similar products from: Banner Cordsets
This item can ship within 0 day!
Manufacturer warranty
MQDMC-430RA Banner
$52.00
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$52.00
$52.00 each
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare MQDMC-430RA with other Cordsets products
Weight
Country Of Origin
Feature: Hazardous Area
Primary Coupling Method
Oil/Grease Resistant
Secondary Connector Type
Primary AWG
Primary Number of Conduct...
Primary Orientation
Primary Gender
Selected product
MQDMC-430RA
Banner
Cordset: Single Ended M12; 4-pin Right-Angle Male; 9.14 m 4x22 Black PVC Jacket; Nickel-Plated Brass...
Weight390.08912 g
Country Of OriginUS
Feature: Hazardous AreaNo
Primary Coupling MethodM12 Single Key
Oil/Grease ResistantNo
Secondary Connector TypeFlying Leads
Primary AWG22
Primary Number of Conductors4
Primary OrientationRight Angle
Primary GenderMale
MQDC-430RA
Banner
Cordset: Single Ended M12; 4-pin Right-Angle Female; 9 m (29.53 ft) 4x22 Black PVC Jacket; Nickel-Pl...
Weight361.966416 g
Country Of OriginUS
Feature: Hazardous Area-
Primary Coupling Method-
Oil/Grease Resistant-
Secondary Connector Type-
Primary AWG-
Primary Number of Conductors-
Primary Orientation-
Primary Gender-
MQDC-430
Banner
Cordset: Single Ended M12; 4-pin Straight Female; 9 m (29.53 ft) 4x22 Black PVC Jacket; Nickel-Plate...
Weight361.512824 g
Country Of OriginUS
Feature: Hazardous Area-
Primary Coupling Method-
Oil/Grease Resistant-
Secondary Connector Type-
Primary AWG-
Primary Number of Conductors-
Primary Orientation-
Primary Gender-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of MQDMC-430RA?
Purchase the MQDMC-430RA from Powermatic Associates at the price of $52.00. Order today.
Out if stock but available for backorder.
Cordset: Single Ended M12; 4-pin Right-Angle Male; 9.14 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
