MQDC2S-12100 Banner Cordsets
Product Details
- Weight 2620.582421 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Secondary Connector Type Flying Leads
- Primary AWG 20, 24
- Primary Number of Conductors 12
- Primary Orientation Straight
- Primary Gender Female
- Minimum Temp. (°C) -40
- Primary Coupling Method M12 Single Key
- Primary Connector Type EURO
- Coupling Material/Color Nickel Plated Brass
- IP Rating IP67
- Voltage Rating (V) 250 V ac/300 V dc
- Current Rating (A) 2.7
- Maximum Temp. (°C) 105
- Shield Type Open
- Shield/No Shield Shield
- Connector Body Material/Color PUR Black
- Outside Cable Diameter (mm) 7.5
- Cordset Length (m) 30
- Cable Jacket Color Black
- Trunk Length (m) No Trunk
- Number of Connectors 1
- Cable Jacket Material PVC
- Number of Contacts 12
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC2S-12100 on Powermatic Associates is $522.00. Order now.
About the product

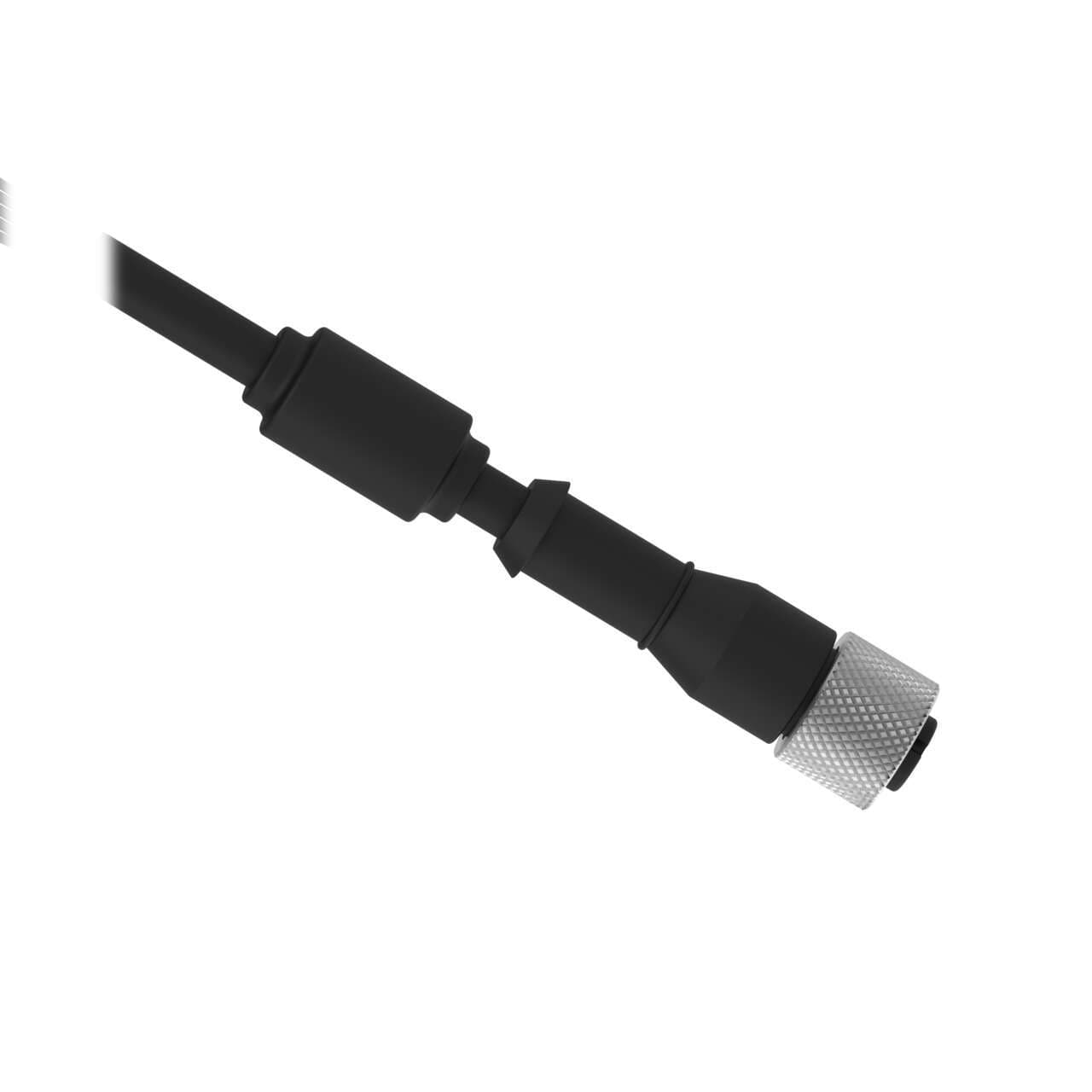

Banner Engineering MQDC2S-12100 is a pre-assembled cable/cordset designed for a variety of applications. It features a single-ended high-flex design with a 7.5mm diameter PVC cable and a 12-pin Euro-style M12 female connector with bare end flying leads. The cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, making it suitable for environments where dust and water resistance are necessary. The coupling nut is made from nickel-plated brass, ensuring a secure connection. This cable is rated for 300Vdc and 250Vac, with a black sheathing covering its 98.4ft (30m) length.
