MAR1232NX485Q Banner Measurement Sensors

Name: MAR1232NX485Q
Brand: Banner

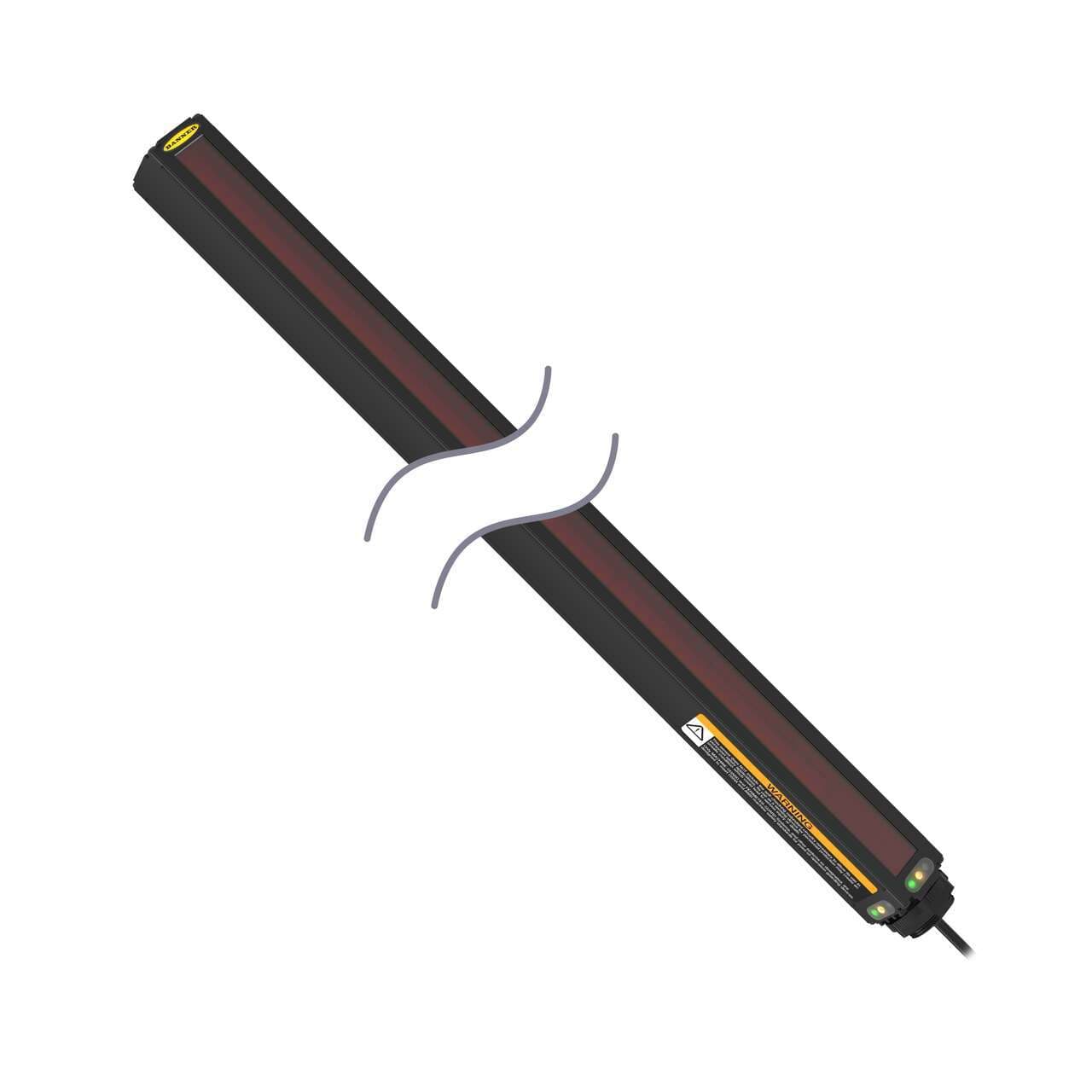

Banner MAR1232NX485Q 2 Piece Mini-Array Series: Receiver 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 12 in; Input Voltage 16-30 V; Outputs: 2 Independent NPN; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

Part#:MAR1232NX485Q

Manufacturer:Banner

Alt. Part#:87737

Product Lifecycle:Active

Get a quick Quote!

2 Piece Mini-Array Series: Receiver 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 12 in; Input Voltage 16-30 V; Outputs: 2 Independent NPN; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MAR1232NX485Q Banner price in the box on the right side or send a quick quote.

Product Details

Weight
861.8248 g
Country Of Origin
CN
Emitter/Receiver Range (m)
0.6 - 6.1
Power Supply
16-30V dc
Max Relative Humidity
0.95
Array Length (mm)
295
Minimum Object Sensitivity (mm)
12.7-19.1
Housing Length (mm)
384
Max Temp (°C)
70
Discrete Output
2 x NPN/PNP Configurable
Min Temp (°C)
-40
Number of Beams
32
Analog Output
N/A
RS-485
Yes
IO Link
No
RS-232
No
DeviceNet
No
Primary Housing Material
Aluminum
Sensing Mode (Detailed)
Receiver
Device Type
Two-Piece

Modbus RTU

Beam Spacing

9.5 mm

Power

Product series / family name

A-GAGE series

Communication protocol

RS-485

Sensing distance

60cm...6.1m

Ambient air temperature for operation

-40...+70 °C

Main function

Sensor (Edge)

Digital outputs

2 x digital outputs (PNP/NPN transistors)

Detectable object size

12.7-19.1mm

Sub-range name

MINI-ARRAY 2-piece models

Resolution

3/8" / 9.5mm

Dimensions

295mm array length

Order code / Manufacturer SKU

87737

Supply voltage (DC)

16Vdc-30Vdc (24Vdc nom.)

Material

Aluminium housing PVC connector

Primary brand

Banner Engineering

Distance

3/8" / 9.5mm beam spacing/pitch

Compliant with standard(s)

cURus CE

Connection type

Pre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector

Functions

Measuring light screen array edge/profile sensor receiver green LED (power ON) yellow LED (output state)

Degree of protection

IP65 UL type 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MAR1232NX485Q Description

Banner Engineering MAR1232NX485Q is a sensor from the MINI-ARRAY 2-piece models series designed for edge/profile sensing with a focus on measuring light screen arrays. This model, functioning as a receiver alone, features a 295mm array length within a rectangular aluminium housing and a PVC connector. It offers a beam spacing/pitch of 3/8" / 9.5mm and comes pre-wired with a 6" / 150mm PVC pigtail that terminates with an M12 mini-style connector. The MAR1232NX485Q operates on a supply voltage of 16Vdc-30Vdc, with 24Vdc as the nominal voltage, and supports RS-485 communication protocol. It is capable of operating within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1. The sensing distance of this model ranges from 60cm to 6.1m, and it features 2 x digital outputs (PNP/NPN transistor) with a resolution of 3/8" / 9.5mm. It is designed to detect object sizes between 12.7mm and 19.1mm.
