MAR1832NX485Q
Banner
Product Lifecycle: Active

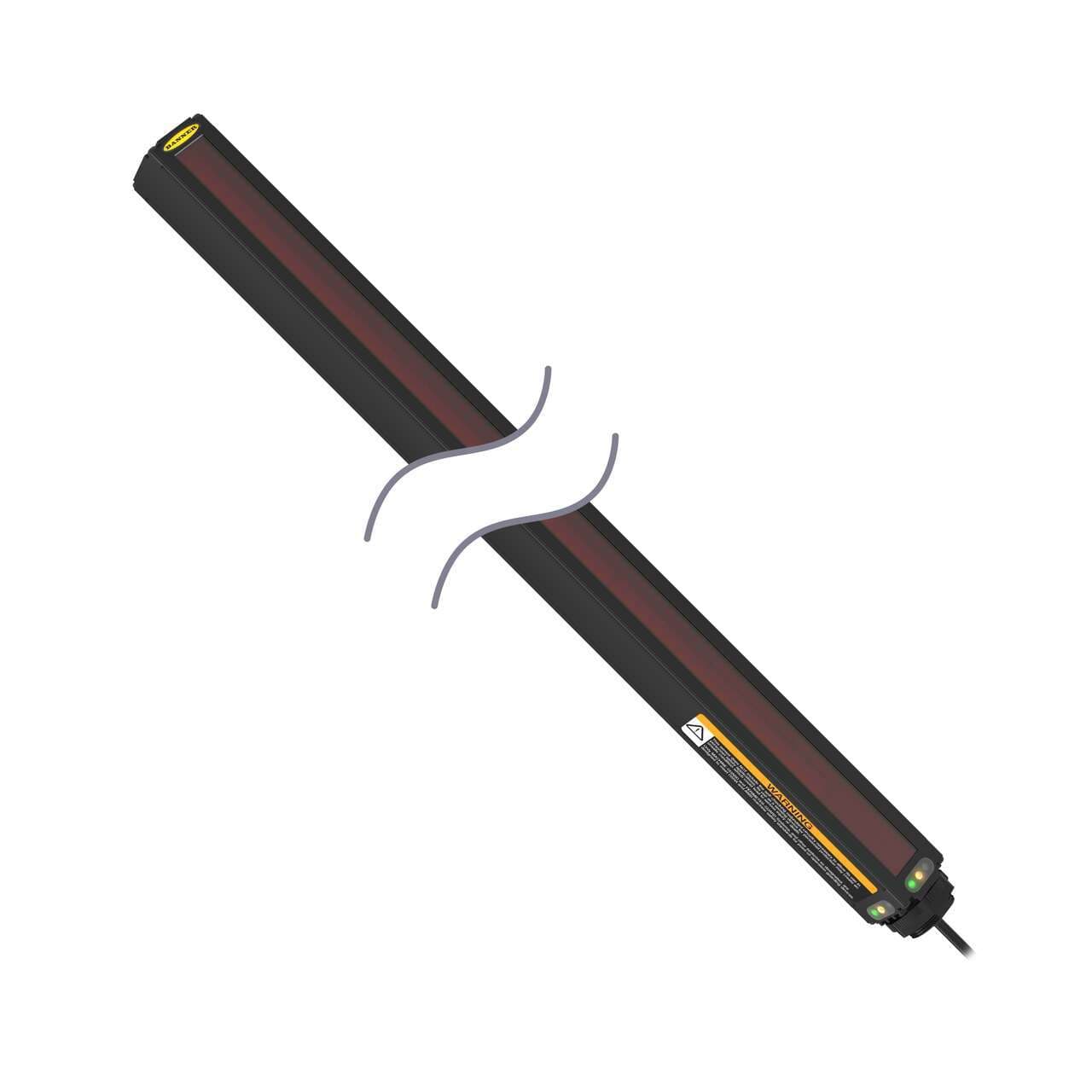

Banner Engineering MAR1832NX485Q is a sensor from the MINI-ARRAY 2-piece models series designed for edge/profile sensing with a focus on measuring light screen arrays. This model, functioning as a receiver alone, features a 448mm array length within a rectangular aluminium housing and a PVC connector. It offers a beam spacing/pitch of 3/8" / 9.5mm and is pre-wired with a 6" / 150mm PVC pigtail that terminates with an M12 mini-style connector. The MAR1832NX485Q operates on a supply voltage of 16Vdc-30Vdc (24Vdc nom.) and supports RS-485 communication protocol. It is designed to work within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1. The sensing distance ranges from 60cm to 6.1m, and it features 2 x digital outputs (PNP/NPN transistor) with a resolution of 3/8" / 9.5mm, capable of detecting object sizes between 12.7-19.1mm.
![MAR1832NX485Q](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F028b2c98-16af-4726-9578-2187ddbe2ca3.jpeg&w=3840&q=75)
Banner Engineering MAR1832NX485Q is a sensor from the MINI-ARRAY 2-piece models series designed for edge/profile sensing with a focus on measuring light screen arrays. This model, functioning as a receiver alone, features a 448mm array length within a rectangular aluminium housing and a PVC connector. It offers a beam spacing/pitch of 3/8" / 9.5mm and is pre-wired with a 6" / 150mm PVC pigtail that terminates with an M12 mini-style connector. The MAR1832NX485Q operates on a supply voltage of 16Vdc-30Vdc (24Vdc nom.) and supports RS-485 communication protocol. It is designed to work within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1. The sensing distance ranges from 60cm to 6.1m, and it features 2 x digital outputs (PNP/NPN transistor) with a resolution of 3/8" / 9.5mm, capable of detecting object sizes between 12.7-19.1mm.
- Power Supply16-30V dc
- Emitter/Receiver Range (m)0.6 - 6.1
- Max Relative Humidity0.95
- Max Temp (°C)70
- Discrete Output2 x NPN/PNP Configurable
- Minimum Object Sensitivity (mm)12.7-19.1
- Housing Length (mm)536
- Min Temp (°C)-40
- Number of Beams48
- Analog OutputN/A
- Array Length (mm)448
- RS-485Yes
- RS-232No
- Modbus RTUNo
- IO LinkNo
- DeviceNetNo
- Beam Spacing9.5 mm
- Primary Housing MaterialAluminum
- Device TypeTwo-Piece
- Sensing Mode (Detailed)Receiver
- PowerDC
- Communication protocolRS-485
- Primary brandBanner Engineering
- Sub-range nameMINI-ARRAY 2-piece models
- FunctionsMeasuring light screen array edge/profile sensor receiver green LED (power ON) yellow LED (output state)
- Degree of protectionIP65 UL type 1
- Order code / Manufacturer SKU87738
- Main functionSensor (Edge)
- Distance3/8" / 9.5mm beam spacing/pitch
- Connection typePre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector
- Digital outputs2 x digital outputs (PNP/NPN transistors)
- MaterialAluminium housing PVC connector
- Detectable object size12.7-19.1mm
- Product series / family nameA-GAGE series
- Supply voltage (DC)16Vdc-30Vdc (24Vdc nom.)
- Sensing distance60cm...6.1m
- Resolution3/8" / 9.5mm
- Compliant with standard(s)cURus CE
- Dimensions448mm array length
- Ambient air temperature for operation-40...+70 °C
