MAQDC-815 Banner Cordsets
Product Details
- Weight 263.08336 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Primary Gender Female
- Secondary Connector Type Flying Leads
- Primary Orientation Straight
- Primary Coupling Method M12 Single Key
- Feature: Hazardous Area No
- Primary Number of Conductors 8
- Primary AWG 24
- Primary Connector Type EURO
- IP Rating IP67
- Shield Type Open
- Coupling Material/Color Nickel Plated Brass
- Current Rating (A) 2.0
- Maximum Temp. (°C) 105
- Voltage Rating (V) 75 V ac/dc
- Number of Contacts 8
- Minimum Temp. (°C) -40
- Number of Connectors 1
- Shield/No Shield Shield
- Cordset Length (m) 4.57
- Trunk Length (m) No Trunk
- Cable Jacket Color Black
- Outside Cable Diameter (mm) 5.6
- Connector Body Material/Color PUR Black
- Cable Jacket Material PVC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAQDC-815 on Powermatic Associates is $61.00. Order now.
About the product

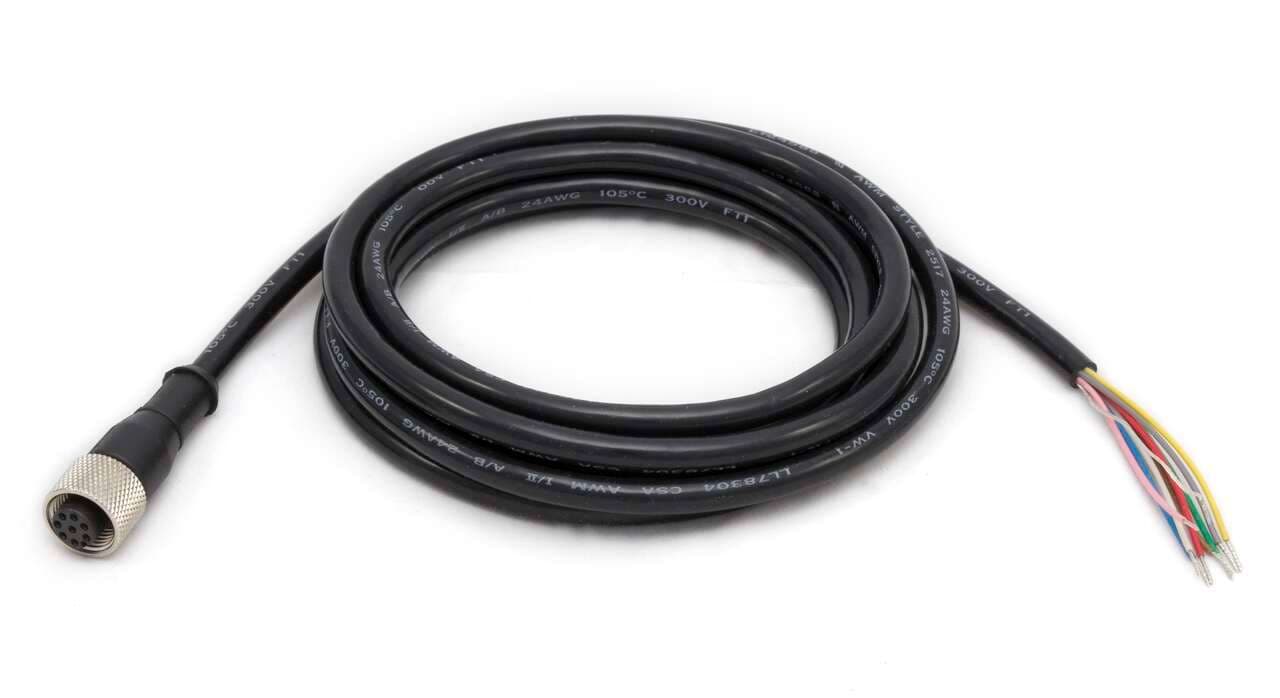

Banner Engineering MAQDC-815 is a pre-assembled cable/cordset designed with a single-ended configuration. It features black sheathing made of PVC material and measures 15ft (4.5m) in length. This cable is equipped with an 8-pin Euro-style M12 female connector and bare end flying leads. It has a rated voltage of 75Vdc and a cable diameter of 5.6mm. The MAQDC-815 is capable of operating in ambient air temperatures ranging from -40 to +105°C and offers a degree of protection rated at IP67.
