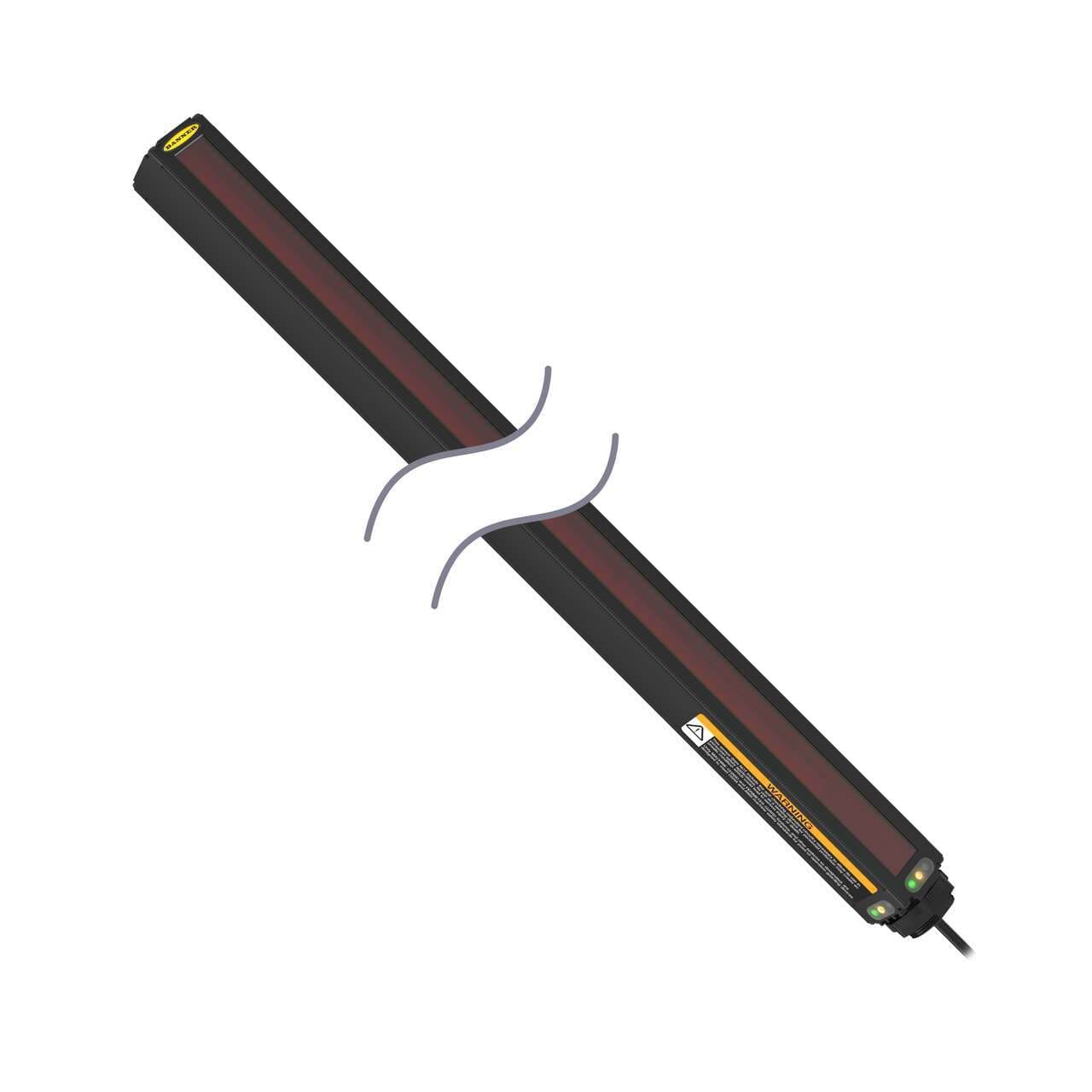

MAE3632Q Banner Measurement Sensors
Part#:MAE3632Q
Alt. Part#:87731
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
2 Piece Mini-Array Series: Emitter 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 36 in; Input Voltage 16-30 V; Outputs: none; 150 mm (6 in) 8-pin M12 PVC Pigtail QD
Product Details
- Weight 1769.0088 g
- Country Of Origin CN
- Power Supply 16-30V dc
- Emitter/Receiver Range (m) 0.6 - 6.1
- Max Relative Humidity 0.95
- Discrete Output N/A
- Min Temp (°C) -40
- Minimum Object Sensitivity (mm) 12.7-19.1
- Array Length (mm) 905
- Max Temp (°C) 70
- Number of Beams 96
- RS-485 No
- Housing Length (mm) 993
- Analog Output N/A
- Power DC
- IO Link No
- RS-232 No
- DeviceNet No
- Modbus RTU No
- Device Type Two-Piece
- Beam Spacing 9.5 mm
- Sensing Mode (Detailed) Emitter
- Primary Housing Material Aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAE3632Q on Powermatic Associates is $923.00. Order now.
About the product
Banner Engineering MAE3632Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array applications, functioning as an emitter alone. This part features a 905mm array length with a rectangular shape and is constructed with an aluminium housing and a PVC connector. It offers a 3/8" / 9.5mm beam spacing/pitch and comes pre-wired with a 6" / 150mm PVC pigtail terminated with an M12 mini-style connector. The MAE3632Q operates on a supply voltage of 16Vdc-30Vdc, with 24Vdc as the nominal voltage, and can function within an ambient air temperature range of -40 to +70°C. It is designed with a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1, ensuring durability in various environments. The sensing distance of this sensor ranges from 60cm to 6.1m, with a resolution of 3/8" / 9.5mm, and it can detect objects sized between 12.7mm and 19.1mm.
