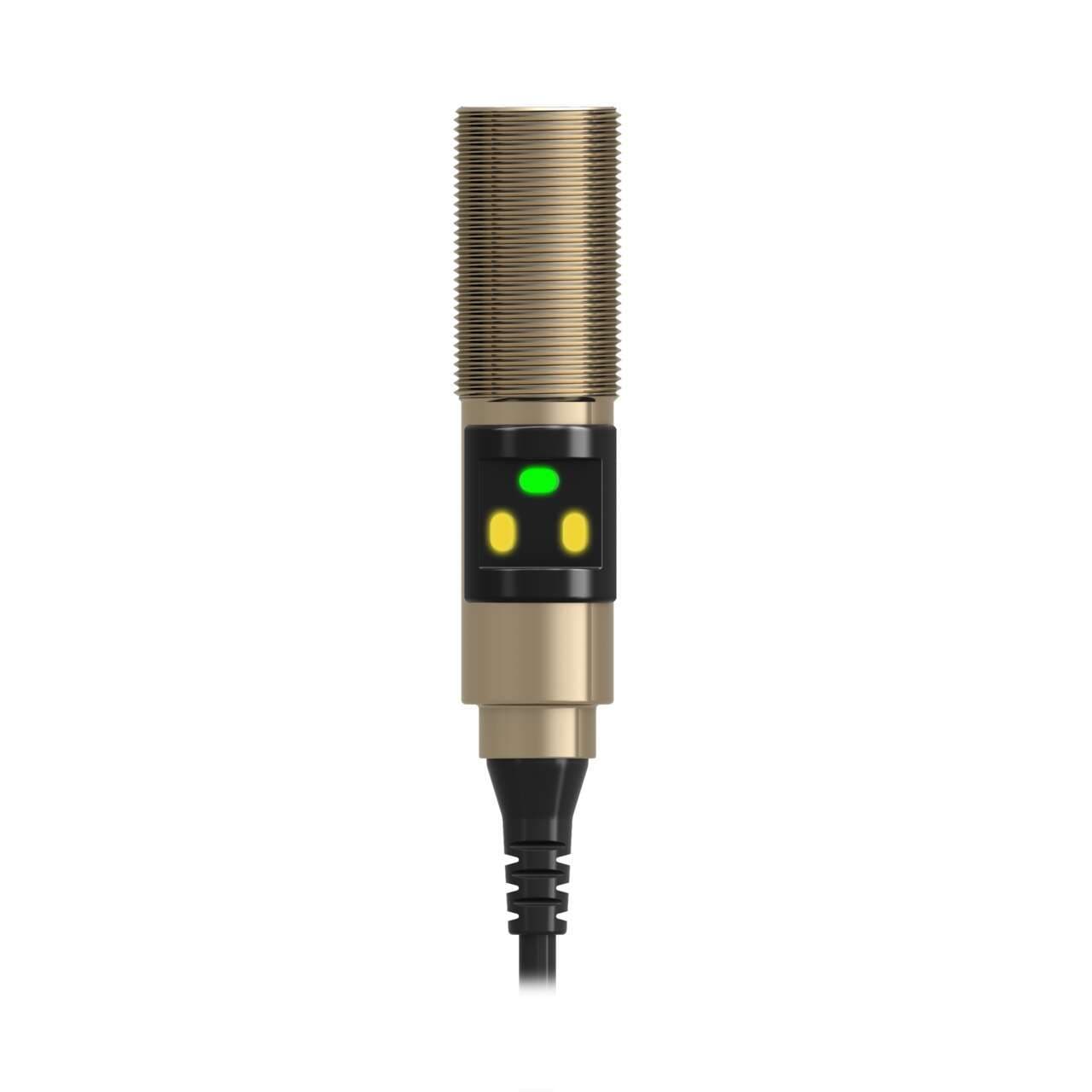

M18-3VPFF75-Q5 Banner Proximity Sensors
Part#:M18-3VPFF75-Q5
Alt. Part#:800553
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
M18-3 Series: Nickel-Plated Brass: Fixed Field; Range: 75 mm; Input 10-30 V dc; Outputs: Complementary PNP; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 63.50288 g
- Country Of Origin CN
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 624 nm
- Shape Cylindrical threaded/barrel
- Compliant with standard(s) cULus CE
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Material Nickel-plated brass housing Acrylic lns. PVC (connector)
- Equivalent to M183VPFF75Q5
- Sub-range name M18-3 (nickel-plated brass)
- Sensing distance 75mm
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Design background / foreground suppression system
- Thread size M18
- Response time 1.5ms / 0.0015 s
- Order code / Manufacturer SKU 800553
- Product series / family name M18 barrel series
- Functions Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Degree of protection IP67 IP69K
- Ambient air temperature for operation -40...+70 °C
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 70
- Connection Pigtail QD
- Feature: Encapsulated No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 624
- Feature: Washdown Rated Yes
- Feature: Health/ Marginal Signal Output Yes
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 100
- Indicator LEDs
- Input/Output Discrete
- Output response time (ms) 1.5
- Opposed Mode Emitter/Receiver N/A
- IP Rating IP67, IP69
- Power DC
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Feature: Chemical Resistant No
- Small Visible Spot LED
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- IO Link No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Primary Housing Material Nickel-Plated Brass
- Special Feature: Water Detection No
- Number of Pins 4
- Housing Style Barrel
- Outputs PNP
- Max Sensing Distance (mm) 75
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Operation Light/Dark Operate
- Lens Material Acrylic
- Feature: Audible No
- Barrel Diameter (mm) 18
- NEMA Rating N/A
- Feature: Hazardous Area No
- DeviceNet No
- Min Op. Temp. (°C) -40
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18-3VPFF75-Q5 on Powermatic Associates is $126.00. Order now.
About the product

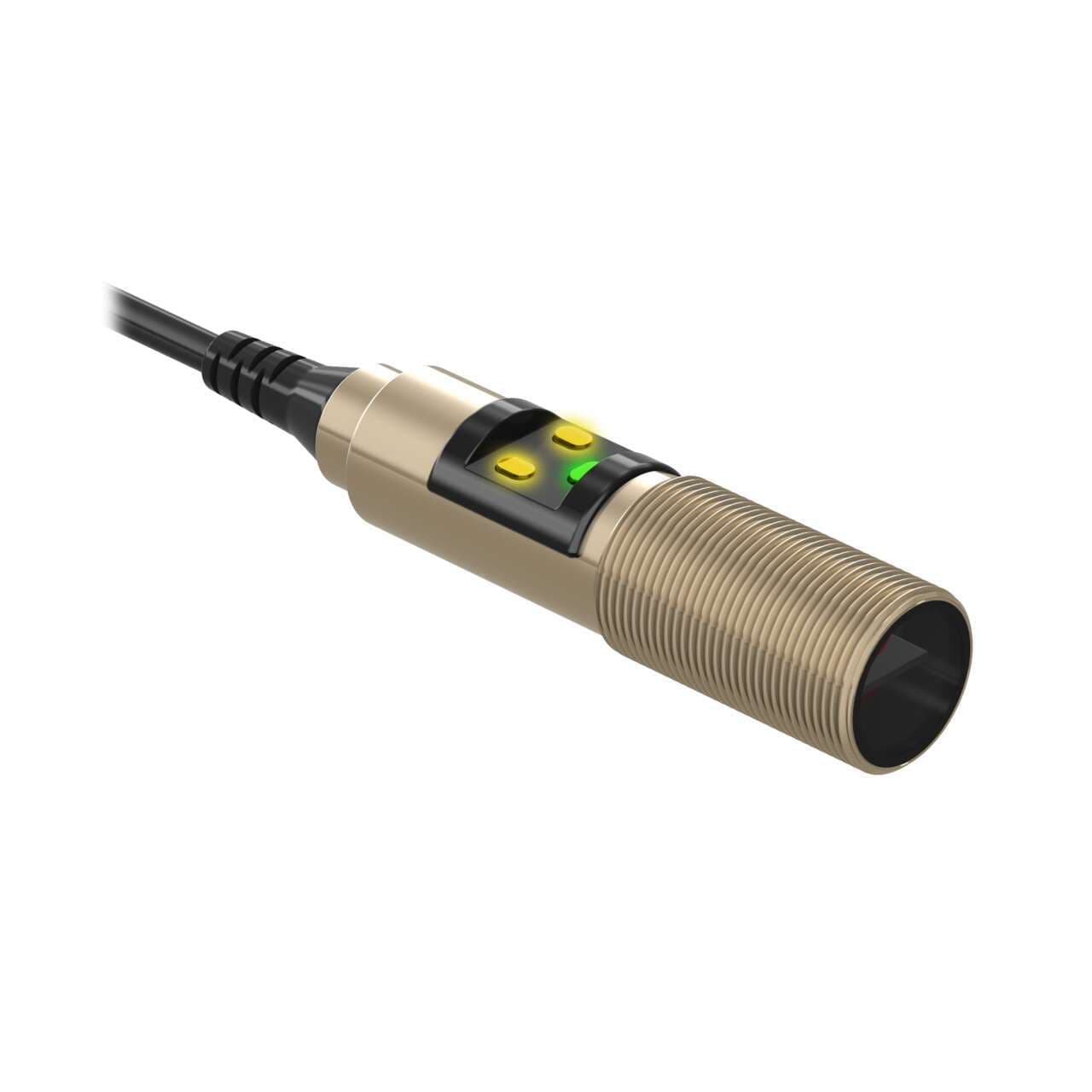

Banner Engineering M18-3VPFF75-Q5 is a fixed-field photo-electric sensor from the M18-3 (Nickel-plated brass) series, designed with a background/foreground suppression system. It features a visible red light with a wavelength of 624 nm and is housed in a nickel-plated brass with an acrylic lens and a PVC connector. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70°C. The M18-3VPFF75-Q5 offers a degree of protection rated at IP67 and IP69K, with an operating mode that includes Light-ON and Dark-ON options. It has an M18 cylindrical threaded/barrel shape, a sensing distance of 75mm, and includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 1.5ms / 0.0015 s.
