M18-3VNRL-2M Banner Proximity Sensors

Name: M18-3VNRL-2M
Brand: Banner

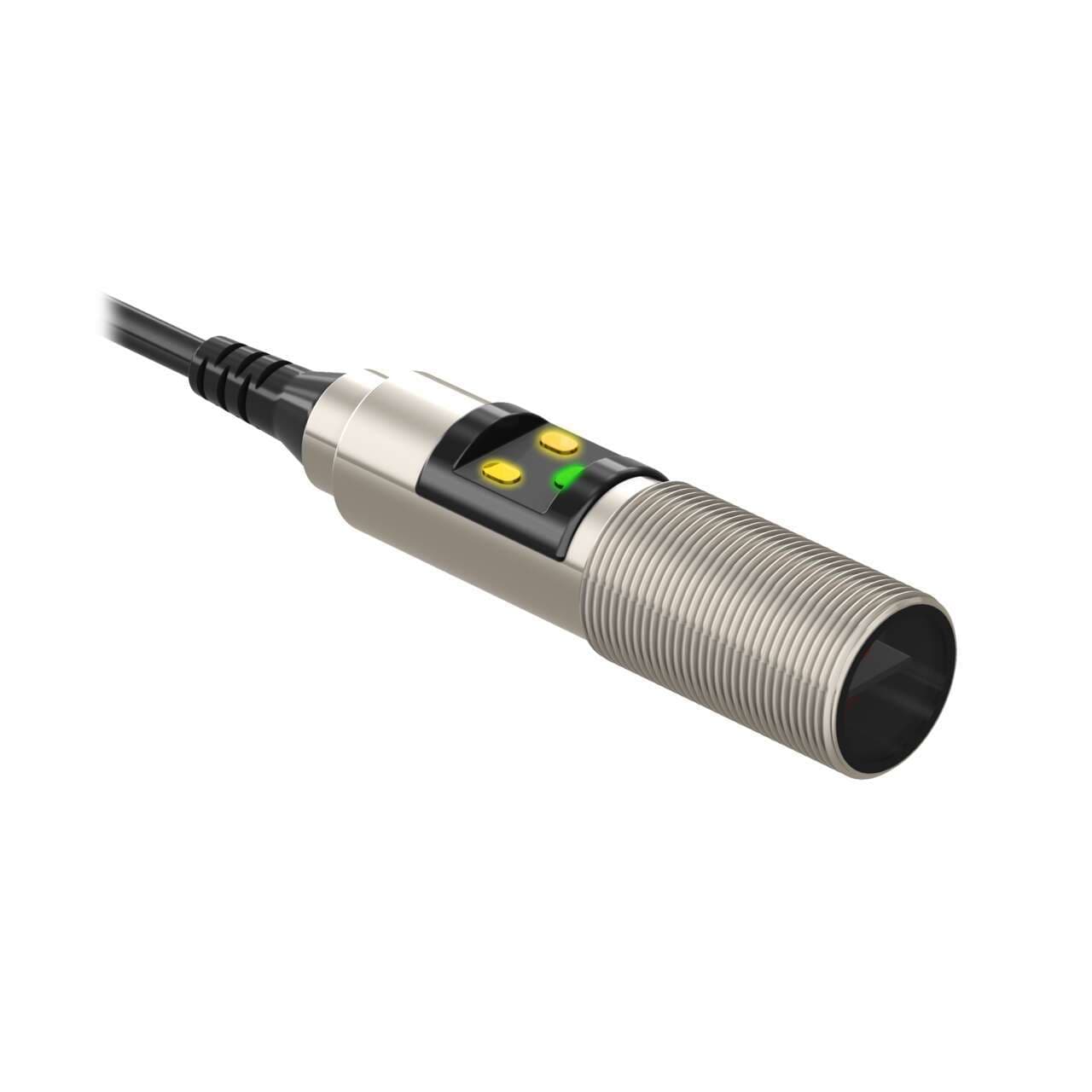

Banner M18-3VNRL-2M M18-3 Series: Nickel-Plated Brass: Receiver; Range: 25 m; Input: 10-30 V dc; Outputs: Complementary NPN; 2 m 4-conductor PVC Cable

Part#:M18-3VNRL-2M

Manufacturer:Banner

Alt. Part#:88186

Product Lifecycle:Active

Get a quick Quote!

M18-3 Series: Nickel-Plated Brass: Receiver; Range: 25 m; Input: 10-30 V dc; Outputs: Complementary NPN; 2 m 4-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18-3VNRL-2M Banner price in the box on the right side or send a quick quote.

Product Details

Weight
99.79024 g
Country Of Origin
CN
DeviceNet
No
IO Link
No
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Feature: Encapsulated
No
Feature: Washdown Rated
Yes
Feature: Timing (Hold/Delay)
No
Indicator
LEDs
Opposed Mode Emitter/Receiver
Receiver
Barrel Diameter (mm)
18
Max Op. Relative Humidity [%]
95% @ 50°C
Adjustments
N/A
Lens Material
Acrylic
NEMA Rating
N/A
IP Rating
IP67, IP69
Number of Pins
4
Repeatability (µs)
170

Delay at Power-up (ms)

100

Special Feature: Water Detection

Max Op. Temp. (°C)

Special Feature: Remote Teach

Output response time (ms)

1.5

Special Feature: Intrinsically Safe

Operation

Light/Dark Operate

Connection

Cable

Min Op. Temp. (°C)

-40

Quick Disconnect Type

No QD

Power Supply/Supply Voltage

10-30 V dc

Outputs

NPN

Max Sensing Distance (mm)

25000

Cable Length (m)

Input/Output

Discrete

Power

Housing Style

Barrel

Primary Housing Material

Nickel-Plated Brass

Sensing Mode (Detailed)

Receiver

Sensing Mode (General)

Opposed

Sensing Beam

Visible Red LED

Primary brand

Banner Engineering

Sensing distance

25m

Thread size

M18

Design

through-beam system / opposed mode

Ambient air temperature for operation

-40...+70 °C

Product series / family name

M18 barrel series

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Material

Nickel-plated brass housing Acrylic lns.

Order code / Manufacturer SKU

88186

Main function

Sensor (Photo-electric)

Functions

Photo-electric sensor receiver green LED (power ON) 2 x yellow LED (output conducting)

Digital outputs

1 x digital output (NPN transistor)

Response time

1.5ms / 0.0015 s

Sub-range name

M18-3 (nickel-plated brass)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Operating mode

Light-ON Dark-ON

Compliant with standard(s)

cULus CE

Equivalent to

M183VNRL2M

Shape

Cylindrical threaded/barrel

Degree of protection

IP67 IP69K

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18-3VNRL-2M Description

Banner Engineering M18-3VNRL-2M is a photo-electric sensor from the M18-3 (Nickel-plated brass) series designed for through-beam system applications in an M18 cylindrical threaded/barrel shape. This sensor, functioning as a receiver alone, is housed in nickel-plated brass with an acrylic lens. It features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. The sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values at 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP67 and IP69K, ensuring durability in various environmental conditions. The operating modes include Light-ON and Dark-ON, with a sensing distance of up to 25m. It also provides a digital output (NPN transistor; complementary NO/NC) and boasts a quick response time of 1.5ms / 0.0015 s.
