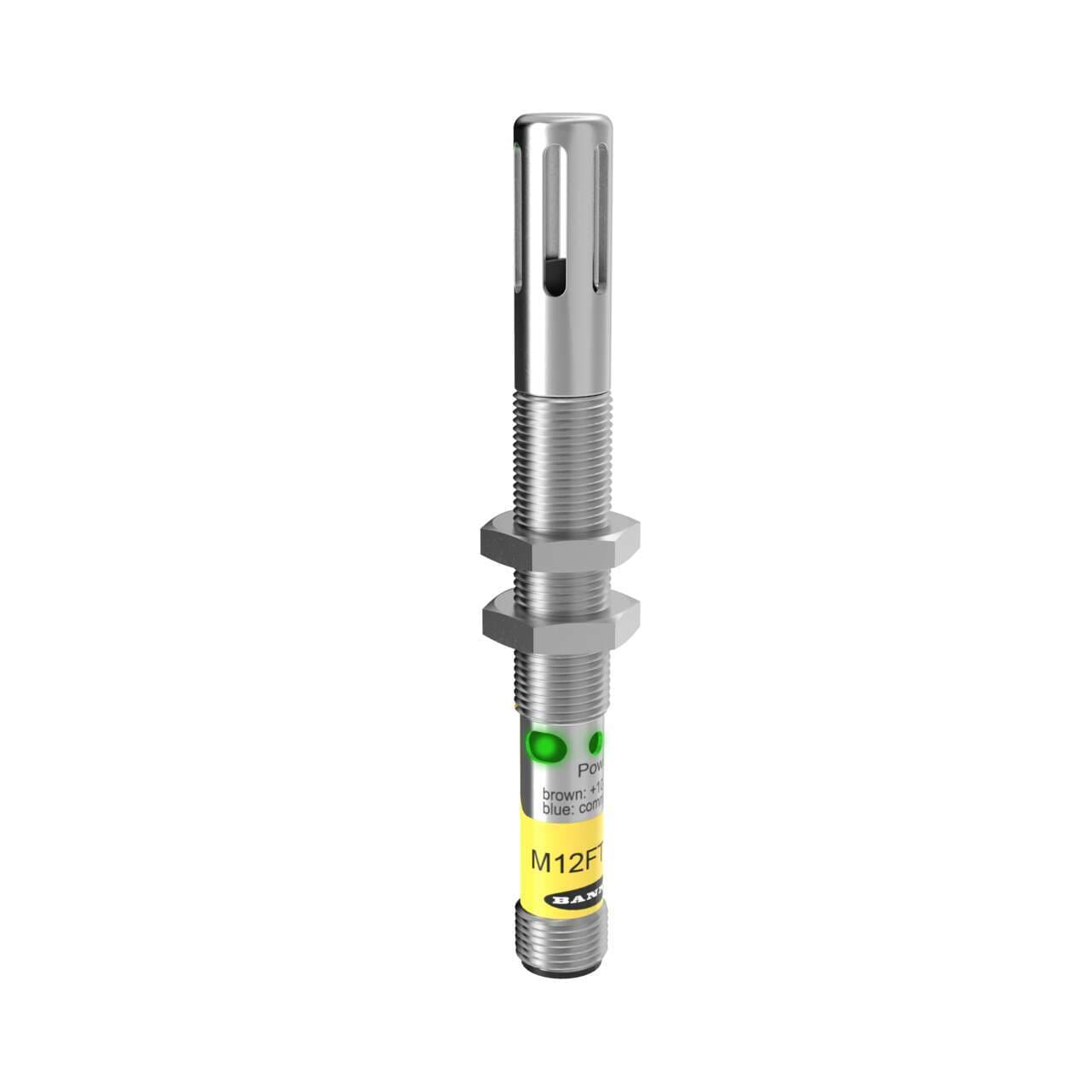

M12FTH4Q Banner Temperature Sensors

Name: M12FTH4Q
Brand: Banner
Price: 299 USD
Availability: BackOrder

Part#:M12FTH4Q

Alt. Part#:25895

Manufacturer:Banner

Category:Temperature Sensors

Product Lifecycle:Active

Product description

M12FTH4Q Sure Cross Temperature and Humidity; Input: 3.6-5.5 V dc; Sensor With 1-Wire Serial Interface

Product Details

Weight
68.0388 g
Country Of Origin
US
RS-232
No
RS-485
No
PROFINET
No
Modbus/TCP
No
1-wire Serial Interface
Yes
Wireless
No
Modbus RTU
No
EtherNet/IP
No
Application: Temperature Input
Yes
Application: Relative Humidity Input
Yes
Feature: Hazardous Area
Yes
Max Operating Temperature ( °C)
85
Relative Humidity
100%
Min Operating Temperature ( °C)
-40
Min Temp Operating Conditions
-40
Hazardous/Intrinsically Safe Classification
Class I, Division 2
Power Supply
3.6-5.5 V dc
Input Details
Temperature/Humidity

Power

Input/Output

Serial

Max Temp Operating Conditions

Environmental Rating (NEMA)

NEMA 6

Environmental Rating (IP)

IP67

Housing Style

Barrel - Straight

Device Type

Sensor

Primary brand

Banner Engineering

Supply voltage (DC)

3.6Vdc-5.5Vdc (5Vdc nom.)

Degree of protection

IP67 NEMA 6

Main function

Sensor (Temperature)

Sub-range name

M12F

Product series / family name

SureCross series

Design

1-wire serial interface

Connection type

Pre-equipped with 5-pin Euro-style M12 connector

Ambient air temperature for operation

-40...+85 °C

Thread size

M12

Shape

Cylindrical threaded/barrel

Order code / Manufacturer SKU

25895

Functions

Ambient temperature/humidity sensor green LED (power ON) red LED (output state)

Material

metal housing

Compliant with standard(s)

cCSAus

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M12FTH4Q on Powermatic Associates is $299.00. Order now.

About the product

Banner Engineering M12FTH4Q is a temperature sensor from the M12F series, designed with a 1-wire serial interface in an M12 cylindrical threaded/barrel shape. It features a metal housing and is pre-equipped with a 5-pin Euro-style M12 connector. This sensor operates on a supply voltage of 3.6Vdc to 5.5Vdc, with a nominal voltage of 5Vdc. It is capable of measuring temperatures ranging from -40 to +85°C. The M12FTH4Q offers a degree of protection rated at IP67 NEMA 6 and has an M12 thread size.

M12FTH4Q Related Documents

162669.pdf

$299.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$299.00

$299.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare M12FTH4Q with other Temperature Sensors products

Weight

Country Of Origin

RS-232

RS-485

PROFINET

Modbus/TCP

1-wire Serial Interface

Wireless

Modbus RTU

EtherNet/IP

Selected product

Backordered

M12FTH4Q

Banner

M12FTH4Q Sure Cross Temperature and Humidity; Input: 3.6-5.5 V dc; Sensor With 1-Wire Serial Interfa...

Weight68.0388 g

Country Of OriginUS

RS-232No

RS-485No

PROFINETNo

Modbus/TCPNo

1-wire Serial InterfaceYes

WirelessNo

Modbus RTUNo

EtherNet/IPNo

1 in stock

M12FTH3Q

Banner

Temperature and Humidity M12 Housing; Input: 3.6-5.5 V dc or 12-24 V dc; Sensor With Modbus RTU; RS-...

Weight59.5566296 g

Country Of OriginUS

RS-232-

RS-485-

PROFINET-

Modbus/TCP-

1-wire Serial Interface-

Wireless-

Modbus RTU-

EtherNet/IP-

About the manufacturer

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...

Relevant products

M12E

Verified stock: 0

M12 Series: Emitter; Range: 5 m; Input 10-30 V dc; Output: No output; 2 m (6.5 ft) Cable

Banner

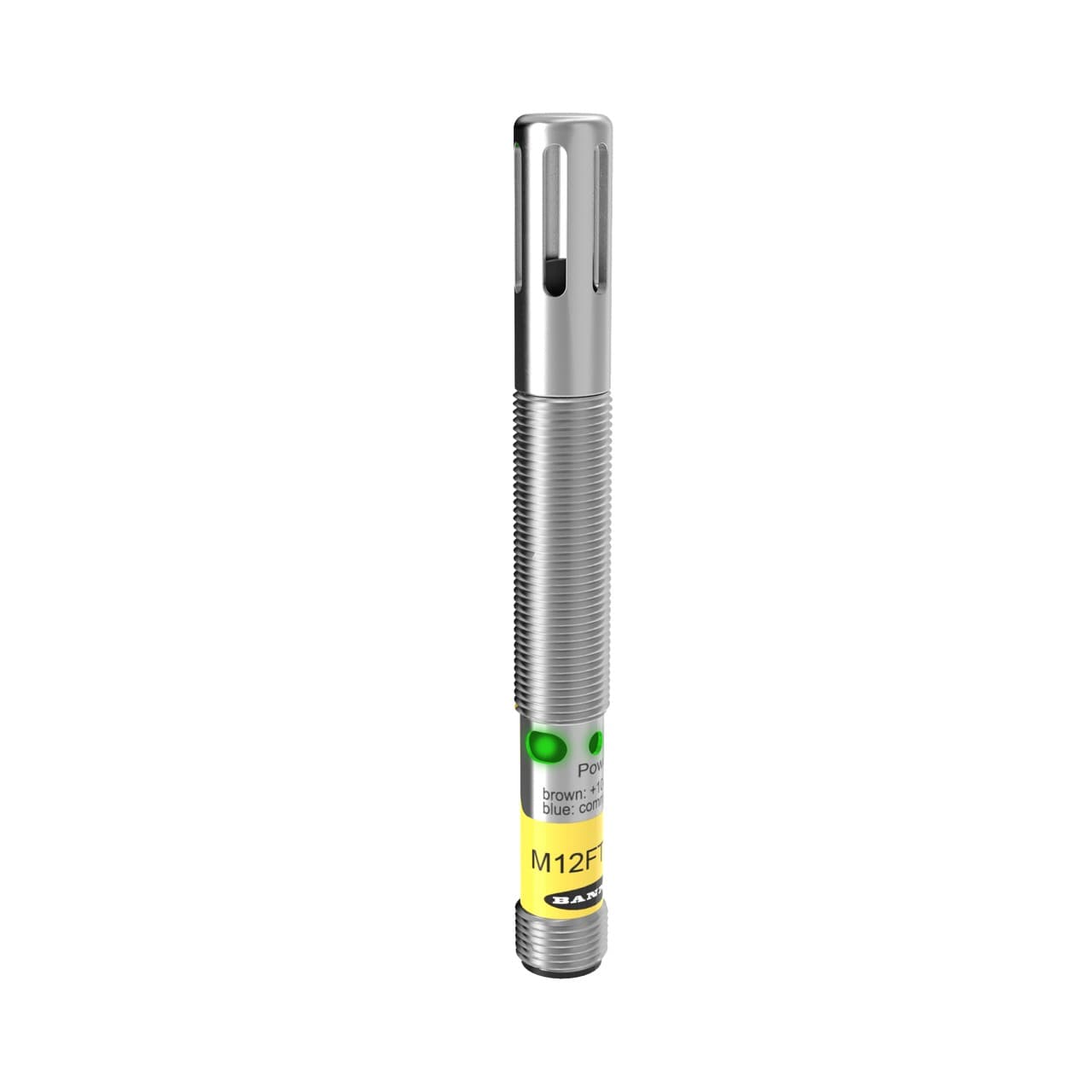

M12FT3Q
