LX6RQ Banner Measurement Sensors

LX6RQ on Powermatic Associates
Banner

Part#:LX6RQ

Alt. Part#:2679

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

LX Series: Receiver; Standard Range; Range: Normal 300 mm - 2 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; DO Output; 150 mm (6 in) M12 Pigtail QD

Product Details

  • Weight
    308.44256 g
  • Country Of Origin
    MX
  • Minimum Object Detection [mm]
    9.5
  • NEMA Rating
    N/A
  • IP Rating
    IP65
  • Min Op. Temperature (°C)
    -20
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Max Op. Temperature (°C)
    70
  • Operation
    Dark Operate
  • Indicator
    LEDs
  • Special Feature: Remote Teach
    No
  • Lens Material
    Acrylic
  • Adjustments
    N/A
  • Output response time (ms)
    1.6 ON/7 OFF
  • Number of Pins
    5
  • Repeatability (µs)
    N/A
  • Slot Overall Depth (mm)
    31.8
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    Bipolar (NPN & PNP)
  • Power
    DC
  • Minimum Object Detection (mm)
    9.5
  • Quick Disconnect Type
    M12 (Euro)
  • Slot Depth/Array Length (mm)
    143
  • Connection
    Pigtail QD
  • Max Sensing Range (mm)
    2000
  • Primary Housing Material
    Aluminum
  • Sensing Mode (Detailed)
    Receiver
  • Housing Style
    Array
  • Cable Length (m)
    0.2
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Response time
    1.6ms / 0.0016 s
  • Compliant with standard(s)
    cURus CE
  • Sub-range name
    LX series
  • Primary brand
    Banner Engineering
  • Sensing distance
    30cm...2m
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Ambient air temperature for operation
    -20...+70 °C
  • Main function
    Sensor (Array)
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector
  • Material
    Aluminium housing Acrylic lns. Zinc (die-cast) (end cap)
  • Net Depth (mm)
    31.8 mm
  • Functions
    Standard-range part-sensing light screen cross-hatched array receiver green LED (power ON) yellow LED (output state)
  • Degree of protection
    IP65
  • Net Width (mm)
    25.4 mm
  • Operating mode
    Light-ON Dark-ON
  • Dimensions
    143mm array length
  • Order code / Manufacturer SKU
    02679
  • Net Height (mm)
    189.6 mm
  • Detectable object size
    9.5mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LX6RQ on Powermatic Associates is $424.00. Order now.

About the product

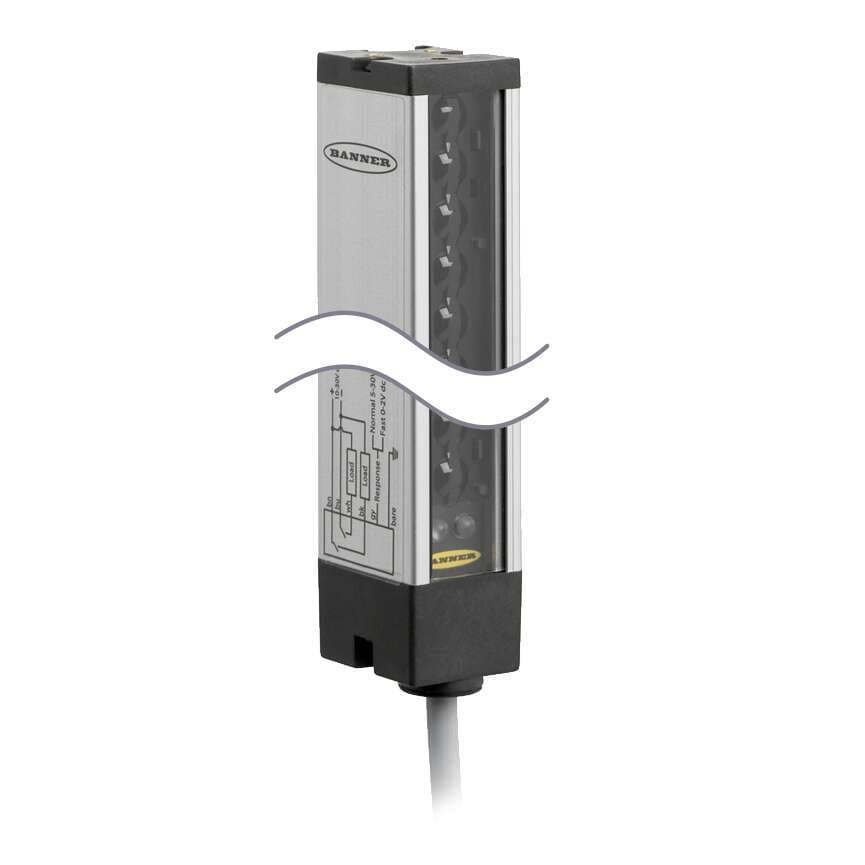

Banner Engineering LX6RQ is a sensor array with a standard-range part-sensing light screen cross-hatched array, designed as a receiver alone. It features a 143mm array length and is housed in aluminum with an acrylic lens and die-cast zinc end caps. This unit is pre-wired with a 6-inch (150mm) pigtail terminated with a 5-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The LX6RQ has a net height of 190mm, a width of 26mm, and a depth of 32mm. It is designed to operate in ambient air temperatures ranging from -20 to +70 degrees Celsius and offers a degree of protection rated at IP65. The operating modes include Light-ON and Dark-ON, with a sensing distance of 30cm to 2m. It features 1 x digital output (PNP/NPN transistor) and has a response time of 1.6ms. The detectable object size for this sensor is 9.5mm.
