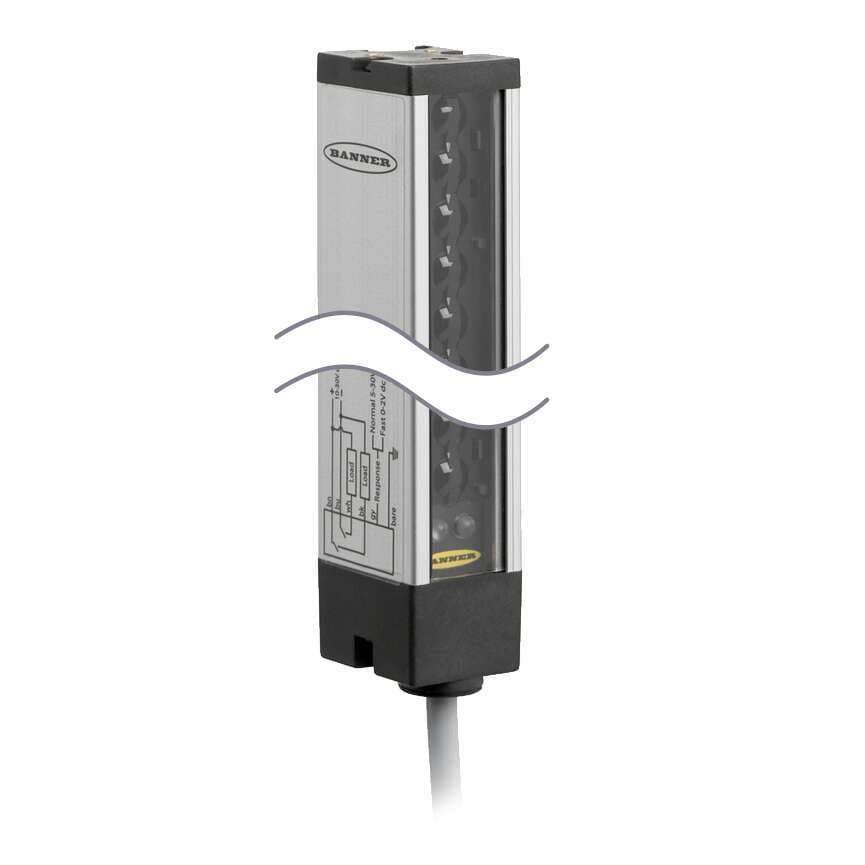

LX21EQ Banner Measurement Sensors

Product Details

• Weight
  657.7084 g
• Country Of Origin
  MX
• Max Op. Relative Humidity (%)
  90% @ 50°C
• Number of Pins
  5
• Adjustments
  N/A
• Repeatability (µs)
  N/A
• Output response time (ms)
  5.6 ON/11 OFF
• Slot Overall Depth (mm)
  25.4
• Minimum Object Detection (mm)
  9.5
• Cable Length (m)
  0.2
• Max Sensing Range (mm)
  2000
• Slot Depth/Array Length (mm)
  523
• Quick Disconnect Type
  M12 (Euro)
• Housing Style
  Array
• Primary Housing Material
  Aluminum
• Sensing Mode (Detailed)
  Emitter
• Minimum Object Detection [mm]
  9.5
• Min Op. Temperature (°C)
  -20
• NEMA Rating
  N/A
• IP Rating
  IP65
Max Op. Temperature (°C)
70
Indicator
LEDs
Operation
N/A
Special Feature: Remote Teach
No
Lens Material
Acrylic
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Power
DC
Sub-range name
LX series
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector
Degree of protection
IP65
Ambient air temperature for operation
-20...+70 °C
Detectable object size
9.5mm
Main function
Sensor (Array)
Functions
Standard-range part-sensing light screen cross-hatched array emitter green LED (power ON) red LED (failure)
Material
Aluminium housing Acrylic lns. Zinc (die-cast) (end cap)
Order code / Manufacturer SKU
71800
Net Height (mm)
570.6 mm
Compliant with standard(s)
cURus CE
Net Depth (mm)
31.8 mm
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Dimensions
523mm array length
Net Width (mm)
25.4 mm
