LX21R Banner Measurement Sensors

Name: LX21R
Brand: Banner

Banner LX21R LX Series: Receiver; Standard Range; Range: Normal 300 mm - 2 m; Input 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

Part#:LX21R

Manufacturer:Banner

Alt. Part#:71814

Product Lifecycle:Active

Get a quick Quote!

LX Series: Receiver; Standard Range; Range: Normal 300 mm - 2 m; Input 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LX21R Banner price in the box on the right side or send a quick quote.

Product Details

Weight
616.88512 g
Country Of Origin
MX
Indicator
LEDs
NEMA Rating
N/A
IP Rating
IP65
Minimum Object Detection [mm]
9.5
Max Op. Relative Humidity (%)
90% @ 50°C
Min Op. Temperature (°C)
-20
Lens Material
Acrylic
Max Op. Temperature (°C)
70
Operation
Dark Operate
Special Feature: Remote Teach
No
Adjustments
N/A
Repeatability (µs)
N/A
Minimum Object Detection (mm)
9.5
Slot Overall Depth (mm)
31.8
Outputs
Bipolar (NPN & PNP)
Output response time (ms)
5.6 ON/11 OFF
Power Supply/Supply Voltage
10-30 V dc
Number of Pins
5

Connection

Cable

Power

Slot Depth/Array Length (mm)

523

Cable Length (m)

Primary Housing Material

Aluminum

Housing Style

Array

Quick Disconnect Type

No QD

Sensing Mode (Detailed)

Receiver

Max Sensing Range (mm)

2000

Material

Aluminium housing Acrylic lns. Zinc (die-cast) (end cap)

Net Height (mm)

570.6 mm

Detectable object size

9.5mm

Degree of protection

IP65

Net Width (mm)

25.4 mm

Digital outputs

1 x digital output (PNP/NPN transistor)

Primary brand

Banner Engineering

Sensing distance

30cm...2m

Dimensions

523mm array length

Order code / Manufacturer SKU

71814

Main function

Sensor (Array)

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Sub-range name

LX series

Operating mode

Light-ON Dark-ON

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Response time

5.6ms / 0.0056 s

Ambient air temperature for operation

-20...+70 °C

Functions

Standard-range part-sensing light screen cross-hatched array receiver green LED (power ON) yellow LED (output state)

Compliant with standard(s)

cURus CE

Net Depth (mm)

31.8 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LX21R Description

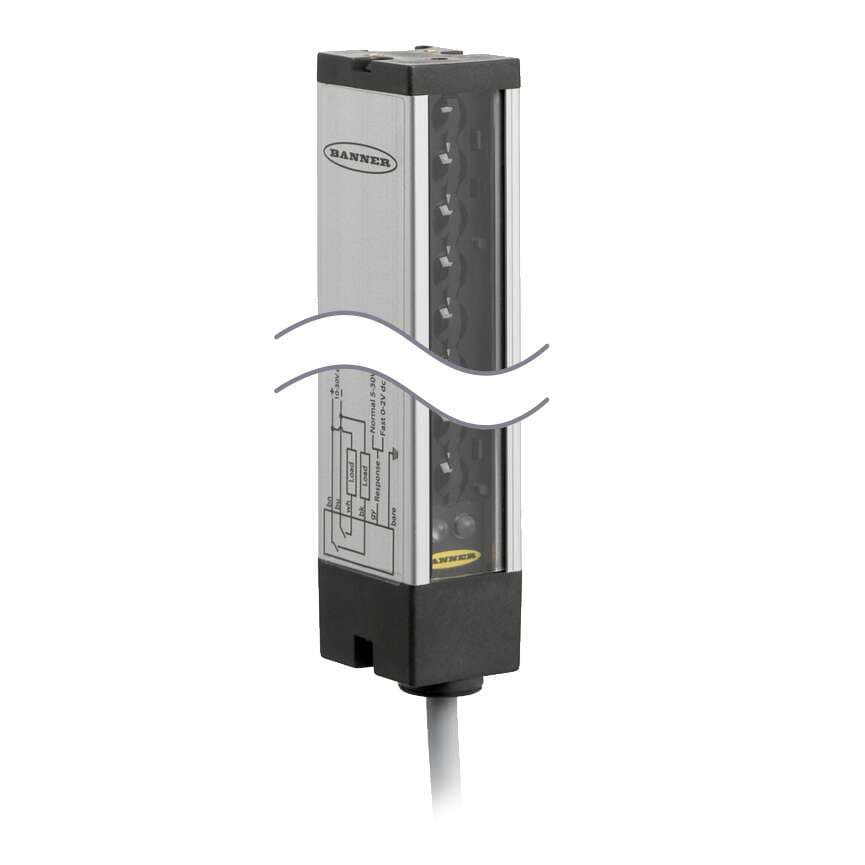

Banner Engineering LX21R is a standard-range part-sensing light screen cross-hatched array sensor, designed primarily as a receiver. It features a 523mm array length housed in aluminum with an acrylic lens and die-cast zinc end caps. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy integration into various systems. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. The LX21R has a net height of 571mm, a width of 26mm, and a depth of 32mm. It is built to function within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP65, making it suitable for diverse operating environments. The operating modes include Light-ON and Dark-ON, with a sensing distance ranging from 30cm to 2m. It features 1 x digital output (PNP/NPN transistor) and boasts a quick response time of 5.6ms. The sensor is capable of detecting objects as small as 9.5mm, ensuring precise part sensing in various applications.
