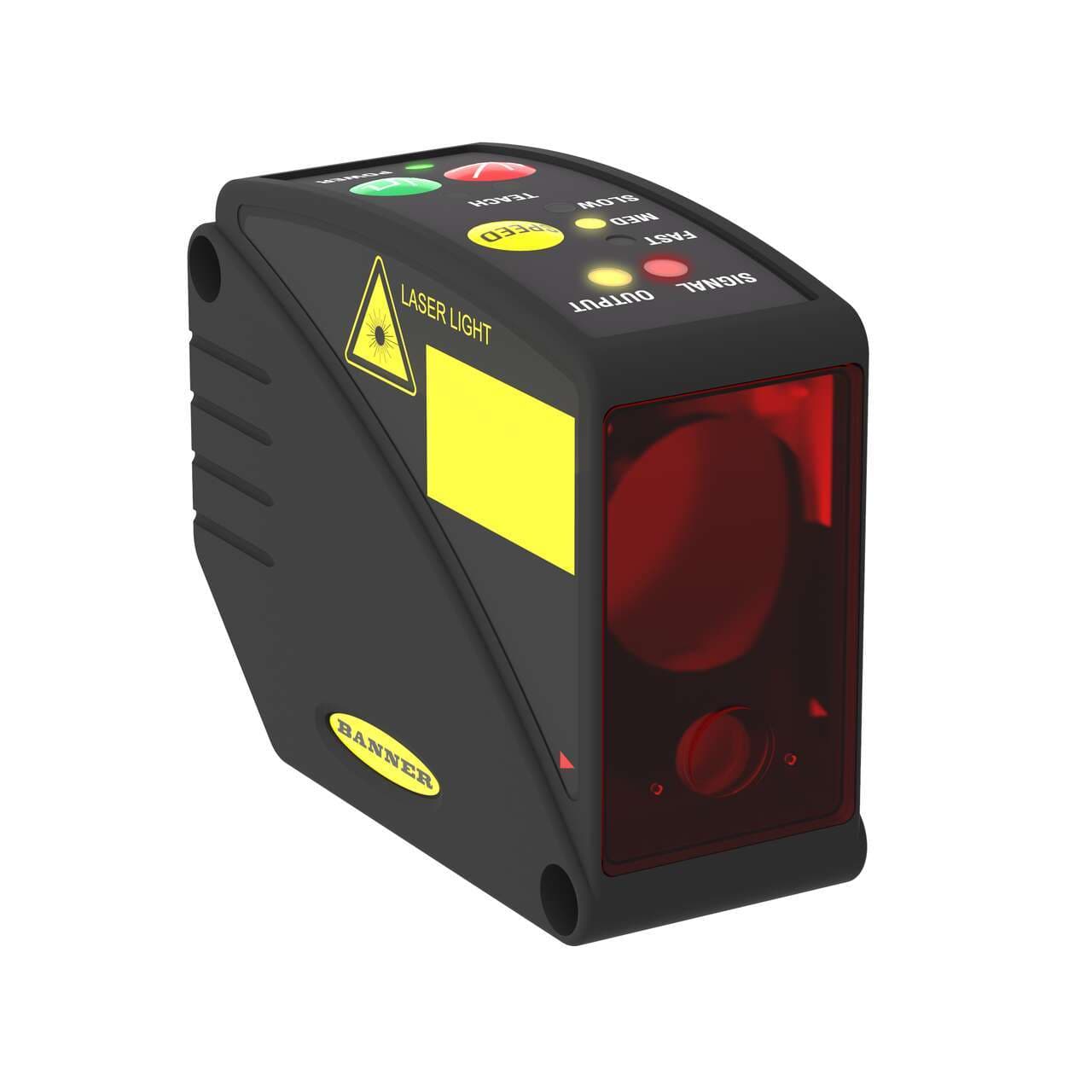

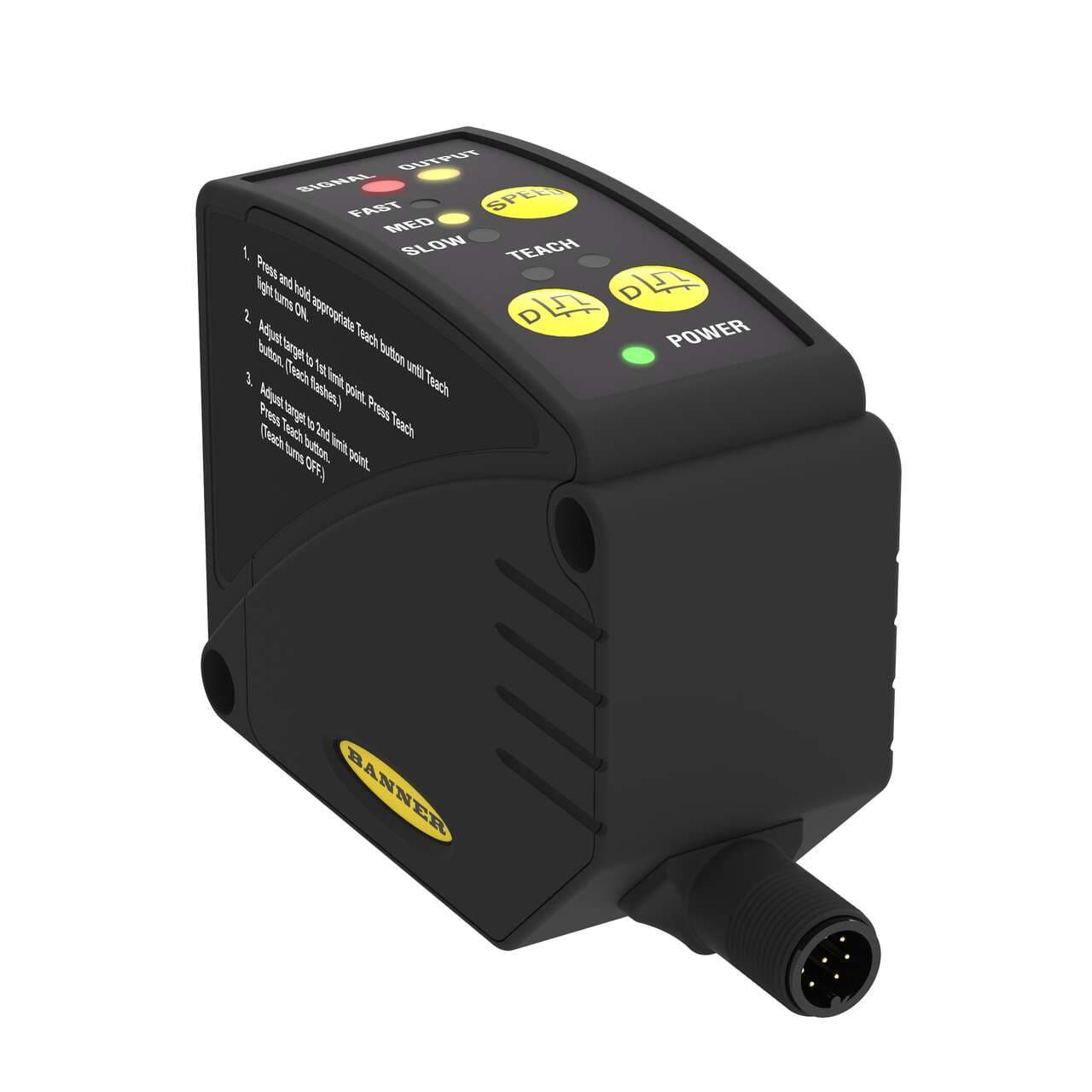

LT3PUQ Banner Optical Sensors

Product Details

• Weight
  181.4368 g
• Country Of Origin
  US
• Profibus
  No
• SSI
  No
• IO Link
  No
• Feature: Chemical Resistant
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• RS-422
  No
• PROFINET
  No
• RS-232
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• RS-485
  No
• Common Ethernet Protocol
  No
• Typical Laser Lifetime (Hours)
  75000
• Feature: Remote Teach
  Yes
• Power/Current Consumption (exclusive of load)
  108 mA max @ 24 V dc
• Max Ambient Light (Lux)
  5000
• Max Off-state Leakage Current (µA)
  5
• Laser Control
  Yes
Feature: Timing (Hold/Delay)
No
Minimum Window Size (mm)
20
Color Sensitivity (Typical)
90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
Discrete Output Hysteresis (mm)
3
Warm-up Time (minutes)
30
Spot Size (@ Reference Distance)
6 mm
Analog Linearity (mm)
+/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Window Material
Acrylic
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Minimum Response Time (ms)
1
NEMA Rating
NEMA 6
Max Operating Temperature (°C)
50
Output Protection
Protected against short circuit conditions
IP Rating
IP67
Temperature Effect (mm/°C)
2 mm/°C
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Adjustments
Push Button; Remote Teach
Max Discrete (Switched) Output (mA)
100
Discrete (Switched) Outputs
1 PNP
Number of Pins
8
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.6 V at 100 mA
Sensing Beam Wavelength (nm)
658
Minimum Sensing Distance (mm)
300
Delay at Power-up (ms)
1000
Power Supply
12-24 V dc
Laser Classification
Class 2
Indicator
LED(s)
Max Sensing Distance (mm)
5000
Quick Disconnect Type
M12 (Euro)
Analog Resolution/Discrete Repeatability
1 to 1.25 at slow response speed
Analog Output Configuration
0-10 V dc
Connection
Integral QD
Input/Output
Analog & Discrete
Sensing Mode (Detailed)
Time of Flight
Housing Style
Rectangular
Device Type
Sensor
Primary Housing Material
ABS
Sensing Mode (General)
Proximity
PC Configurable
No
Power
DC
Max Measurement Range
>1 m - <=20 m
Sensing Beam
Visible Red Laser
