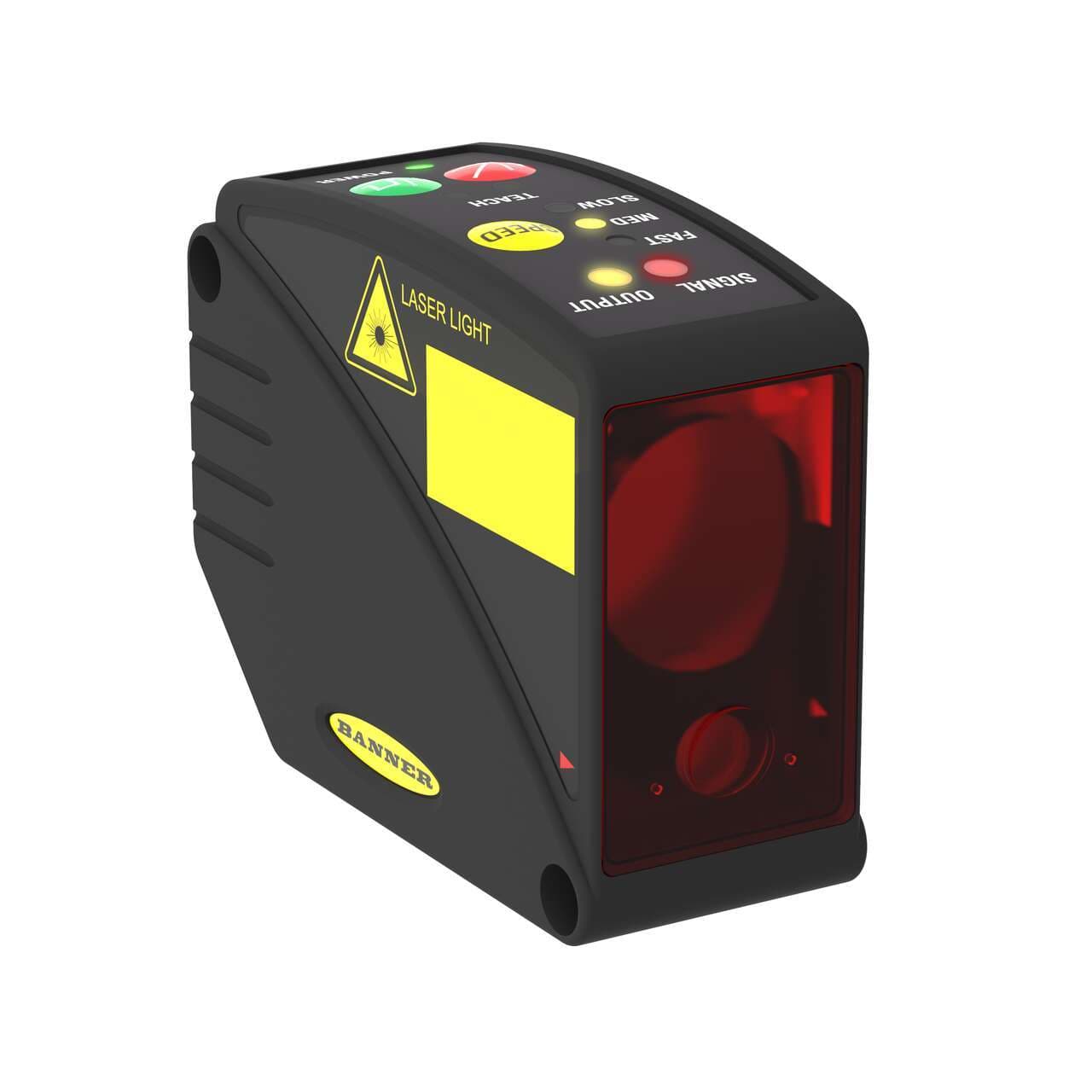

LT3PILVQ Banner Optical Sensors

Product Details

• Weight
  308.44256 g
• Country Of Origin
  US
• RS-422
  No
• Max Ambient Light (Lux)
  5000
• Discrete Output Hysteresis (mm)
  6
• Analog Linearity (mm)
  +/- 60 mm from 0.5 to 50 m
• Max Operating Temperature (°C)
  50
• Discrete (Switched) Outputs
  1 PNP
• Power Supply
  12-24 V dc
• Indicator
  LED(s)
• Delay at Power-up (ms)
  1000
• Input/Output
  Analog & Discrete
• Analog Resolution/Discrete Repeatability
  5 to 6 at slow response speed
• Connection
  Integral QD
• Sensing Mode (General)
  Retroreflective
• Device Type
  Sensor
• Analog Output Configuration
  4-20 mA
• Laser Classification
  Class 1
• Primary Housing Material
  ABS
• PC Configurable
  No
Housing Style
Rectangular
Sensing Mode (Detailed)
Time of Flight
Power
DC
Max Measurement Range
>20 m
Sensing Beam
Visible Red Laser
Light Color
Visible red
Analog outputs
1 x analog output (4-20mA)
Order code / Manufacturer SKU
67280
Sub-range name
LT3
Supply voltage (DC)
12Vdc-24Vdc
Shape
Rectangular
Connection type
Pre-equipped with 8-pin Euro-style M12 connector
Profibus
No
1-wire Serial Interface
No
Wireless
No
SSI
No
RS-485
No
RS-232
No
PROFINET
No
Common Ethernet Protocol
No
IO Link
No
Feature: Chemical Resistant
No
Feature: Timing (Hold/Delay)
No
Feature: Remote Teach
Yes
Typical Laser Lifetime (Hours)
75000
Power/Current Consumption (exclusive of load)
108 mA max @ 24 V dc
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Max Off-state Leakage Current (µA)
5
Laser Control
Yes
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Minimum Window Size (mm)
40
Spot Size (@ Reference Distance)
6 mm
Minimum Response Time (ms)
1
Warm-up Time (minutes)
30
Window Material
Acrylic
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
NEMA Rating
NEMA 6
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Max Discrete (Switched) Output (mA)
100
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Number of Pins
8
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.6 V at 100 mA
Temperature Effect (mm/°C)
3 mm/°C
Adjustments
Push Button; Remote Teach
Sensing Beam Wavelength (nm)
658
Minimum Sensing Distance (mm)
500
Max Sensing Distance (mm)
50000
Quick Disconnect Type
M12 (Euro)
Material
ABS housing Acrylic window
Protection functions
Short-circuit
Design
retro-reflective time-of-flight system
Wavelength
658 nm
Degree of protection
IP67 NEMA 6
Ambient air temperature for operation
+50 °C
Main function
Sensor (Distance)
Functions
Class 1 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
Digital outputs
1 x digital output (PNP transistor)
Primary brand
Banner Engineering
Product series / family name
L-GAGE series
Sensing distance
50cm...50m
