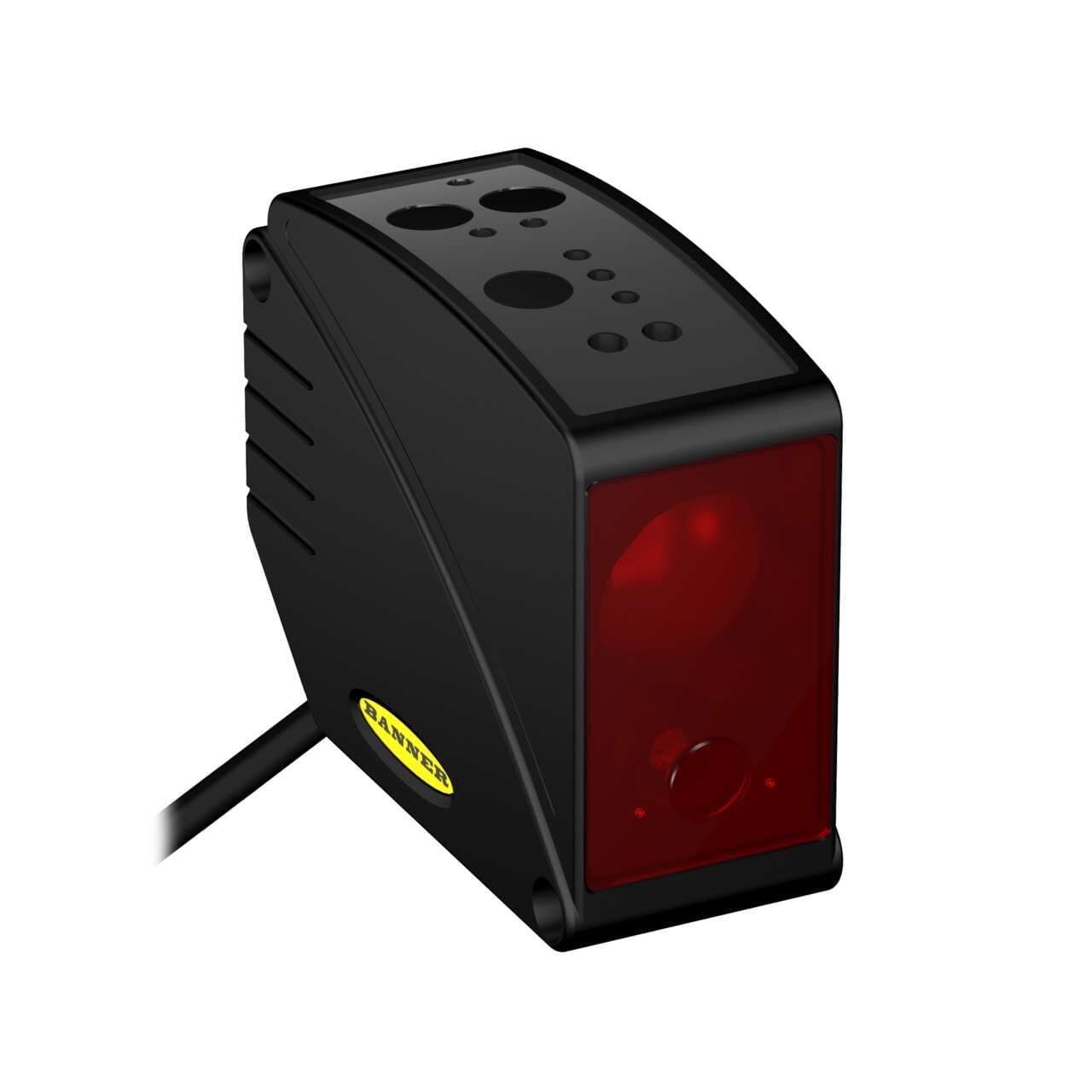

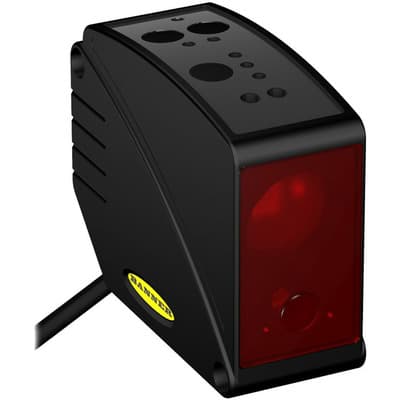

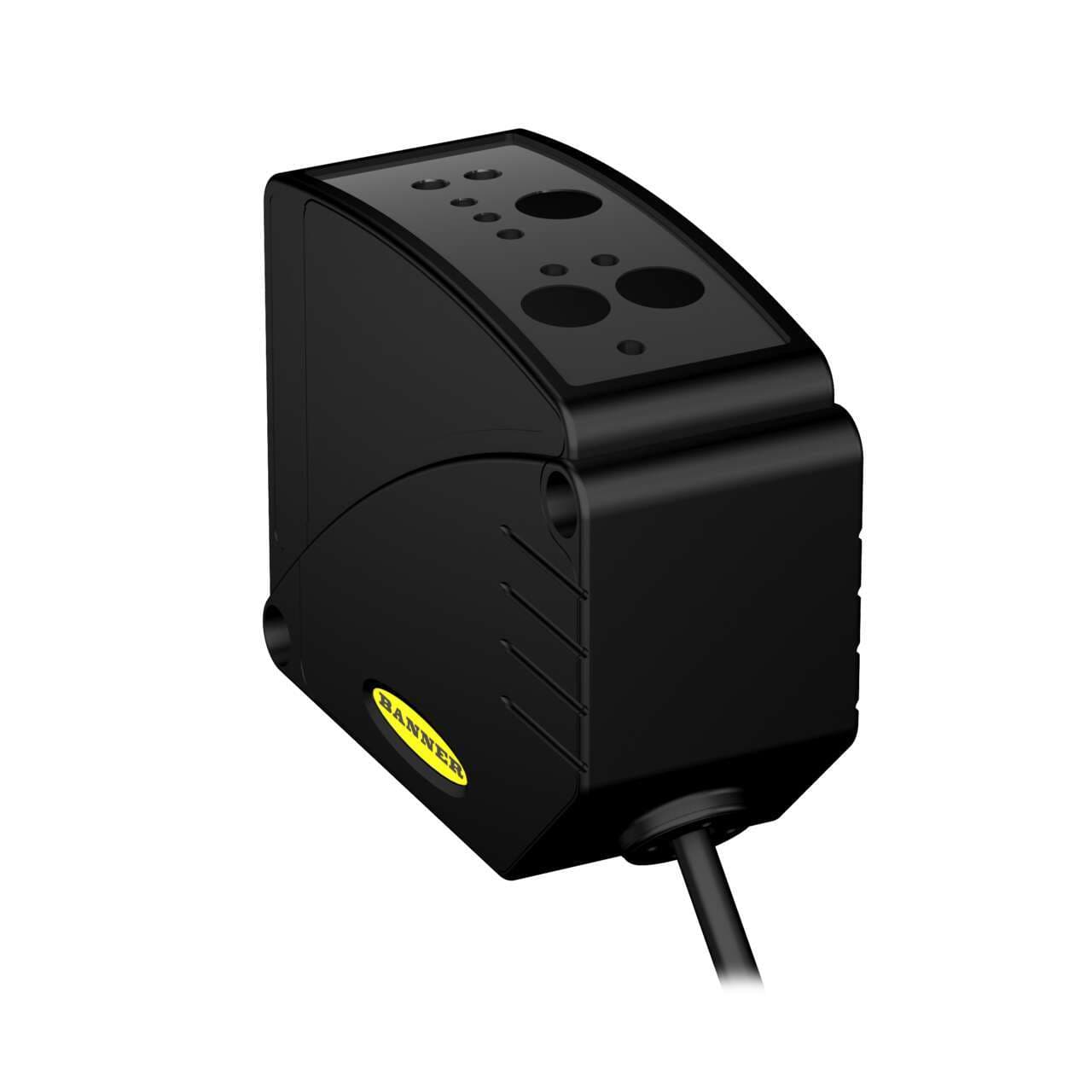

Banner Engineering LT3PILV is a Class 1 laser photo-electric distance sensor/transmitter belonging to the LT3 series. It features a retro-reflective time-of-flight system with TEACH mode and emits visible red light from a 658 nm wavelength source. The sensor is housed in ABS with an acrylic window, shaped rectangularly, and comes pre-wired with a 6.5ft / 2m cable that terminates in bare end flying leads. It operates on a supply voltage of 12Vdc-24Vdc and can function within an ambient air temperature up to +50°C. The LT3PILV offers protection against short-circuits and boasts a degree of protection rated at IP67 NEMA 6. It is equipped with one analog output (4-20mA) and one digital output (PNP transistor), capable of sensing distances from 50cm to 50m.

LT3PILV

Banner Engineering LT3PILV is a Class 1 laser photo-electric distance sensor/transmitter belonging to the LT3 series. It features a retro-reflective time-of-flight system with TEACH mode and emits visible red light from a 658 nm wavelength source. The sensor is housed in ABS with an acrylic window, shaped rectangularly, and comes pre-wired with a 6.5ft / 2m cable that terminates in bare end flying leads. It operates on a supply voltage of 12Vdc-24Vdc and can function within an ambient air temperature up to +50°C. The LT3PILV offers protection against short-circuits and boasts a degree of protection rated at IP67 NEMA 6. It is equipped with one analog output (4-20mA) and one digital output (PNP transistor), capable of sensing distances from 50cm to 50m.

  • ProfibusNo
  • 1-wire Serial InterfaceNo
  • WirelessNo
  • SSINo
  • RS-485No
  • RS-232No
  • RS-422No
  • Common Ethernet ProtocolNo
  • Feature: Timing (Hold/Delay)No
  • Feature: Chemical ResistantNo
  • Feature: Remote TeachYes
  • Typical Laser Lifetime (Hours)75000
  • PROFINETNo
  • IO LinkNo
  • Max Off-state Leakage Current (µA)5
  • Supply Protection CircuitryProtected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)108 mA max @ 24 V dc
  • Max Ambient Light (Lux)5000
  • Laser ControlYes
  • Minimum Window Size (mm)40
  • Discrete Output Hysteresis (mm)6
  • Remote Teach and Laser Control Input Impedence18 kΩ min. (65 kΩ min at 5 V dc)
  • Analog Linearity (mm)+/- 60 mm from 0.5 to 50 m
  • Minimum Response Time (ms)1
  • Spot Size (@ Reference Distance)6 mm
  • Window MaterialAcrylic
  • Warm-up Time (minutes)30
  • Max Op. Relative Humidity Non-Condensing (%)90 at 50°C
  • IP RatingIP67
  • Max Operating Temperature (°C)50
  • Discrete (Switched) Outputs1 PNP
  • NEMA RatingNEMA 6
  • Output ProtectionProtected against short circuit conditions
  • Max Discrete (Switched) Output (mA)100
  • Analog Current Output Rating1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
  • Delay at Power-up (ms)1000
  • Output Saturation Voltage PNP Outputs< 1.2 V at 10 mA; < 1.6 V at 100 mA
  • Number of Pins8
  • Sensing Beam Wavelength (nm)658
  • AdjustmentsPush Button; Remote Teach
  • Temperature Effect (mm/°C)3 mm/°C
  • Power Supply12-24 V dc
  • Minimum Sensing Distance (mm)500
  • IndicatorLED(s)
  • Analog Output Configuration4-20 mA
  • Quick Disconnect TypeNo QD
  • Max Sensing Distance (mm)50000
  • Analog Resolution/Discrete Repeatability5 to 6 at slow response speed
  • ConnectionFlying Leads
  • Primary Housing MaterialABS
  • Laser ClassificationClass 1
  • Input/OutputAnalog & Discrete
  • Device TypeSensor
  • Housing StyleRectangular
  • Sensing Mode (General)Retroreflective
  • Sensing Mode (Detailed)Time of Flight
  • Cable Length (m)2
  • PC ConfigurableNo
  • PowerDC
  • Max Measurement Range>20 m
  • Sensing BeamVisible Red Laser
  • Supply voltage (DC)12Vdc-24Vdc
  • Wavelength658 nm
  • Light ColorVisible red
  • Sub-range nameLT3
  • Designretro-reflective time-of-flight system
  • ShapeRectangular
  • Ambient air temperature for operation+50 °C
  • Digital outputs1 x digital output (PNP transistor)
  • Primary brandBanner Engineering
  • FunctionsClass 1 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
  • Degree of protectionIP67 NEMA 6
  • Main functionSensor (Distance)
  • Product series / family nameL-GAGE series
  • Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Analog outputs1 x analog output (4-20mA)
  • Sensing distance50cm...50m
  • MaterialABS housing Acrylic window
  • Protection functionsShort-circuit
  • Order code / Manufacturer SKU67279
