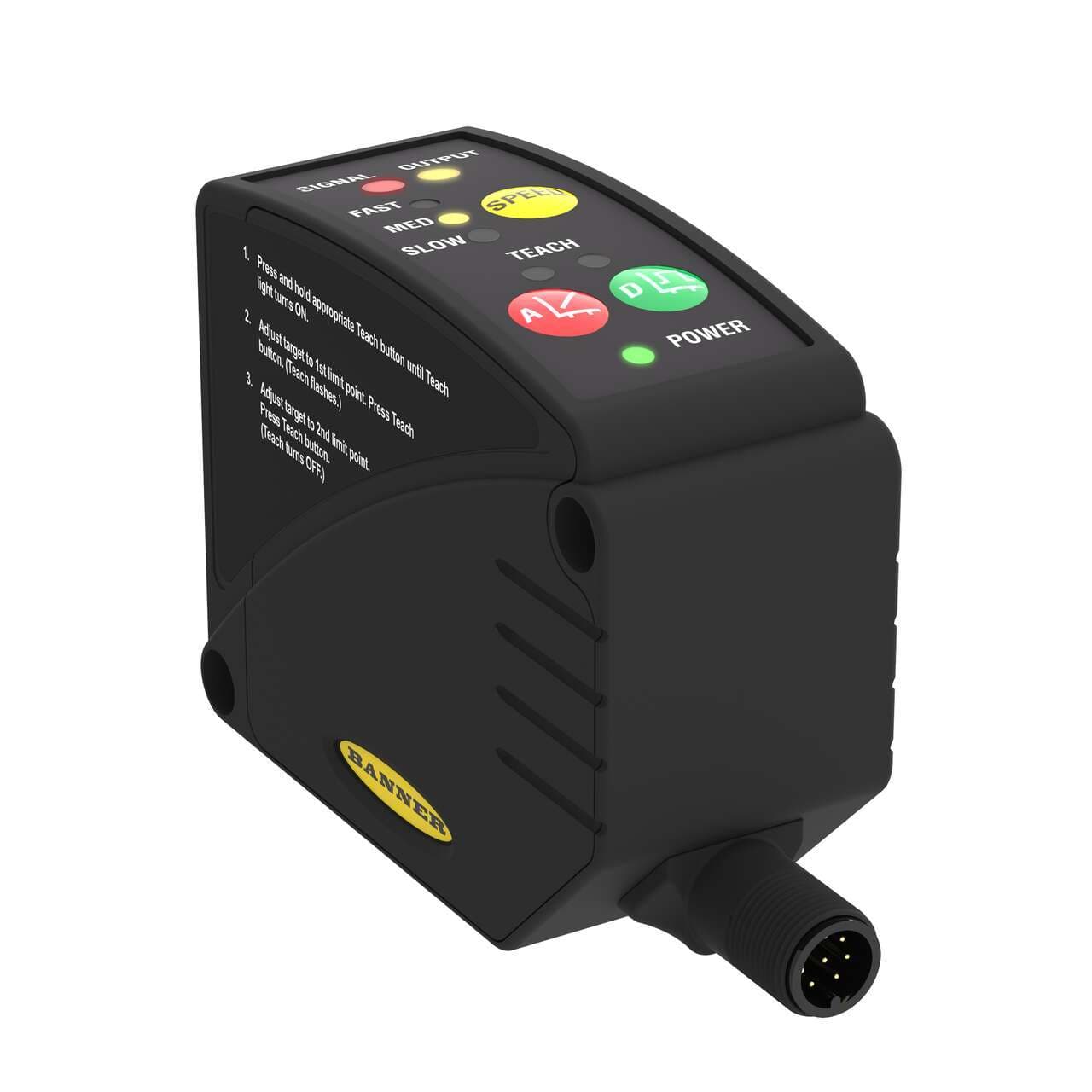

LT3NUQ Banner Optical Sensors

Product Details

• Weight
  190.50864 g
• Country Of Origin
  US
• Wireless
  No
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Typical Laser Lifetime (Hours)
  75000
• Power/Current Consumption (exclusive of load)
  108 mA max @ 24 V dc
• Max Off-state Leakage Current (µA)
  5
• Max Ambient Light (Lux)
  5000
Laser Control
Yes
Discrete Output Hysteresis (mm)
3
Minimum Window Size (mm)
20
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Color Sensitivity (Typical)
90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
Analog Linearity (mm)
+/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m
Max Operating Temperature (°C)
50
Spot Size (@ Reference Distance)
6 mm
Minimum Response Time (ms)
1
Window Material
Acrylic
Warm-up Time (minutes)
30
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
NEMA Rating
NEMA 6
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Adjustments
Push Button; Remote Teach
Max Discrete (Switched) Output (mA)
100
Discrete (Switched) Outputs
1 NPN
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Number of Pins
8
Temperature Effect (mm/°C)
2 mm/°C
Sensing Beam Wavelength (nm)
658
Power Supply
12-24 V dc
Delay at Power-up (ms)
1000
Minimum Sensing Distance (mm)
300
Quick Disconnect Type
M12 (Euro)
Indicator
LED(s)
Analog Output Configuration
0-10 V dc
Max Sensing Distance (mm)
5000
Connection
Integral QD
Analog Resolution/Discrete Repeatability
1 to 1.25 at slow response speed
Input/Output
Analog & Discrete
Laser Classification
Class 2
Housing Style
Rectangular
Sensing Mode (General)
Proximity
Primary Housing Material
ABS
Device Type
Sensor
Sensing Mode (Detailed)
Time of Flight
PC Configurable
No
Max Measurement Range
>1 m - <=20 m
Power
DC
Sensing Beam
Visible Red Laser
Main function
Sensor (Distance)
Functions
Class 2 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
Light Color
Visible red
Analog outputs
1 x analog output (0-10Vdc)
Wavelength
658 nm
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-24Vdc
Product series / family name
L-GAGE series
Shape
Rectangular
Material
ABS housing Acrylic window
Sub-range name
LT3
Design
diffuse time-of-flight system
Connection type
Pre-equipped with 8-pin Euro-style M12 connector
Sensing distance
30cm...5m
Degree of protection
IP67 NEMA 6
Order code / Manufacturer SKU
65504
Digital outputs
1 x digital output (NPN transistor)
Ambient air temperature for operation
+50 °C
Protection functions
Short-circuit
