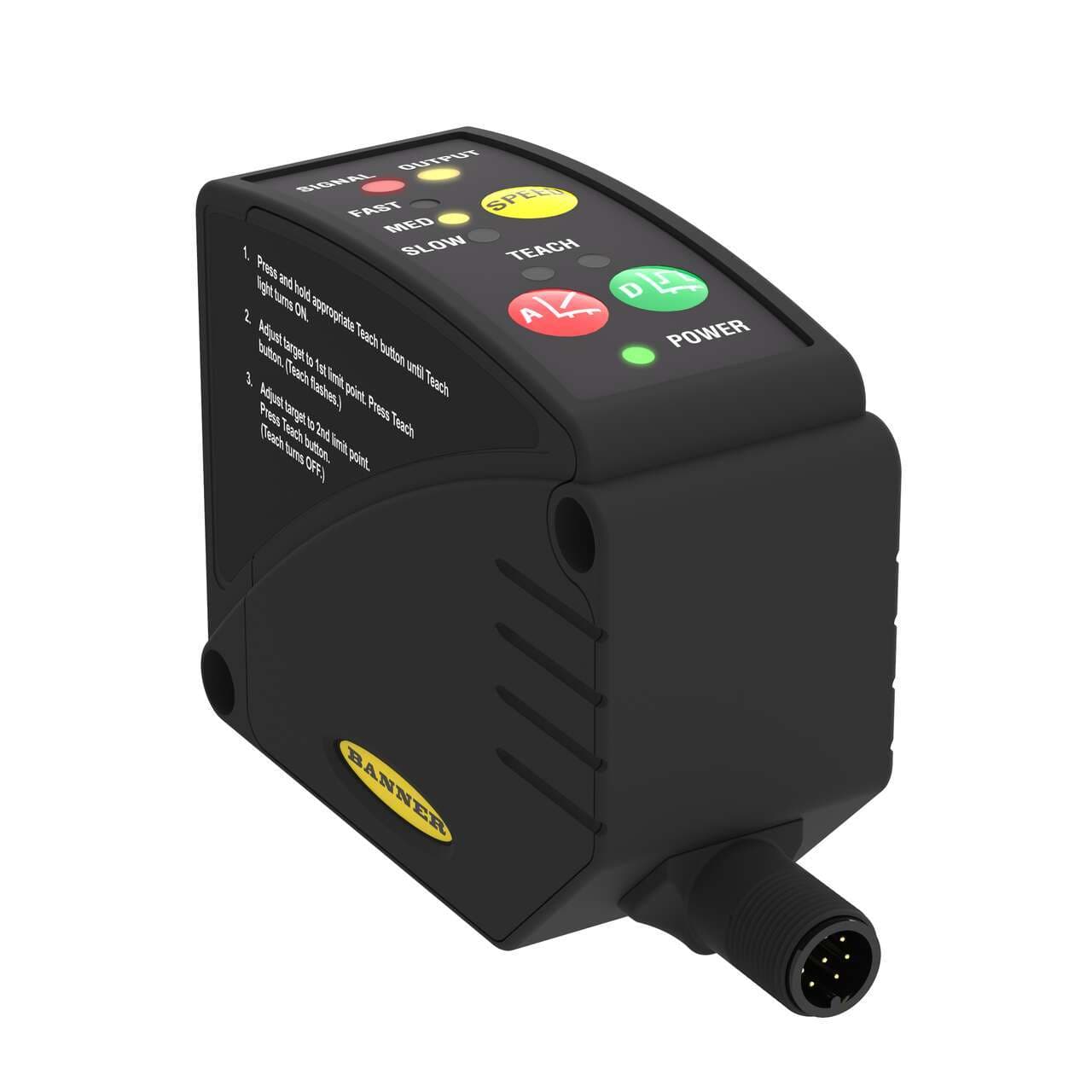

LT3NIQ Banner Optical Sensors

Product Details

• Weight
  190.50864 g
• Country Of Origin
  US
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• Wireless
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• IO Link
  No
• Feature: Timing (Hold/Delay)
  No
• Common Ethernet Protocol
  No
• Color Sensitivity (Typical)
  90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
• Feature: Chemical Resistant
  No
• Typical Laser Lifetime (Hours)
  75000
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  108 mA max @ 24 V dc
• Max Off-state Leakage Current (µA)
  5
Max Ambient Light (Lux)
5000
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Laser Control
Yes
Discrete Output Hysteresis (mm)
3
Minimum Window Size (mm)
20
Spot Size (@ Reference Distance)
6 mm
Analog Linearity (mm)
+/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Minimum Response Time (ms)
1
Warm-up Time (minutes)
30
Window Material
Acrylic
Max Operating Temperature (°C)
50
NEMA Rating
NEMA 6
Output Protection
Protected against short circuit conditions
IP Rating
IP67
Discrete (Switched) Outputs
1 NPN
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Temperature Effect (mm/°C)
2 mm/°C
Number of Pins
8
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Max Discrete (Switched) Output (mA)
100
Sensing Beam Wavelength (nm)
658
Adjustments
Push Button; Remote Teach
Power Supply
12-24 V dc
Delay at Power-up (ms)
1000
Max Sensing Distance (mm)
5000
Analog Resolution/Discrete Repeatability
1 to 1.25 at slow response speed
Quick Disconnect Type
M12 (Euro)
Minimum Sensing Distance (mm)
300
Analog Output Configuration
4-20 mA
Input/Output
Analog & Discrete
Connection
Integral QD
Indicator
LED(s)
Laser Classification
Class 2
Sensing Mode (Detailed)
Time of Flight
Sensing Mode (General)
Proximity
Housing Style
Rectangular
Max Measurement Range
>1 m - <=20 m
Power
DC
PC Configurable
No
Device Type
Sensor
Primary Housing Material
ABS
Sensing Beam
Visible Red Laser
Primary brand
Banner Engineering
Sub-range name
LT3
Sensing distance
30cm...5m
Light Color
Visible red
Design
diffuse time-of-flight system
Shape
Rectangular
Product series / family name
L-GAGE series
Functions
Class 2 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
Digital outputs
1 x digital output (NPN transistor)
Material
ABS housing Acrylic window
Protection functions
Short-circuit
Wavelength
658 nm
Order code / Manufacturer SKU
65510
Main function
Sensor (Distance)
Supply voltage (DC)
12Vdc-24Vdc
Connection type
Pre-equipped with 8-pin Euro-style M12 connector
Ambient air temperature for operation
+50 °C
Analog outputs
1 x analog output (4-20mA)
Degree of protection
IP67 NEMA 6
